2G-2C.0.8.F

  • 2x COMBO port (SFP/RJ45)
  • 8x Fast ethernet port with PoE, max. 95 W per port
  • Support UPOE, POH, 802.3af/at/bt, max. 95W per port
  • 2x RS485 / Modbus-RTU
  • 2x digital/alarm input
  • 1x programmable relay output
  • 2 independent power inputs
  • Redundant topology LAN-RING, RSTP
  • Event management with support for: HTTP/ONVIF client, E-mail, IP Watchdogs, ETH events, TCP, Modbus, DIO, balanced loops...
  • VLAN, QoS, SNMP, SMTP, SNTP, IGMP, RSTP(-M), LLDP, 802.1X
  • Overvoltage protection up to 1000A (8/20μs)
  • Operating temperature from -40 °C to +75 °C

LAN-RING industrial managed PoE++ switches feature Ethernet ports, COMBO ports as well as RS485 bus, digital/alarm inputs and relay outputs. Event management, which is part of the advanced management, makes these switches the ideal solution for applications with high demands on security and flexibility of the devices used. The switches support redundant MESH/RING topologies with up to 30 ms link recovery. Thanks to the highly resilient hardware, the switches can be deployed in a wide operating temperature range from -40 to 75 °C with a maximum PoE power of 270 W. All inputs and outputs are equipped with surge protectors, making the switches suitable for use in very harsh environments.

The switch is certified according to EN 50131-1 as a system bus transmission path for Asset(RS485), Galaxy(RS485) and MB-Secure (BUS-2). The devices are developed and manufactured in the EU and comply with NDAA requirements.

Models

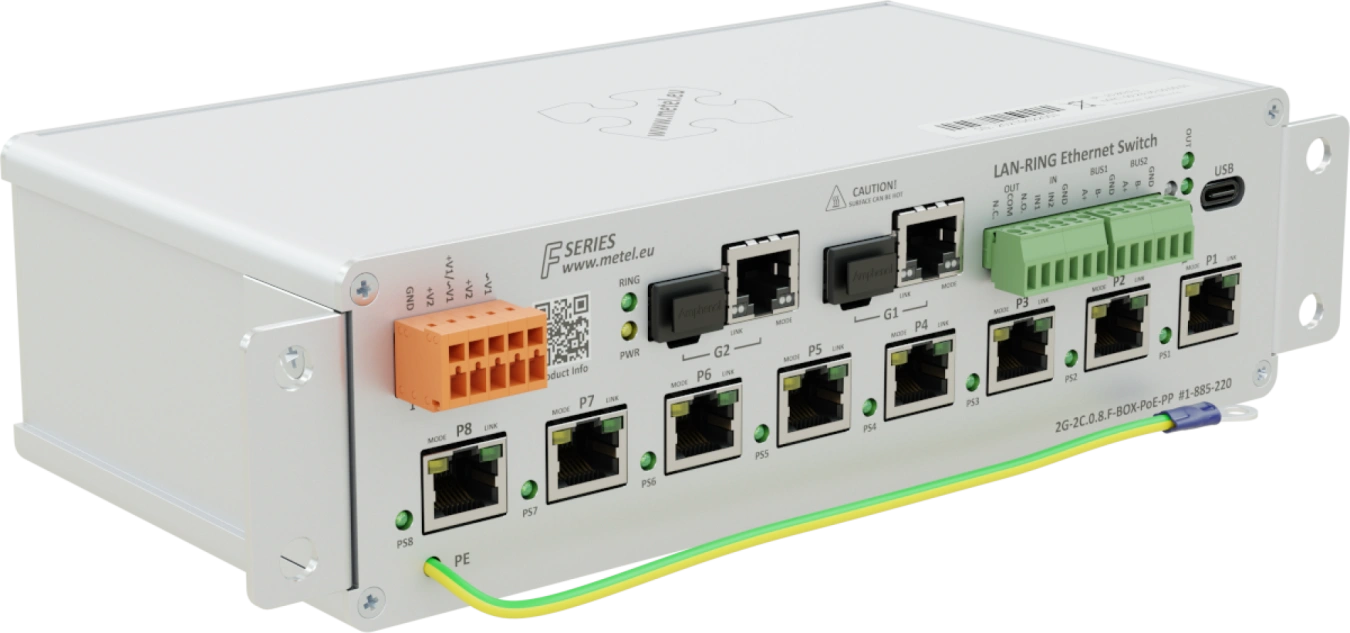

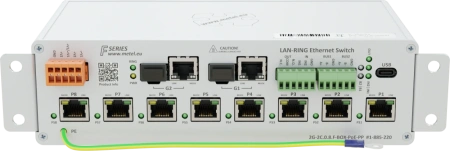

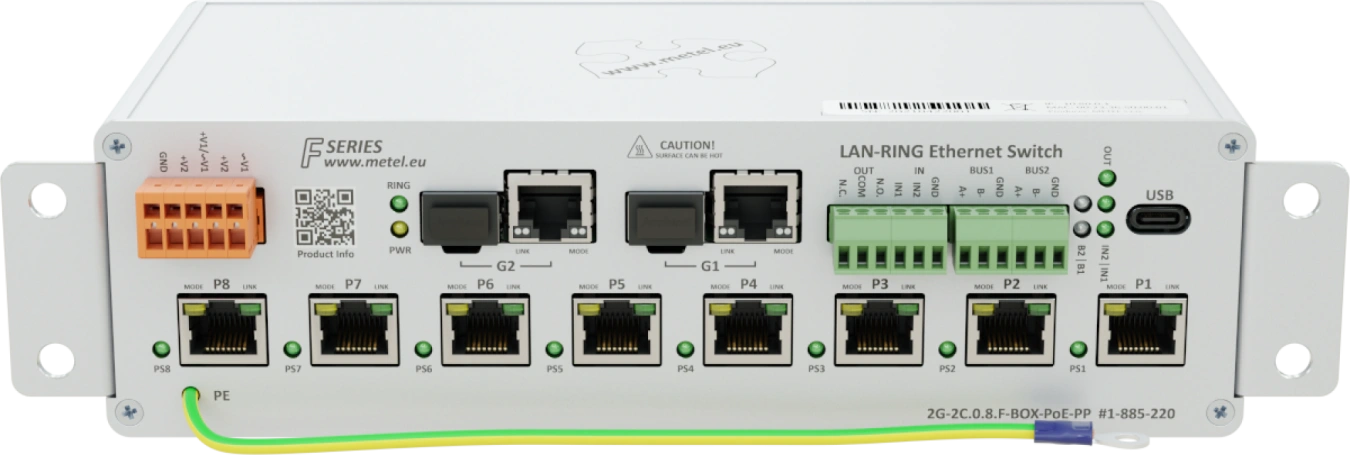

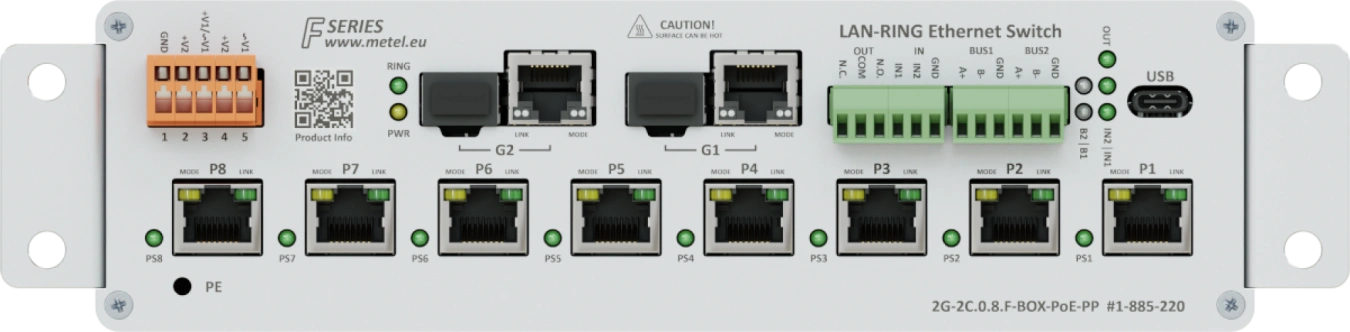

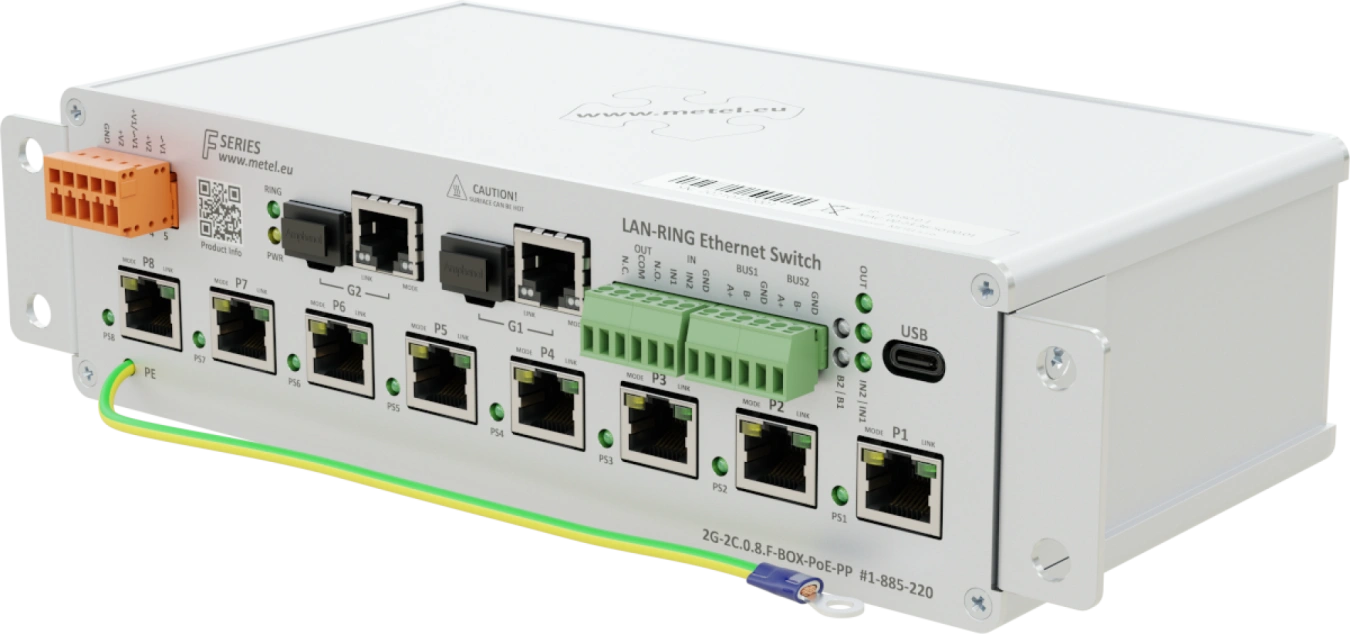

2G-2C.0.8.F-BOX-PoE-PP

Industrial switch for circular topology with 2x SFP slot, 8x Fast Ethernet port with PoE, support UPOE, POH, 802.3af/at/bt, PoE limits: max. 270 W for the whole switch / 170 W for ports 1-4 or 5-8 and max. Total PoE power consumption across all ports is 270W, 1000A FE port surge protection, 2x DI with balanced loop support, 1x programmable NO/NC RELAY output, 2x RS485 / 1x RS422 BUS (support MIOS modules, TCP server, UDP mode), USB port for local management, redundant power input, surge protection on all inputs, EVENT MANAGEMENT: SMTP, TCP events, ETH events, HTTP client (camera control), 8x IPWatchdog.... , operating temperature -40...+75°C, VLAN, QoS, SNMP, SMTP, SNTP, IGMPv1/2, RSTP, LLDP, 802.1X, installation on flat surface or DIN35, 12VDC/24VDC/48VDC/12VAC/24VAC/56VDC

Order code: 1-885-220

Availability: Full-scale production

Specifications

Technical parameters
COMBO PORT
Count2
SFP slot100/1000 BASE-LX, BASE-BX
RJ4510/100/1000 BASE-T
FAST ETHERNET
Count8
Supported formats10BaseT, 100BaseTx
Surge protection1000 A waveform 8/20 μs
ConnectorRJ45
RS485
Count2
Speedmax. 115200 bps
Surge protection30 A waveform 8/20 μs
DI/BI INPUT
Count2
Digital modeNC / NO
Alarm modeAnalog 0 - 30 kΩ for Balanced Loops
RELAY OUTPUT
Count1
Type of contactSwitching
Max. Load62.5 VA (30 W) / 1 A / 60 V (resistive load)
POWER
Count2
ConnectorWAGO 734-205
Without PoE10 - 30 VAC / 10 - 60 VDC
With PoE up to 15.4 W48 - 57 VDC
With PoE+ up to 30 W52 - 57 VDC
With PoE++ up to 95 W53 - 57 VDC
Power ConsumptionMax. 8 W without PoE
Surge protection1500 W waveform 10/1000 μs
PoE
Number of PoE ports8
Max. power / port95 W
Maximum total power consumption of PoE270 W
StandardIEEE 802.3af/at/bt, UPOE, POH
ENVIRONMENT
Operating temperature-40...+75 °C
Range of storage-40...+75 °C
HumidityMax. 100% (non-condensing)
MECHANICS
Weight1,1 kg
Dimensions - h / w / d60 x 255 x 113 mm
IP protectionIP 30
CoolingPassive
SECURITY
Secure BootingThe code is stored and executed directly on SoC, therefore it is not externally accessible.
Firmware UpgradeThe FW image is encrypted and signed using AES-256, RSA-4096, SHA-512
SNMPSNMPv3 - SHA-512 / AES-256 (recommended)
SNMPv2c (obsolete)
GUI ApplicationDigitally signed installation file using SHA-256, RSA 4096
IEEE 802.1X-2004RFC3748 - EAP Packet Format, Authenticator PAE, Supplicant PAE
MANAGEMENT
ApplicationSIMULand.v4
SNMPv3Encrypted
SWITCH
MAC address8 K
Max. frame size1632 B
Packet buffer memory1 Mbit
SwitchingStore-and-forward, full wire-speed, non-blocking on all ports
Switching capacity5.6 Gbps
Standards and protocols, EMC and safety
EMC and safety
EN 55032EMC of multimedia devices - emission requirements
EN 55035EMC of multimedia devices - immunity requirements
EN 60950-1Security requirements for information technology equipment
EN IEC 63000The Assessment Of Electrical And Electronic Products With Respect To The ROHS
EN 61000-4-28 kVAir discharge
EN 61000-4-26 kVContact discharge
EN 61000-4-320 V/mRadiated RF field
EN 61000-4-42 kVBursty
EN 61000-4-52 kVShock pulses
EN 61000-4-610 VResistance to HF field induced line disturbances
EN 61000-4-830 A/mMagnetic field
EN 61000-4-11Short-term power dips and outages
EN 61000-6-4Emissions - industrial environment
EN 50131-14Alarm systems - system requirements
EN 50131-34Alarm systems - control panels
EN 50121-4 ed.4Railway applications - EMC Emission and immunity of signalling and communication equipment
EN 61643-21Surge protectors in telecommunication and signalling networks
Standards and protocols
IEEE 802.3i10BASE-T 10 Mbit/s (1.25 MB/s) over twisted pair IEEE 802.3u for 100BaseT(X) and 100BaseFX
EEE 802.3u100BASE-TX, 100BASE-T4, 100BASE-FX Fast Ethernet at 100 Mbit/s (12.5 MB/s) with autonegotiation
IEEE 802.3ab1000BASE-T Gbit/s ethernet over twisted pair at 1 Gbit/s (125 MB/s)
IEEE 802.3z1000BASE-X Gbit/s ethernet over optical fiber at 1 Gbit/s (125 MB/s)
IEEE 802.3acMax. frame size 1522 bytes (allow 802.1Q tag)
IEEE 802.3af/at/btPower over Ethernet up to 15.4 / 30 / 90W
POHPower Over HDBaseT (PoE up to 95W)
UPOEUniversal Power Over Ethernet (PoE up to 60W))
IEEE 802.3xFlow Control
IEEE 802.1pClass of Service
IEEE 802.1XPort-based Network Access Control (PNAC)
IEEE 802.1qVLAN tagging
Modbus TCP/RTUMaster / Slave
SNMP v2c/v3Simple Network Management Protocol
IGMP v1/v2Internet Group Management Protocols
SNTPSimple Network Time Protocol
SMTPSimple Mail Transfer Protocol
RSTPRapid Spanning Tree Protocol
LAN-RING.v1, v2Ring topology with a very short time reconfiguration of max. 30ms
ManagementGUI SIMULandv4 - USB C / Encrypted management via LAN

Package contents

  • Switch

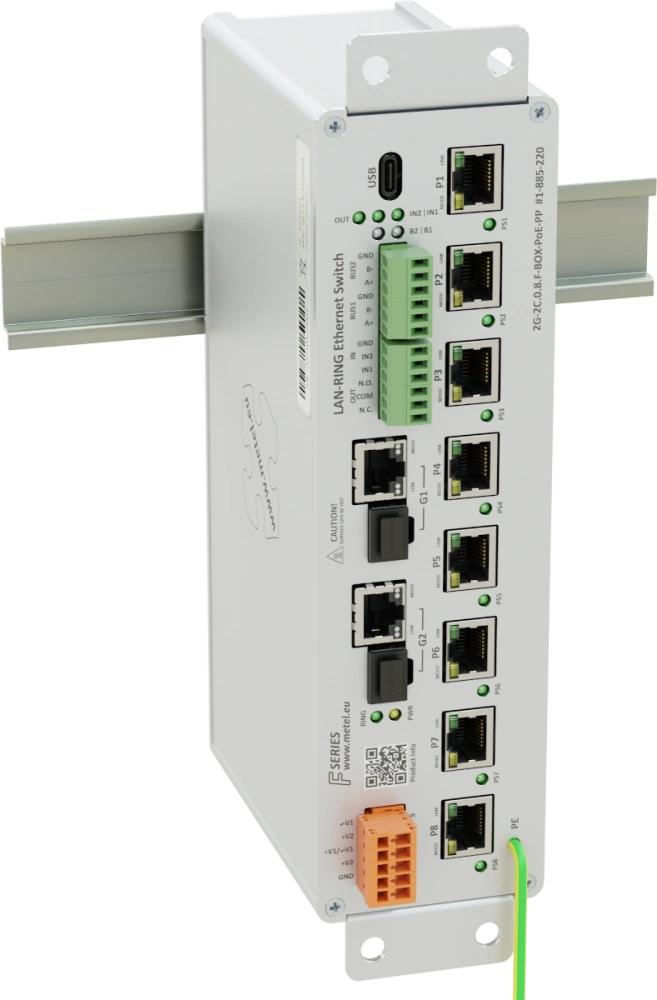

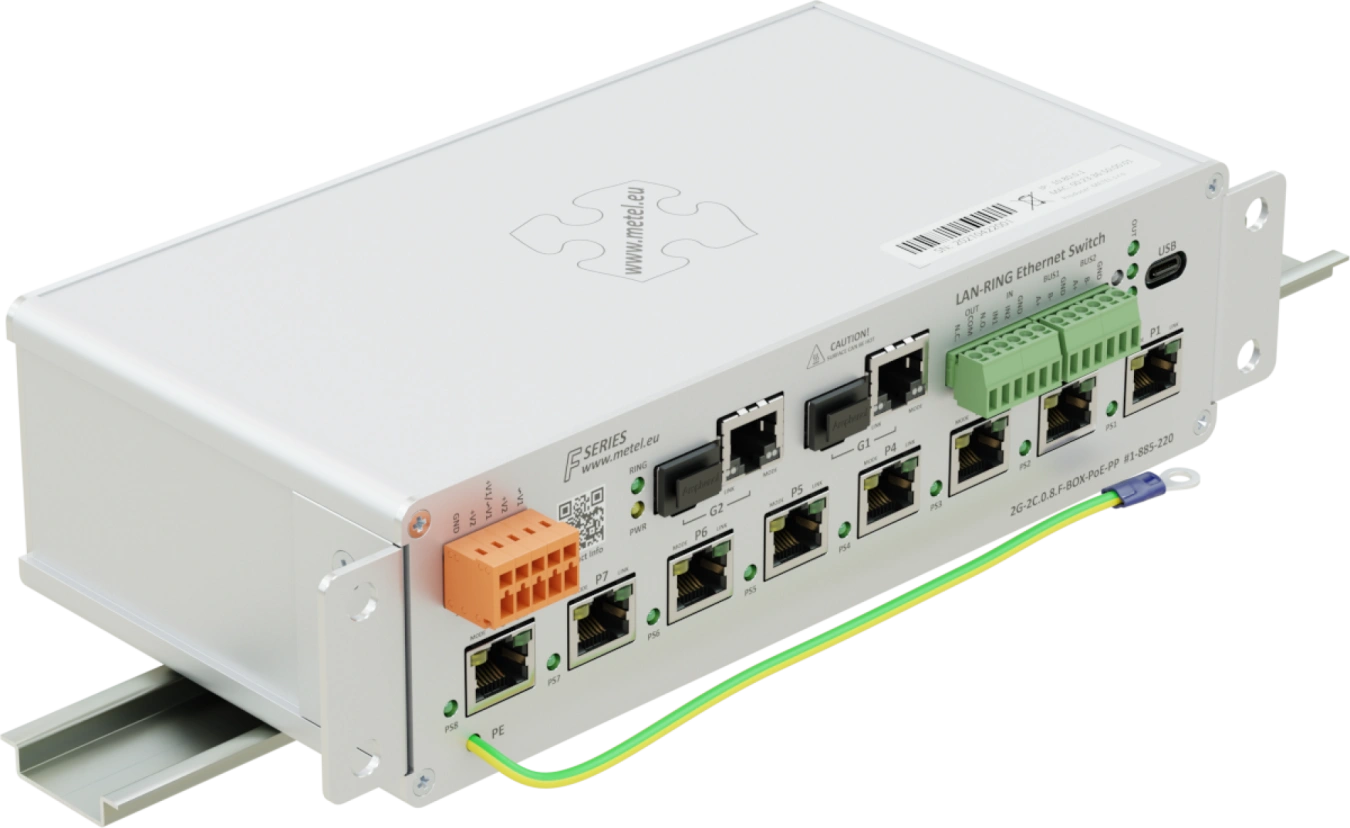

  • Mounting kit for mounting the switch on a DIN rail

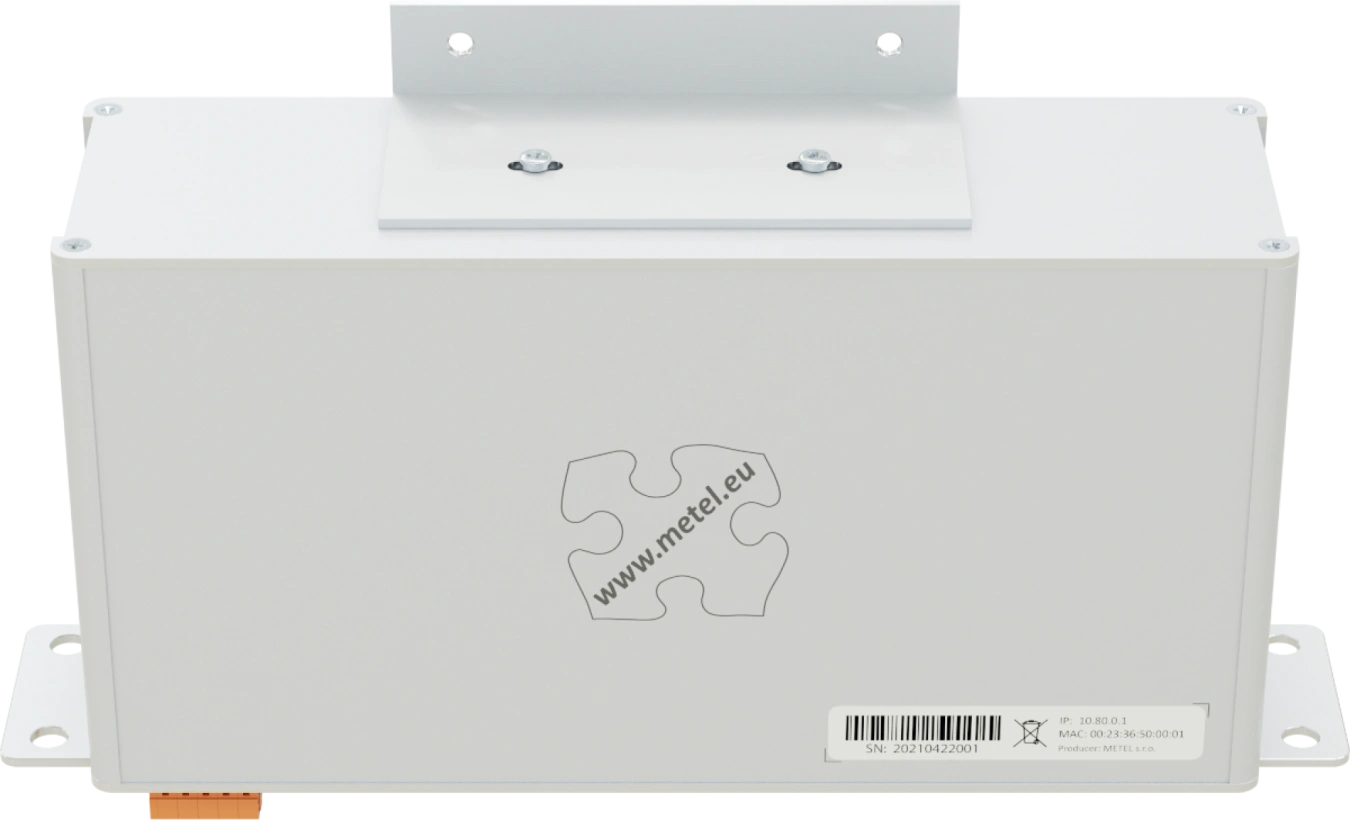

  • Mounting kit for mounting the switch on a flat surface
  • Brackets for 10" switchboards
  • Installation manual

Accessories

BX-1000-20-Wx-L

SFP modules SC/WDM 1000BASE-BX (2G) 20/2km SM/MM

BX-100-20-Wx-L

SFP SC/WDM 100BASE-BX (200M) 20/5km SM/MM modules

M-xDR

Industrial power supplies.

FAQ

What are the default passwords?

SNMPv3 (read and write)
Username:"master"
Authentication algorithm: SHA1
Authentication password:"mastermaster"
Private algorithm: AES128
Private password:"mastermaster"

SNMPv3 (read only)
Username:"user"
Authentication algorithm: SHA1
Authentication password:"useruser"
Private algorithm: AES128
Private password:"useruser"

SNMPv2c (read and write)
Community:"write"

SNMPv2c (read only)
Community:"read"

How can I restore the switch to factory settings?

For security reasons, there is no reset button on the switches. If you need to reset the switch to factory settings, you will need a USB C cable (B - older models) and SIMULand.v4 configuration software.

Procedure

Click USB in the Conectivity menu, click Reset (Factory Default) in the following window and reset the switch to factory settings.

Note: For Windows 8.1 and earlier operating systems, you may need to install the USB driver.

Will the IP address, mask and gateway change after a factory reset?

Yes. A USB factory reset will restore the device to factory settings.

Default parameters
IP address - printed on the switch label
Mask - 255.0.0.0
Gateway - 10.1.0.1

Where can I find the latest firmware version for the F series switch?

In Simuland.v4, which always contains the latest firmware available for the switch.

After upgrading the switch, the switch will be set to its default settings, except for the IP, mask, gateway and ring.



Will the configuration of the F-series switch be preserved after the FW upgrade?

Not really. After the switch upgrade, only the settings, IP, mask, gateway and ring will be preserved. The rest of the configuration will be default.

What do the W4 and W5 markings on SFP modules mean?

For modules with bidirectionaldata transmission over a singlefiber (wave multiplex), it is necessary to connect the optical modules correctlyto each other. Thismeans that, for example, inMETELWDM modules,the modulemarkedW4can only be interconnected with the modulemarkedW5. It is not possible to connect W4 with W4 or W5 with W5.

BX-100(0)-20-Wx-L
WavelengthsW4: TX:1310 / RX:1550 nm
WavelengthsW5: TX:1550 / RX:1310 nm

BX-10G-20-Wx
WavelengthsW4: TX:1270 / RX:1330 nm
Wavelengths W5: TX:1330 / RX:1270 nm

Does it affect how I insert SFP modules into SFP slots in the switch?

YES, ifyouare using the LAN-RING protocol. In terms of the LAN-RING protocol, the port with thelowerindex is thetransmitportand the port with thehigherindex is thereceiveport.Therefore,the rulemustbefollowedthat the optics will be connected from thelowerindex portto thehigherindex port.Therefore,inallswitchesin a ring,SFP modulesmustbeinserted in thesameway, e.g., an SFP with theW4 tag at the endwill be inserted into slot G1and anSFP with theW5 tag will be inserted into slot G2.

NO, ifyoudisable the LAN-RING protocol oruse the RSTP protocol. Inthiscase,it does not matter how the SFPs are inserted.

Do the SFP slots of LAN-RING switches also support SFP modules with RJ45 connectors?

Yes, they have support.

For example, we can recommend the following tested types:
MICROTIK S-RJ01
BEL SFP-1GBT-05

RJ45 SFP modules are not supported in the 2G-2C.8S.0.0.F(G)-BOX switch on ports P1-P8.

What encryption and authentication methods are supported on the switch for SNMPv3?

SNMPv3-enabled switches have SHA1 and AES128 methods enabled by default. You can change to SHA512 and AES256c in the configuration.

How to configure the RS485 bus for communication with HUB Pro?

The HUB Pro unit is connected to the RS485 bus of the METEL device (Switch, MiniLAN-4B2), which acts as a converter between the RS485 bus and the TCP/IP port (server). The additional software (client) then communicates with the HUB Pro via this port.

The TCP connection is established by the client, the first initialization must come from its side. The connection is then maintained automatically.

HUB Pro RS485 parameters (default):
Baud rate 9600b/s
Data bits 8
Stop bits 1
Parity None

Sample configuration:

What is the maximum recommended load for 20G/2G/200M optical ports?

The recommended line load is 75% of the total data throughput.

Can LAN-RING also be used as a bus system?

Yes, of course, this option is available for the LAN-RING system. Only in this case, we recommend disabling the ringing function in the switch configuration (None) or switching LAN-RING to Rapid Spanning Tree Protocol (RSTP-M).

Is the PoE function available from the default settings of the switch?

The PoE function is factory set to "disable". Therefore, individual ports to which cameras or PoE-enabled devices are connected must be enabled in the configuration. If PoE does not start even after activation, the switch allows you to enable the Ignore Detect feature.

Extending UTP/FTP to more than 100 m?

If the distance between the camera and the switch is longer than 100 m, we use a LAN-EXT solution. This is a device that can repeat the route of the link, even several times in a row.

LAN extenders

How to treat PoE camera freezes (IP Watchdog)

It is annoying to climb a pole and restart the camera or drive 100 km when the camera freezes. For this reason, we have added an IP Watchdog feature to the switches that monitors the camera address and automatically restarts PoE if communication is lost.

IP Watchdog is not only used to restart PoE, but can also monitor any IP address and in case of IP address failure, it can switch any contact in the LAN-RING network or trigger any other configured event.

How to set the input status transfer to the remote relay?

ETH-BUS - communication addresses

On the device with relay you set the receiving address e.g. 239.192.168.1 (multicast) and on the device with input you set the sending address 239.192.168.1.

In this way, the input status information is transmitted to the output device.

Create an event on the switch with input. Send the input status as an ETH event under ID#1.

Establish a receive event on the switch with a relay. The response to the ETH event with ID#1 is to turn the relay on/off.

Is the 150A (8/20µs) surge protection level sufficient for outdoor applications?

To answer this question, it is useful to refer to EN62305-1 (Lightning protection, Part 1 - General principles).

Switches, connected metallic cabling and equipment (cameras) should be located in the LPZ0B zone, i.e. in a zone protected by a lightning arrester against direct lightning strikes.

Table E.2 gives the expected utility current for LPL I-II (Lightning Protection Levels) under indirect lightning strike up to 100A (8/20µs) and for LPL (III-IV) up to 50A (8/20µs).

However, the standard recommends that magnetic cable shielding be included in the protection of electronic systems.

Therefore, if the switch will be in our OH65 steel enclosure and routed through the inside of a steel pole or steel protector (all under the arrester and grounded), 150A (8/20µs) is sufficient protection.

If any of the above precautions are not followed, switches with 1000A (8/20µs) protection on the FE ports must be used.

The most important thing is to make every effort to prevent direct lightning strikes, where the standard assumes a current of up to 2000A (10/350µs). Such a current is a major problem for the RJ45 connectors themselves. In our experience, the maximum level of current that RJ45 contacts can withstand is somewhere between 1-2kA (8/20µs).

Different RSTP protocol behaviour

I have observed different RSTP behavior of your switch compared to a competing switch in the following situation. There are two switches in the network connected to each other by a fiber optic link. Egress filtering is enabled on one of these devices (Egress filtering: No unknown destination address). However, only one switch is available at this time because the link is blocked by the RSTP protocol. However, if I replace the unavailable switch with a competing device with a similar configuration, both switches are available.

Egress filtering causes BPDU frames to be sent only in one direction because the other direction is filtered. This causes the first switch to know about the second, but the second switch does not know about the first. This condition is handled by the so-called "contention mechanism". This was incorporated into the 802.1D-2004 standard and solves the problem you mentioned by blocking the link to prevent loops. Our implementation of the RSTP protocol complies with this standard. Other vendors may have a different implementation of the RSTP protocol based on an older standard that did not include a "dispute mechanism".

Is it possible to disable a switch port based on input from a remote device?

Yes, the switch allows you to respond to the input state of a remote device by data shutting down the port. PoE remains active, so there is no need to wait for camera initialization on recovery, it is available immediately.

Is it possible to use multiple data buses on one ring?

The number of transmitted data buses is limited only by the number of physical connection points. The buses are separated from each other by internal switch addressing. Each switch has so-called receiving and transmitting addresses through which it communicates with other switches. The configuration of these addresses is up to the user. In general, the number of buses is not limited, just beware of the response time, which in the LAN-RING system is 3.6 ms, and bus congestion. If you need to carry more buses in one location with one switch, miniLAN-4B2 converters are designed to expand the number of buses.
