Event management

Advanced IP WatchdogsEthernet eventsCamera controlTCP eventsPoE events

The LAN-RING industrial switch software package includes the Extension suite, a set of advanced tools for managing available I/O and RS-485 buses. Users can configure up to 64 automatic actions here. A major advantage is the switches’ ability to communicate directly with the IPLOG PLC. This runs a control programme written in FBD, LD, ST or IL languages in accordance with the IEC 61131-3 standard.

Thanks to these capabilities, the LAN-RING system offers significantly greater utility. Users can precisely tailor the device’s functionality to the specific requirements of a particular project and effectively optimise the operation of the entire network.

Available inputs and outputs for automation

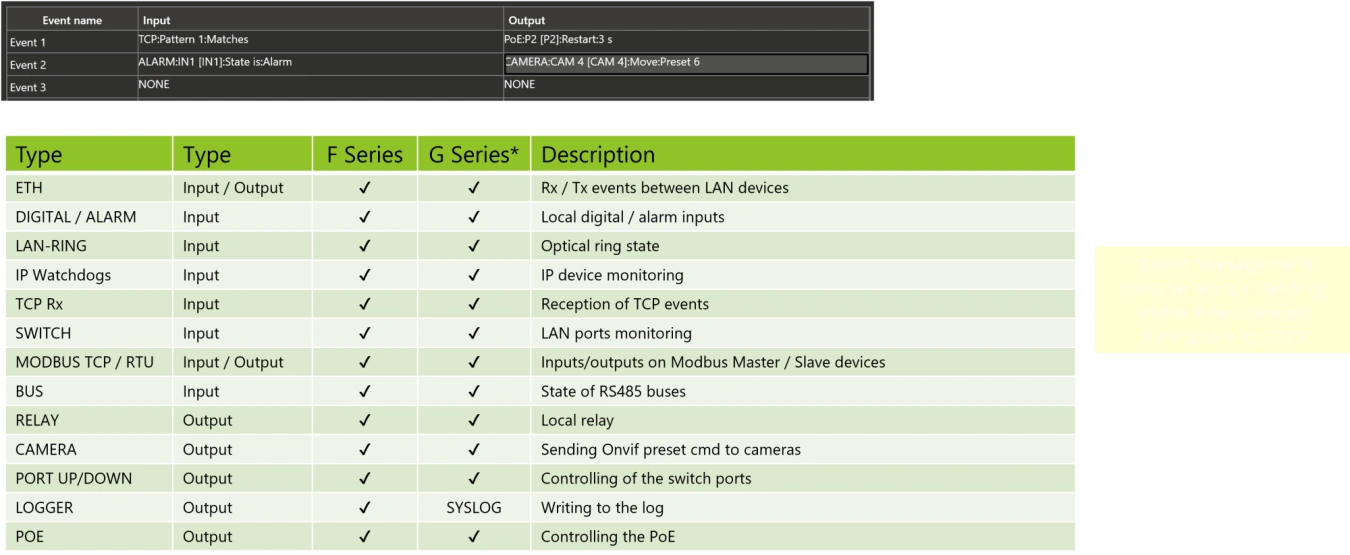

The table below provides an overview of the available hardware and software inputs and outputs (as at 05/2026).

Module Type F Series G Series* Description
ETH Input/Output Yes Yes Rx / Tx events between LAN devices
Digital/Alarm Input Yes Yes Digital / alarm inputs
LAN-RING Input Yes Yes Optical ring status
IP Watchdogs Input Yes Yes IP device monitoring
TCP Rx Input Yes Yes Receipt of TCP events
Switch Input Yes Yes Switch LAN ports
Modbus TCP/RTU Input/Output Yes Yes Inputs/outputs on Modbus Master/Slave devices
Bus Input Yes Yes RS485 bus status
Relay Output Yes Yes Relay output
Camera Output Yes Yes Control of cameras or other IP devices
Port Up/Down Output Yes Yes Switch port control
Logger Output Yes Syslog Logging
PoE Output Yes Yes PoE control

‌

*Importantsupport notice: We plan to gradually roll out support for configuring automatic actions on G switches throughout 2026. If you have any queries regarding the current implementation status for your specific model, please contact our technical support team by email at: support@metel.eu.

Examples of practical uses for automatic actions

The Extension menu allows you to easily configure automatic responses. In its simplest form, this involves a direct link between an input and an output. In practice, you can use the system, for example, to:

  • Enhancing security: Rotating a PTZ camera to a predefined position if a switchboard tamper is triggered or when motion is detected by a PIR sensor.

  • Network diagnostics: Signalling the connection or disconnection of an optical ring via a relay output.

  • Energy saving and power supply protection: Automatically switching off the PoE power supply if the charge level of the backup batteries falls below 30 per cent.

  • Integration with CCTV systems: Reception of TCP events generated by advanced video analysis within the camera and their subsequent mapping to a relay output.

  • Ensuring high availability (IP Watchdog): Automatic restart of the camera’s power supply should the device cease to respond to ARP queries.
