xDW-S-FAS-BOX
- Compatible with RS485 buses of LITES electrical fire alarm systems
- Digital modulation
- 1x SC/PC optical connector (CWDM)
- 2x RS485 or 1x RS422 up to 1Mbps
- 1x LOCK NO/NC relay
- Overvoltage protection
- Operating temperature from -40 °C to +75 °C
The xDW-S-FAS digital optical converters are compatible with the RS485 buses of LITES electrical fire alarm systems over both MM and SM optical fibers.
The devices are developed and manufactured in the EU and meet NDAA requirements.
Models

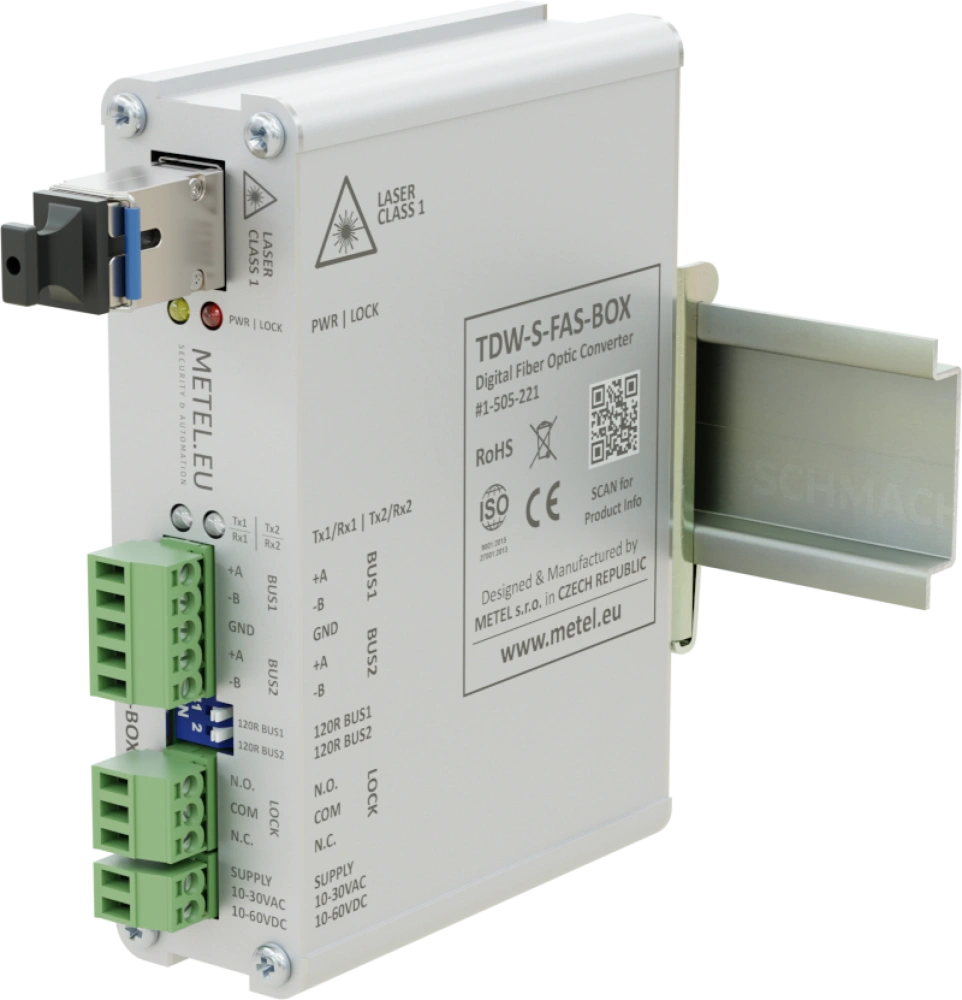

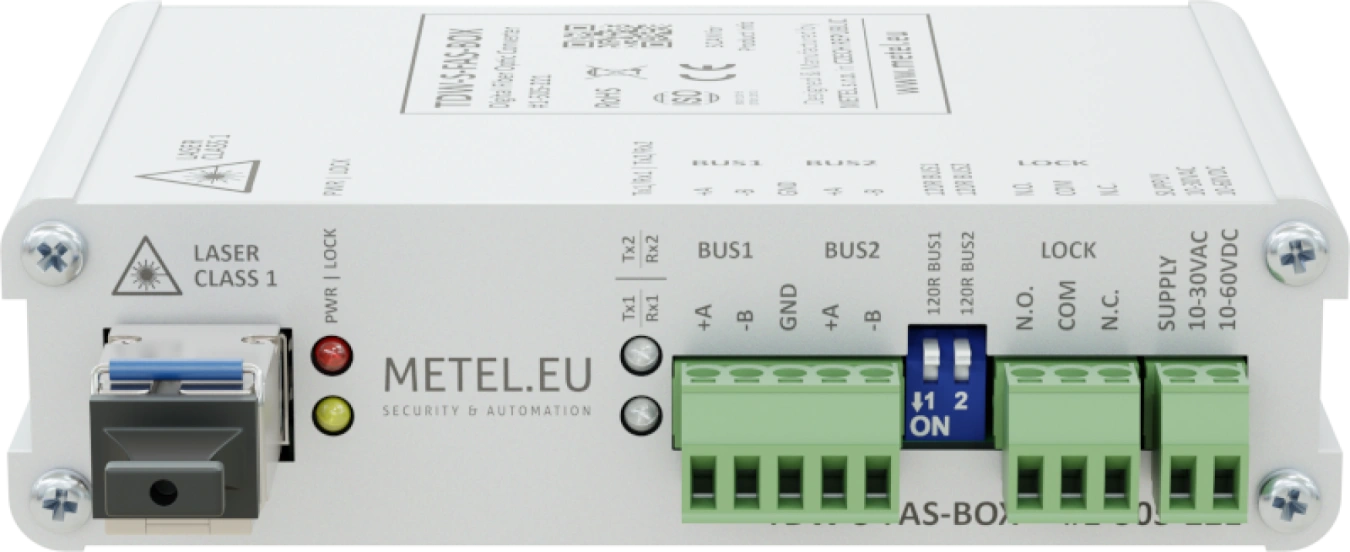

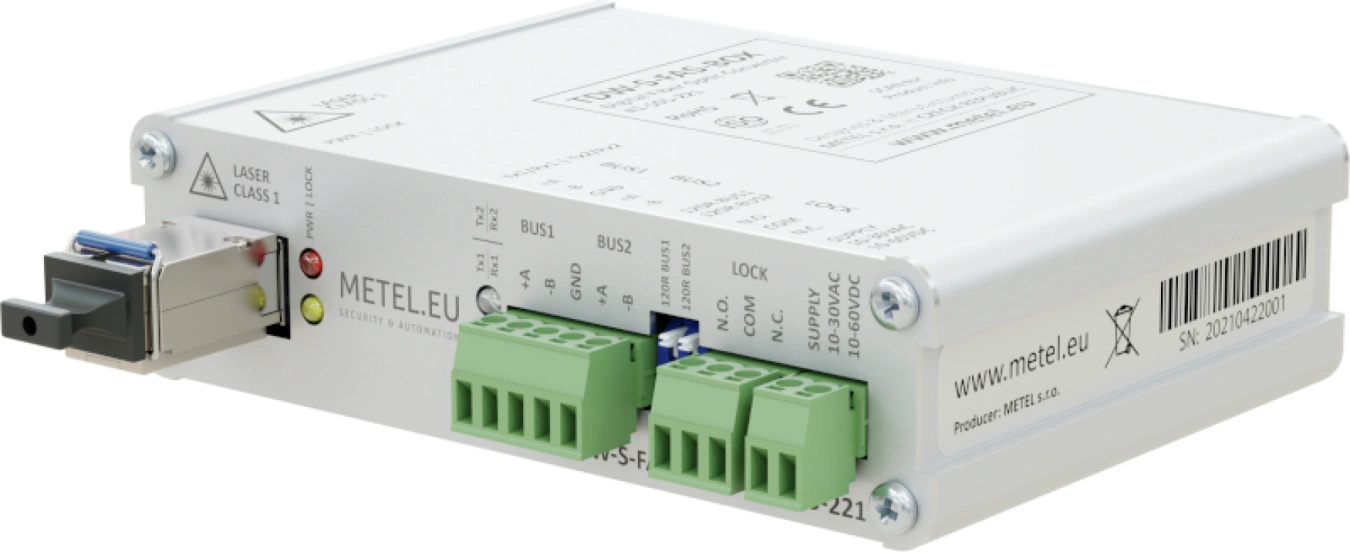

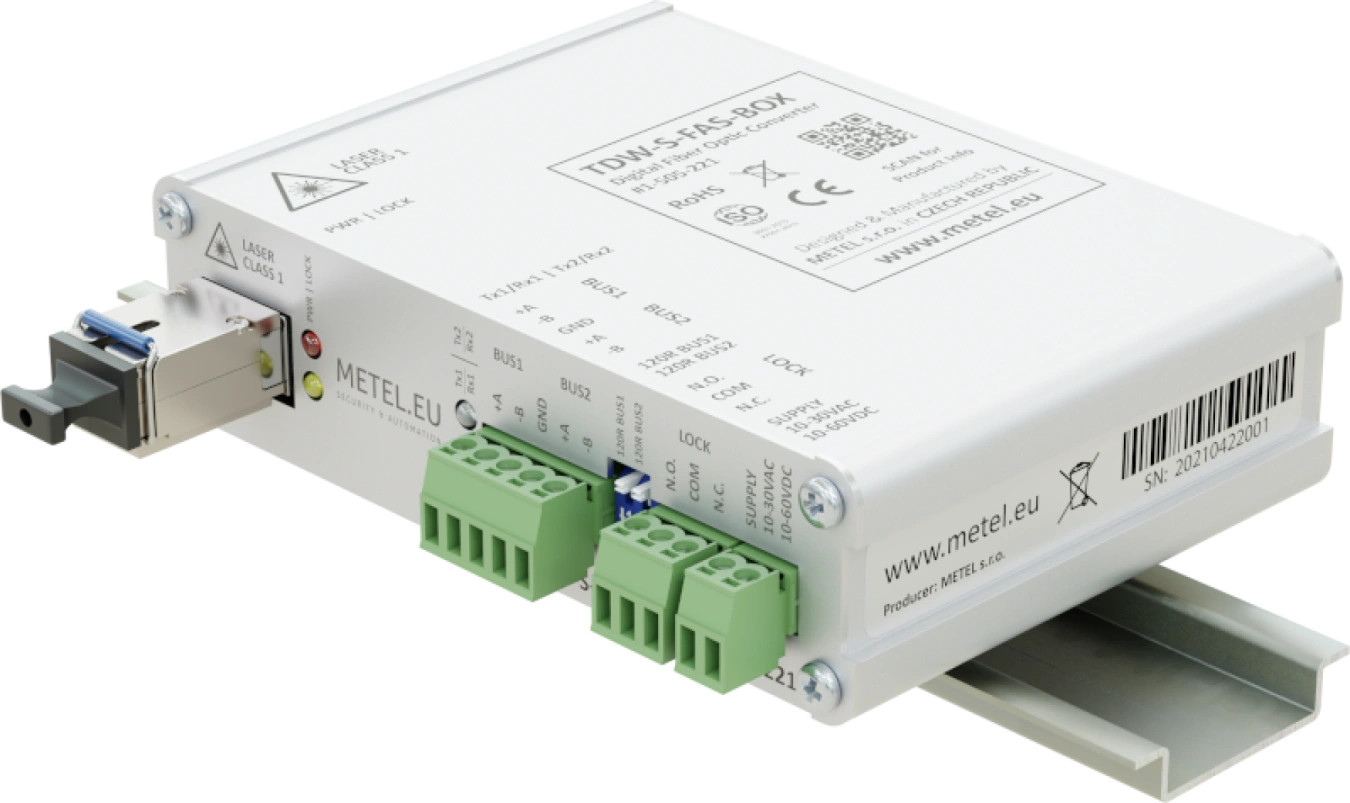

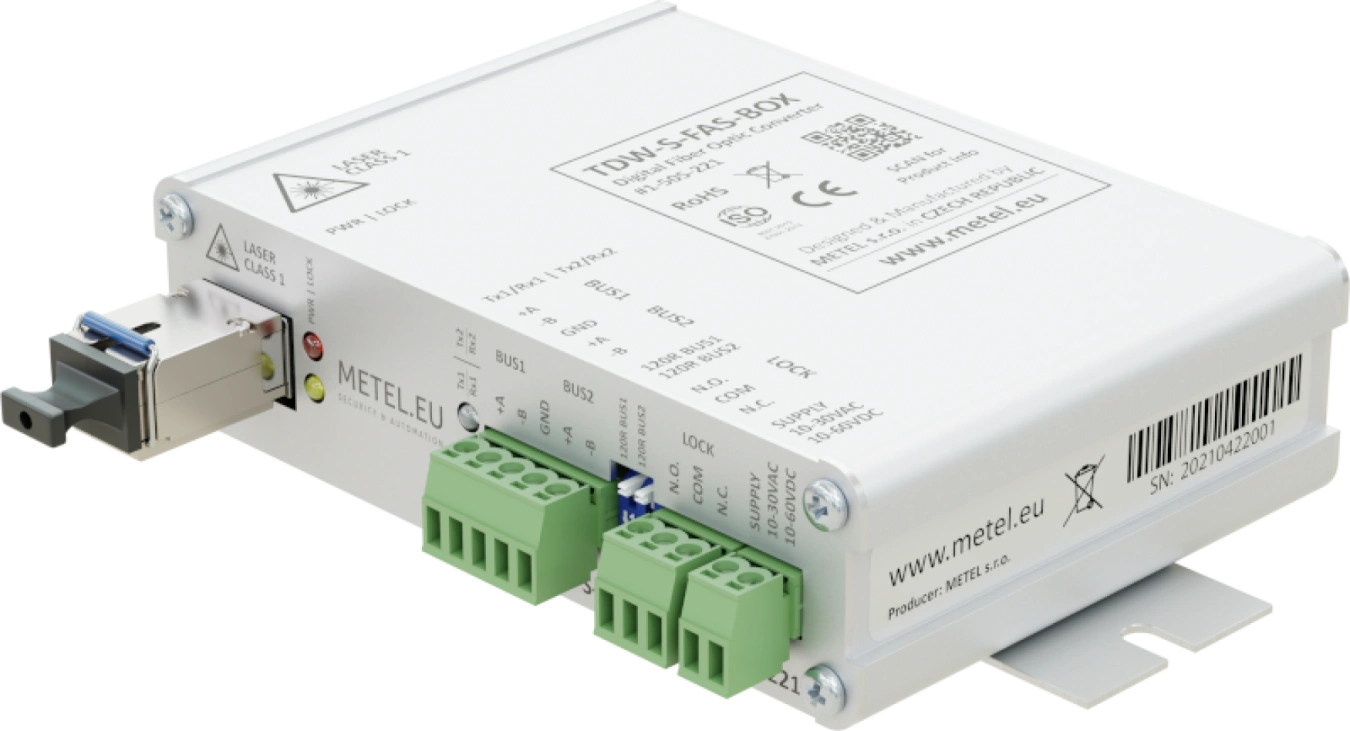

TDW-S-FAS-BOX
Industrial digital converter - 2xRS485 or 1xRS422 bus, 1x bidirectional contact and 1x LOCK relay for detection of optical fiber interruption, opposite device failure and power failure.
Order code: 1-505-221
Availability: -

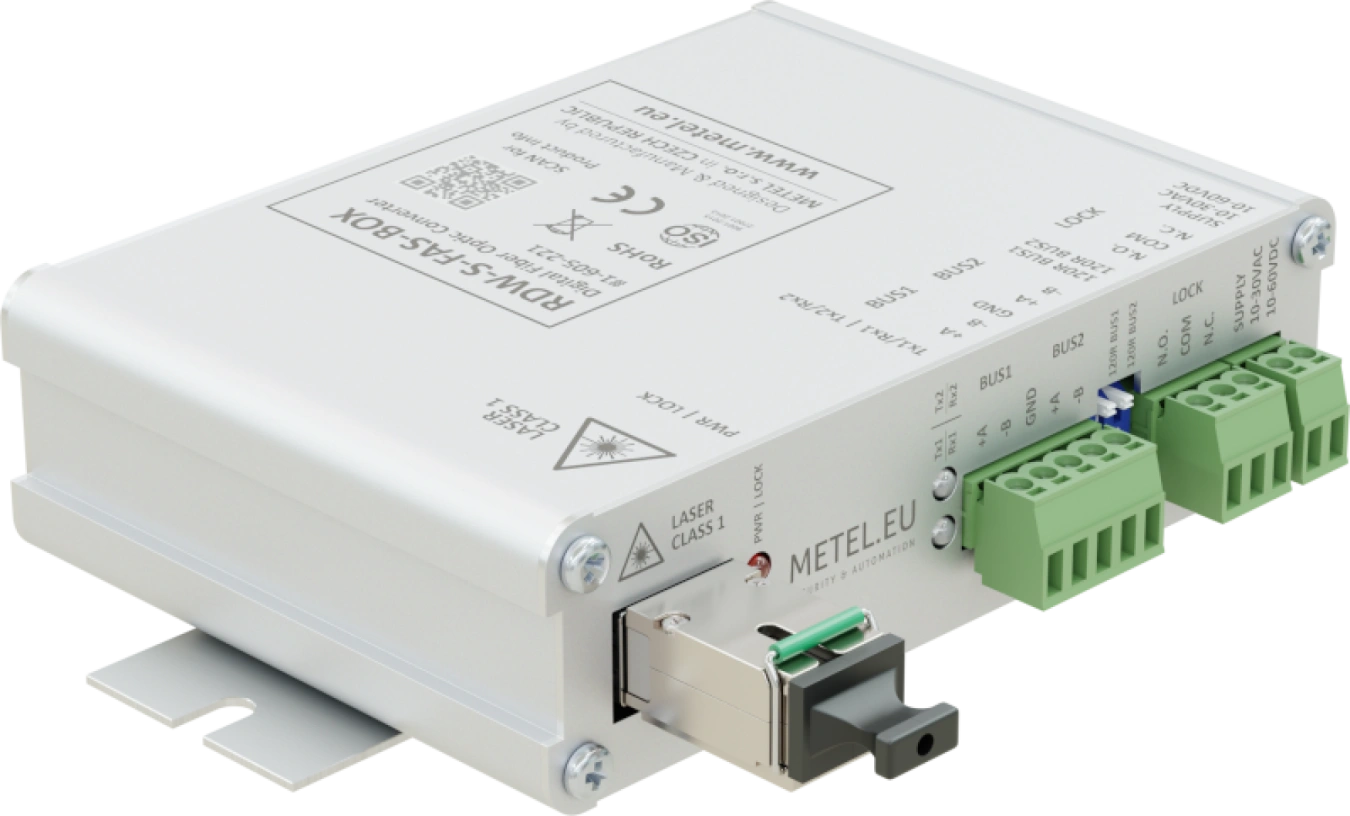

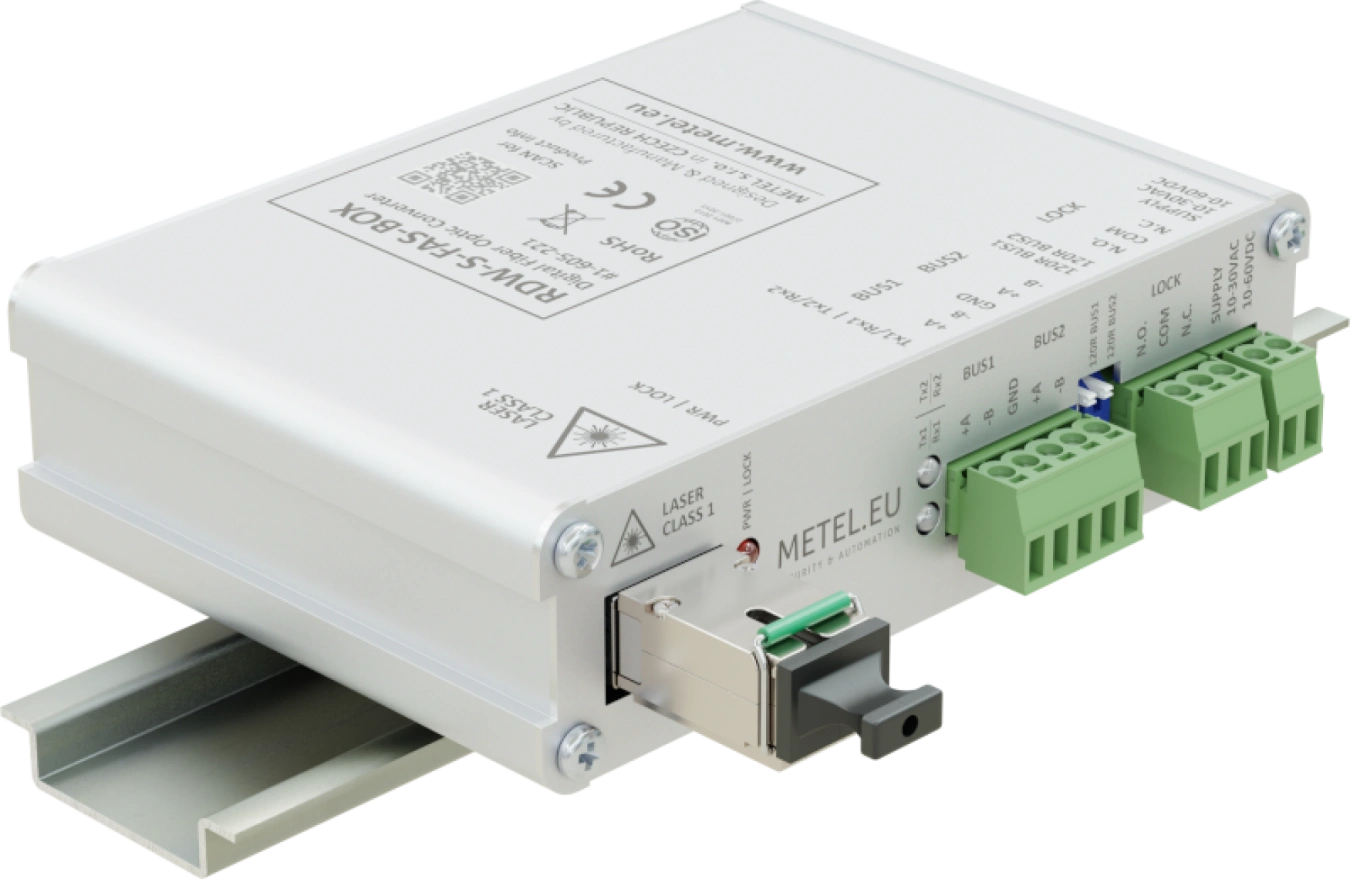

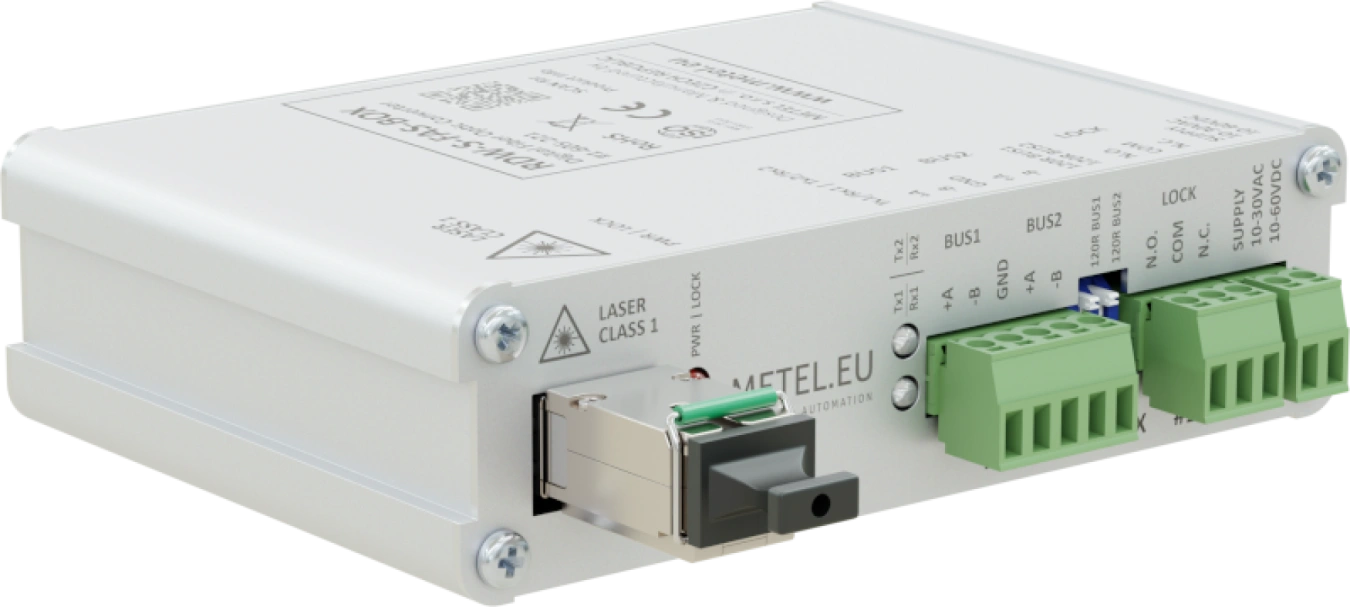

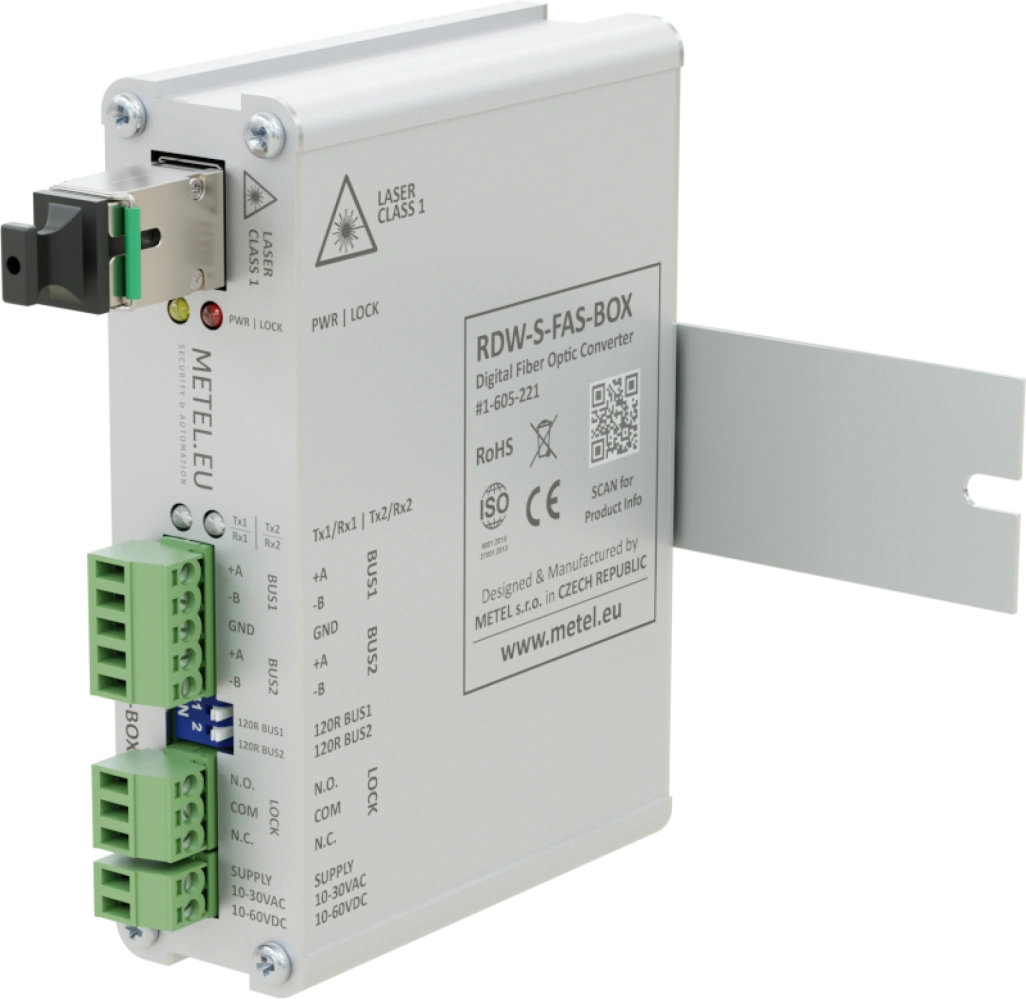

RDW-S-FAS-BOX
Industrial digital converter - 2xRS485 or 1xRS422 bus, 1x bidirectional contact and 1x LOCK relay for detection of optical fiber interruption, opposite device failure and power failure.
Order code: 1-605-221
Availability: -
FIWRE-S-FAS
Set of optical converters TDW-FAS-BOX and RDW-FAS-BOX.
Order code: 1-005-221
Availability: -
Specifications
Technical parameters
| RS485 | |
|---|---|
| Number of buses | 2 |
| Speed | Max. 1 Mbps |
| Surge protection | 600 W waveform 10/1000 μs |
| OPTICAL PORT | |
|---|---|
| Optical performance | -14 to -8 / -10 to 0 dBm (SM/MM) |
| Sensitivity | -31 dBm |
| Optical connector | SC/PC |
| Range on MM 50/125 μm | Max. 6 km |
| Range on MM 62.5/125 μm | Max. 4 km |
| Range on SM 9/125 μm | Max. 20 km |
| LOCK RELÉ | |
|---|---|
| Number of | 1 |
| Functions | Transmission fault detection |
| Max. Load | 125 VAC / 0.5 A or 60 VDC / 0.3 A |
| Contact type | Switching |
| POWER | |
|---|---|
| Input voltage range | 10 - 60 VDC |
| Energy consumption | Max. 1.5 W |
| Surge protection | 600 W [10/1000 μs] |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -40...+75 °C |
| Storage temperature | -40...+70 °C |
| Humidity | Max. 95 % (non-condensing) |
| MECHANICS | |
|---|---|
| Weight | 0,22 kg |
| Dimensions - h / w / d | 30 x 110 x 92 mm |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| EN 61000-4-2 | 8 kV | Air discharge |
| EN 61000-4-2 | 4 kV | Contact discharge |
| EN 61000-4-3 | 10 V/m | Radiated HF field |
| EN 61000-4-4 | 2 kV | Bursty |
| EN 61000-4-5 | 2 kV | Shock pulses |
| EN 61000-4-8 | 30 A/m | Magnetic field |
| Standards and protocols | |
|---|---|
| Modbus | RTU |
| RS485 | Compatible with all RS485 buses up to 1 Mbps |
Downloads
Other
Maintenance plan
.pdf
Package contents
- Converter with SFP module
- DIN rail mounting kit
- Mounting kit for mounting on a flat surface
