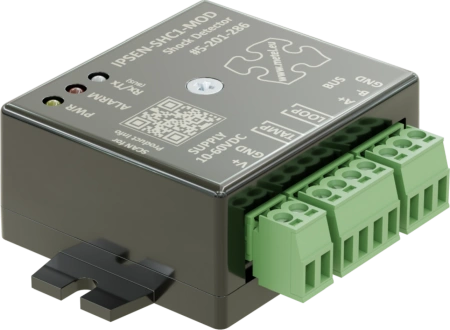

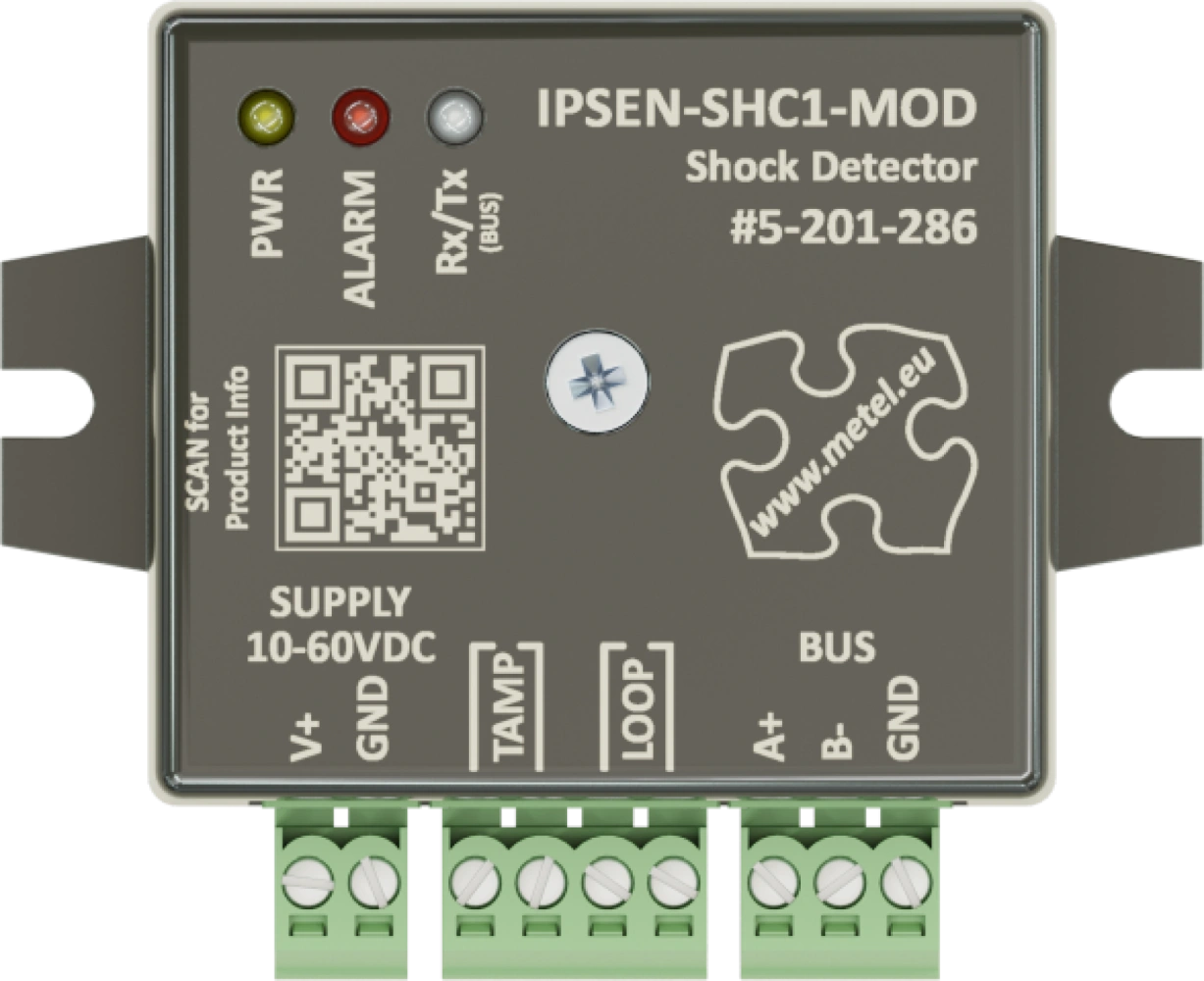

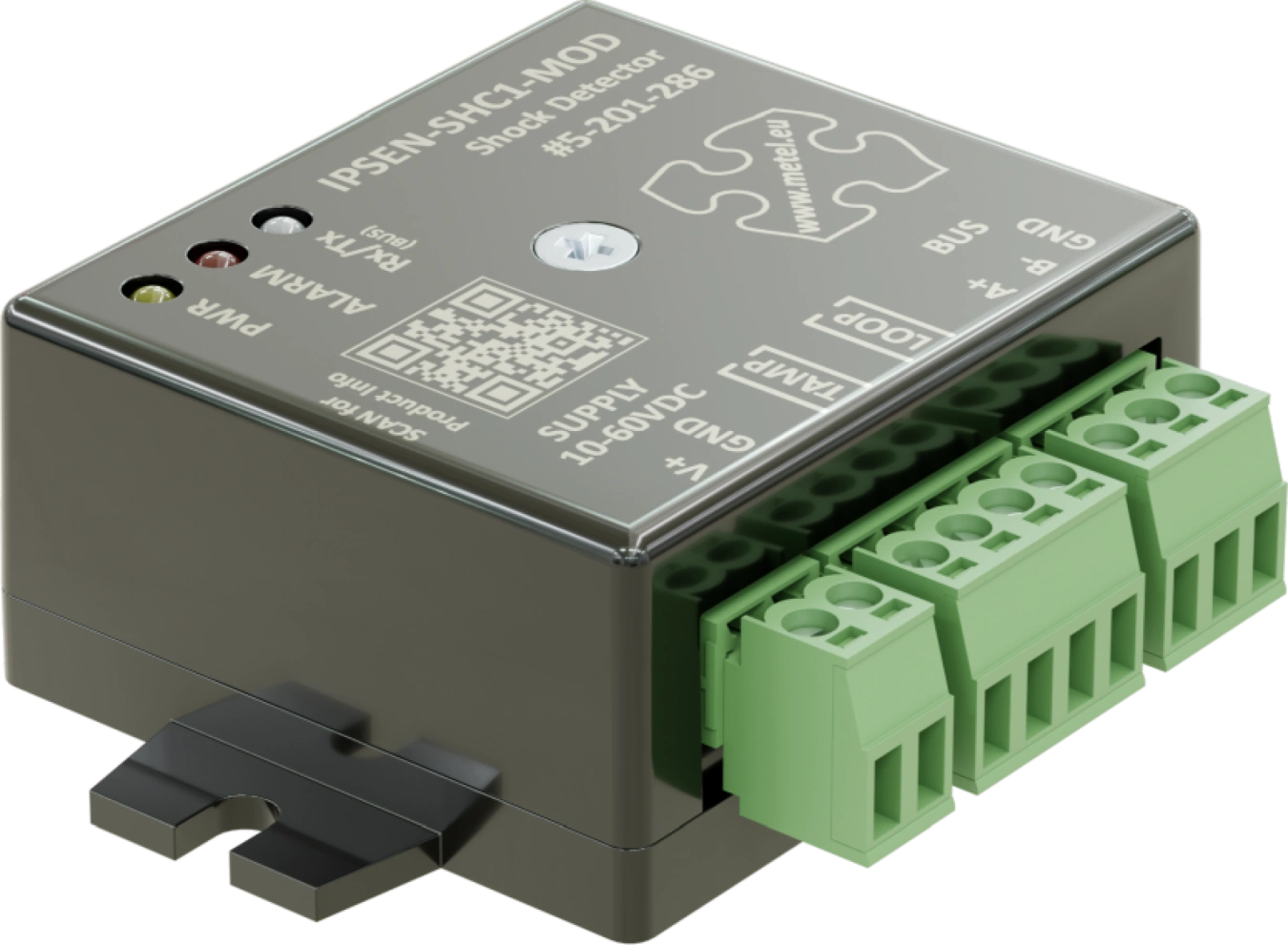

IPSEN-SHC1-MOD
- 3-axis shock detector
- Modbus RTU interface
- Sensitivity setting
- Power input 10-60 VDC
- Operating temperature from -40 °C to +75 °C
The 3-axis impact detector is a device designed to detect mechanical impact and manipulation of switchgear. Compatible with MODBUS-RTU protocol via RS485 interface, it allows easy integration into wider systems. The detector offers adjustable sensitivity, allowing customization to specific conditions and impact detection requirements. This detector is ideal for protecting equipment from tampering or damage.
The devices are developed and manufactured in the EU and meet NDAA requirements.
Models
IPSEN-SHC1-MOD
The 3-axis shock detector, compatible with MODBUS-RTU protocol via RS485 interface, allows easy integration into wider systems. The detector offers adjustable sensitivity, allowing customization to suit specific conditions and impact detection requirements.
Order code: 5-201-286
Availability: Deploying into production
Specifications
IPSEN-SHC1-MOD
Short catalog Sheet (PDF)Technical parameters
| DETECTION | |
|---|---|
| Detection | X, Y, Z axes |
| RS485 | |
|---|---|
| Modbus RTU | Compatible |
| Speed | max. 115200 bps |
| Surge protection | 30 A waveform 8/20 μs |
| POWER | |
|---|---|
| Input voltage range | 10 - 60 VDC |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -40 - +70 °C |
| Storage temperature | -40...+70 °C |
| Humidity | Max. 95 % |
| MECHANICS | |
|---|---|
| Weight | 0,12 kg |
| Degree of coverage | IP55 |
