H2O
- Modbus RTU interface
- Autonomous relay function
- 1x programmable relay output
- 1x input for connecting the detection cable / sensor
- 1x output +5VDC / 300mA
- Power supply 10-30VAC, 10-60VDC
- Operating temperature from −40°C to +70°C
The H2O system contains components for water leak detection. The system can operate completely autonomously with an output to a local relay or it can be connected to a Modbus-RTU bus and communicate with a PLC that sends alerts, for example via SMS.
The devices are developed and manufactured in the EU and comply with NDAA requirements.
Models

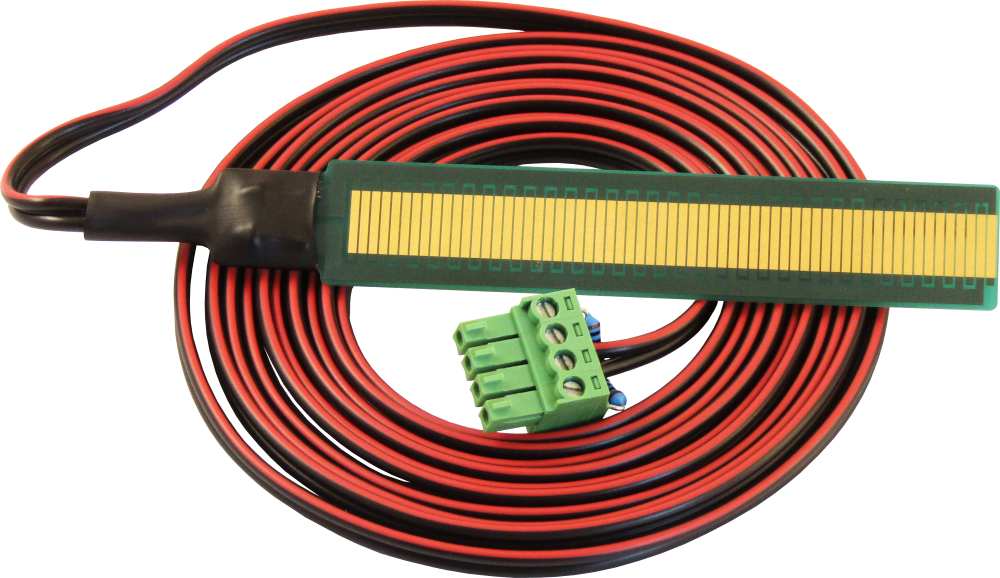

H2O-PCB-78H
Flood detection sensor
Order code: 5-204-284
Availability: Full-scale production

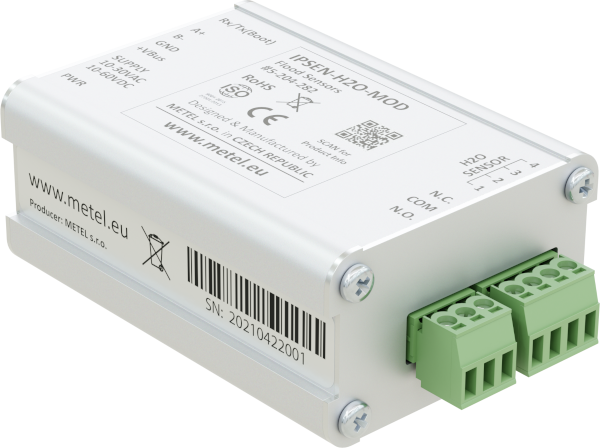

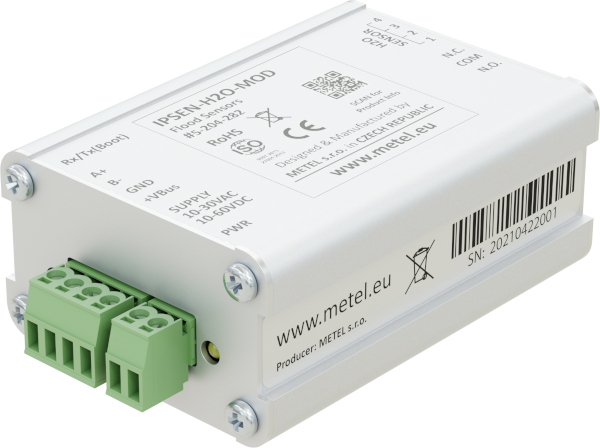

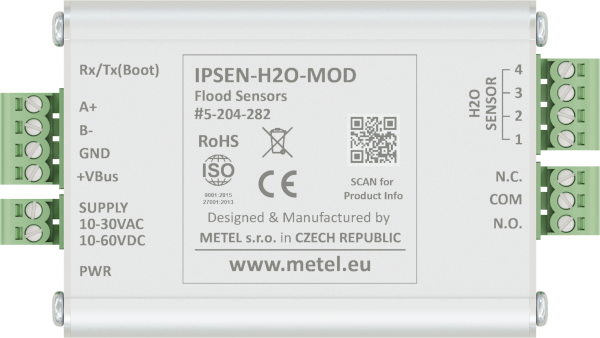

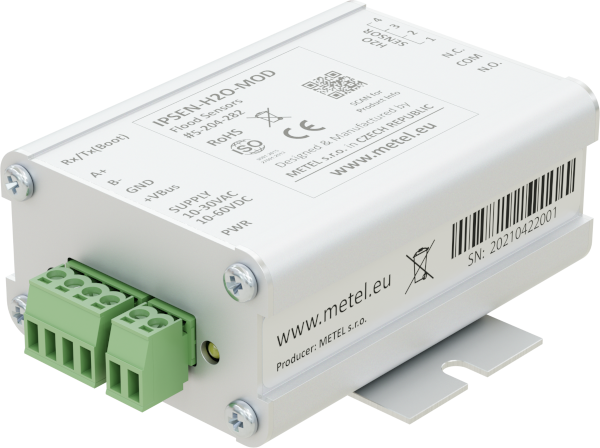

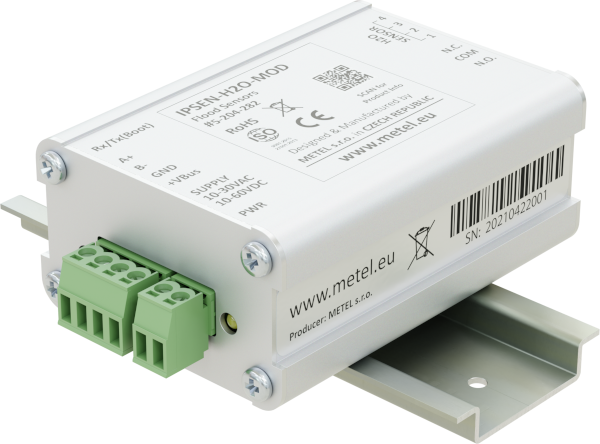

IPSEN-H2O-MOD
evaluation unit with: relay output for flood detection, RS485 Modbus for alarm transmission to IPLOG. Maximum length of detection cable 75m (10x MSC-750)
Order code: 5-204-282
Availability: Full-scale production
Specifications
Technical parameters
| RS485 | |
|---|---|
| Modbus RTU | Compatible |
| Speed | max. 115200 bps |
| Surge protection | 30 A in 8/20 μs wave |
| RELAY OUTPUT | |
|---|---|
| Count | 1 |
| Type of contact | Přepínací |
| Maximum load | 62.5 VA (30 W) / 1 A / 60 V (resistive load) |
| POWER | |
|---|---|
| Input voltage range | 10 - 30 VAC / 10 - 60 VDC |
| Power consumption | Max. 0.5 W |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -40...+70 °C |
| Storage temperature | -40...+70 °C |
| MECHANICAL | |
|---|---|
| Weight | 0.11 kg |
| Dimensions - h / w / d | 30 x 51 x 91 mm |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| Standards and protocols | |
|---|---|
| Modbus | RTU |
