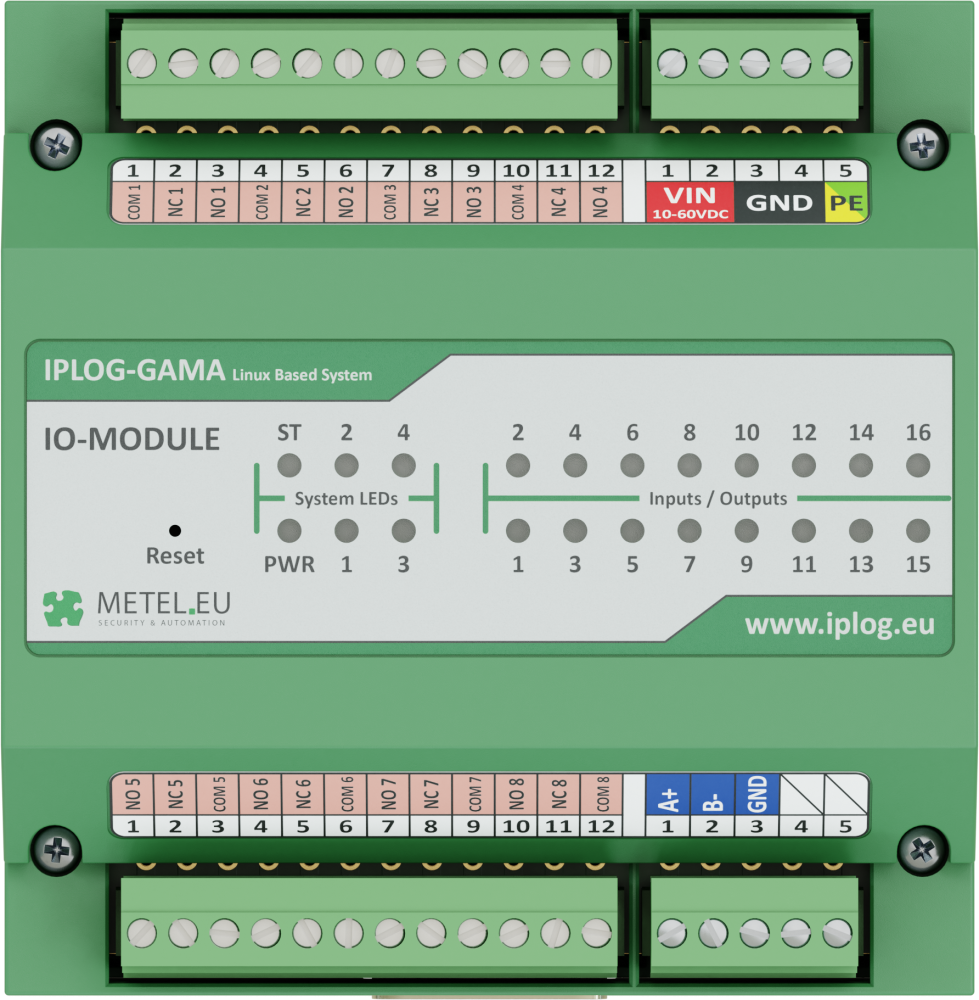

IO modules DIN series
- Modbus RTU IO modules
- Compatible with IPLOG & LAN-RING
- A wide range of digital and analog inputs and outputs
- Highly durable hardware with integrated surge protectors
- Mounting on DIN35
- Operating temperature from −40°C to +70°C
IO modules are Modbus RTU slave devices and can therefore be easily connected to any Modbus RTU master device. Typical examples include the IPLOG-Gx PLC and LAN-RING industrial switches. Inputs and outputs can be controlled using Modbus RTU protocols. The industrial design, featuring integrated surge protection on all inputs and outputs, ensures reliable operation even in very demanding conditions. The IO modules are designed for installation on a DIN35 rail in building distribution boards.
Custom manufacturing is only possible when ordering larger quantities.
The devices are developed and manufactured in the EU and comply with NDAA requirements.
Models
AI8.1-05-DIN
Order code: 6000-0207
Availability: Production to order
AI8.1-01-DIN
2x RS485, 8x 12-bit analog U/I inputs, 2x NOC 24 V relay outputs, 2x NO 230 V relay outputs
Order code: 6000-0201
Availability: Production to order
AI8.1-01G-DIN
2x RS485, galvanic isolation, 8x 12-bit analog U/I inputs, 2x NOC 24 V relay outputs, 2x NO 230 V relay outputs
Order code: 6000-0202
Availability: Production to order
AI8.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 8x 12-bit analog U/I inputs, 2x NOC 24 V relay outputs, 2x NO 230 V relay outputs
Order code: 6000-0222
Availability: Production to order
AI4.1-05-DIN
1x RS485, 2x 10-bit alarm/digital input (5V), 4x 24-bit analog RTD inputs, 4x SSR outputs, 4x 24 V digital inputs
Order code: 6000-0307
Availability: Production to order
AI4.1-01-DIN
2x RS485, 4x 24-bit analog RTD inputs, 4x SSR outputs, 4x 24 V digital inputs
Order code: 6000-0301
Availability: Production to order
AI4.1-01G-DIN
2x RS485, galvanic isolation, 2x 10-bit alarm/digital input (5V), 4x 24-bit analog RTD inputs, 4x SSR outputs, 4x 24 V digital inputs
Order code: 6000-0302
Availability: Production to order
AI4.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 4x 24-bit analog RTD inputs, 4x SSR outputs, 4x 24 V digital inputs
Order code: 6000-0322
Availability: Production to order
BI8.1-05-DIN
Order code: 6000-0407
Availability: Production to order
BI8.1-01-DIN
2x RS485, 8x 10-bit alarm/digital 5 V inputs, 3x digital 5 V inputs, 1x NOC 24 V relay output, 2x open collector NPN outputs
Order code: 6000-0401
Availability: Production to order
BI8.1-01G-DIN
2x RS485, galvanic isolation, 8x 10-bit alarm/digital 5 V inputs, 3x digital 5 V inputs, 1x NOC 24 V relay output, 2x open collector NPN outputs
Order code: 6000-0402
Availability: Production to order
BI8.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 8x 10-bit alarm/digital 5 V inputs, 3x digital 5 V inputs, 1x NOC 24 V relay output, 2x open collector NPN outputs
Order code: 6000-0422
Availability: Production to order
RE8.1-05-DIN
1x RS485, 2x 10-bit alarm/digital input (5V), 8x NO 230 V relay outputs, 3x optically isolated 230 V inputs, 2x NOC 230 V relay outputs
Order code: 6000-0507
Availability: Production to order
RE8.1-01-DIN
2x RS485, 8x NO 230 V relay outputs, 3x optically isolated 230 V inputs, 2x NOC 230 V relay outputs
Order code: 6000-0501
Availability: Production to order
RE8.1-01G-DIN
2x RS485, galvanic isolation, 8x NO 230 V relay outputs, 3x optically isolated 230 V inputs, 2x NOC 230 V relay outputs
Order code: 6000-0502
Availability: Production to order
RE8.1-17G-DIN
2x RS485, galvanic isolation, 8x NO 230 V relay outputs, 3x optically isolated 230 V inputs, 2x NOC 230 V relay outputs
Order code: 6000-0522
Availability: Production to order
AO8.1-05-DIN
1x RS485, 2x 10-bit alarm/digital input (5V), 8x 12-bit analog outputs, 4x 12-bit analog voltage inputs, 4x digital 24 V inputs
Order code: 6000-0607
Availability: Production to order
AO8.1-01-DIN
2x RS485, 8x 12-bit analog outputs, 4x 12-bit analog voltage inputs, 4x digital 24 V inputs
Order code: 6000-0601
Availability: Production to order
AO8.1-01G-DIN
2x RS485, galvanic isolation, 8x 12-bit analog outputs, 4x 12-bit analog voltage inputs, 4x digital 24 V inputs
Order code: 6000-0602
Availability: Production to order
AO8.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 8x 12-bit analog outputs, 4x 12-bit analog voltage inputs, 4x digital 24 V inputs
Order code: 6000-0622
Availability: Production to order
PP8.1-05-DIN
1x RS485, 8x PUSH-PULL transistor outputs, 4x 24V digital inputs, 5x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output
Order code: 6000-0707
Availability: Production to order
PP8.1-01-DIN
2x RS485, 8x PUSH-PULL transistor outputs, 4x 24V digital inputs, 3x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output
Order code: 6000-0701
Availability: Production to order
PP8.1-01G-DIN
2x RS485, galvanic isolation, 8x PUSH-PULL transistor outputs, 4x 24V digital inputs, 3x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output
Order code: 6000-0702
Availability: Production to order
PP8.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 8x PUSH-PULL transistor outputs, 4x 24V digital inputs, 3x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output
Order code: 6000-0722
Availability: Production to order
DI8.1-05-DIN
1x RS485, 2x 10bit alarm/digital input (5V), 8x 24V digital inputs, 4x NO 230V relay outputs, 2x PUSH-PULL transistor outputs
Order code: 6000-0107
Availability: Production to order
DI8.1-01-DIN
2x RS485, 8x 24 V digital inputs, 4x NO 230 V relay outputs, 2x PUSH-PULL transistor outputs
Order code: 6000-0101
Availability: Production to order
DI8.1-01G-DIN
2x RS485, galvanic isolation, 8x 24 V digital inputs, 4x NO 230 V relay outputs, 2x PUSH-PULL transistor outputs
Order code: 6000-0102
Availability: Production to order
DI8.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 8x 24 V digital inputs, 4x NO 230 V relay outputs, 2x PUSH-PULL transistor outputs
Order code: 6000-0122
Availability: Production to order
BO8.1-05-DIN
1x RS485, 8x 8-bit alarm outputs, 5x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output, 2x open collector NPN outputs
Order code: 6000-0807
Availability: Production to order
BO8.1-01-DIN
2x RS485, 8x 8-bit alarm outputs, 3x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output, 2x open collector NPN outputs
Order code: 6000-0801
Availability: Production to order
BO8.1-01G-DIN
2x RS485, galvanic isolation, 8x 8-bit alarm outputs, 3x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output, 2x open collector NPN outputs
Order code: 6000-0802
Availability: Production to order
BO8.1-17G-DIN
1x RS485, 1x RS232 (Rx, Tx), galvanic isolation, 8x 8-bit alarm outputs, 3x 10-bit alarm/digital 5V inputs, 1x NOC 24V relay output, 2x open collector NPN outputs
Order code: 6000-0822
Availability: Production to order
BI8.2E-DIN
1x RS485, 8x 10-bit alarm / digital 5 V inputs
Order code: 6000-1200
Availability: Production to order
RE8.3E-DIN
1x RS485, 8x NOC 24 V relay output
Order code: 6000-1100
Availability: Production to order
BI8.4E-DIN
1x RS485, 8x 10-bit alarm/digital 5 V inputs, 4x NOC 24 V relay output
Order code: 6000-1400
Availability: Production to order
Specifications
Technical parameters
| POWER | |
|---|---|
| Input voltage range | 10 - 60 VDC |
| ENVIRONMENT AND SURGE PROTECTIONS | |
|---|---|
| I/O surge protections | Min. 600 W (10/1000 µs) |
| Operating temperature | –40…+70 °C |
| Storage temperature | –40…+70 °C / Max. 95 % humidity |
| 12-BIT ANALOG CURRENT OR VOLTAGE INPUTS (with galvanic isolation) | |
|---|---|
| Voltage ranges | ±2.5V, ±5V, ±10V, 0V to 5V, 0V to 10V |
| Current ranges | 0 to 20mA, 4 to 20mA |
| Sampling rate | 1 kSps (adaptive) |
| 24-BIT RTD INPUTS | |
|---|---|
| Resistive ranges | PT100, PT1000 (3-wires connection) |
| Sampling rate | 1 kSps |
| Isolation voltage | 1.000 VRMS (RTDx / CPU) |
| SSR OUTPUTS | |
|---|---|
| Output type | MOSFET (SPST contact type) |
| Voltage / current | 75 VAC to 264 VAC, 45 to 65 Hz / Max. 1 A, minimal 20 mA |
| Breakdown voltage | 3.000 Vrms (Input / Output) |
| Isolation voltage between SSR outputs | 1.500 Vrms |
| 24 V DIGITAL INPUTS (with galvanic isolation 2.500 Vrms between inputs and CPU) | |
|---|---|
| Input voltage DC / AC | Input current | Log. 0: −30 V to 5 V, Log. 1: +15 V to 30 V | 12 mA at 24 VDC |
| Maximum input voltage | 50 V / 1 s |
| NOC 24 V RELAY OUTPUTS (changeover contact) | |
|---|---|
| Max. load | 0.5 A / 120 VAC, 1 A / 24 VDC (resistive load) |
| Electrical lifetime | 3,000,000 operations |
| Isolation voltage | 1.000 Vrms / 1 min. (terminals to electronic or case) |
| NO 230 V RELAY OUTPUTS (normal open contact) | |
|---|---|
| Max. load | 5 A / 250 VAC, 3 A / 30 VDC (resistive load) |
| Electrical lifetime | 100,000 operations at 250 VAC / 5A |
| Isolation voltage | 2.500 Vrms / 1 min. (terminals to electronic or case) |
| NOC 230 V RELAY OUTPUTS (changeover contact) | |
|---|---|
| Max. load | 10 A / 250 VAC, peak 15 A, (resistive load) |
| Electrical lifetime | 50.000 operations, minimal value |
| Isolation voltage | 2.500 Vrms / 1 min. (terminals to electronic or case) |
| ALARM / 5 V DIGITAL INPUTS | |
|---|---|
| Alarm / digital mode usage | PIR / tampers (input voltage max. 7VDC) |
| Dry contact schematic | Log. 0: open, Log. 1: close to ground |
| Alarm mode range | From 10 to 30.000 Ω (10-bit resolution) |
| 5 V DIGITAL INPUTS | |
|---|---|
| Input voltage | Max. 7 VDC |
| Dry contact schematic | Log. 0: open, Log. 1: close to ground |
| OPEN COLLECTOR NPN TRANSISTORS OUTPUTS | |
|---|---|
| Internal Pull-Up | 1,000 Ω, ON/OFF by a DIP switch |
| Maximum load (sinking | sourcing) | 16 V / 250 mA | 12 V / 1 mA |
| 8-BIT ALARM OUTPUTS | |
|---|---|
| Adjustable range | 200 to 50 000 Ω |
| PUSH-PULL TRANSISTOR OUTPUTS | |
|---|---|
| Output type | Open collector NPN or PNP, Push-Pull (software selectable) |
| Maximum load | 30 V / 0.25 A |
| Galvanic isolation | 2.500 VRMS (PP x output / CPU) |
| Shortcut protection | Yes (polyswitch) |
| 230 V DIGITAL INPUTS | |
|---|---|
| Input voltage AC | Log. 0: 0 VAC to 120 VAC, Log. 1: 200 VAC to 250 VAC |
| Isolation voltage | 2.500 Vrms, (IN x / CPU) |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 61131-2 | Programmable control units | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| EN 61000-4-3 | 10 V/m | Radiated HF field |
| Standards and protocols | |
|---|---|
| EN 61131-3 | FBD, IL, ST, LD |
