OVP-1000M
- Overvoltage protection of the 1000BASE-T interface
- Extremely effective two-stage protection
- Suitable for outdoor applications
- Galvanically isolated PE clamp
- Operating temperature from −40°C to +70°C
Two-stage surge protection LAN 10/100/1000Mbps. Typical use is to protect servers, DVRs, computers and other sensitive IP devices.
The devices are developed and manufactured in the EU and meet NDAA requirements.
Models

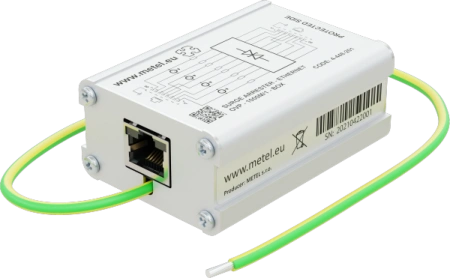

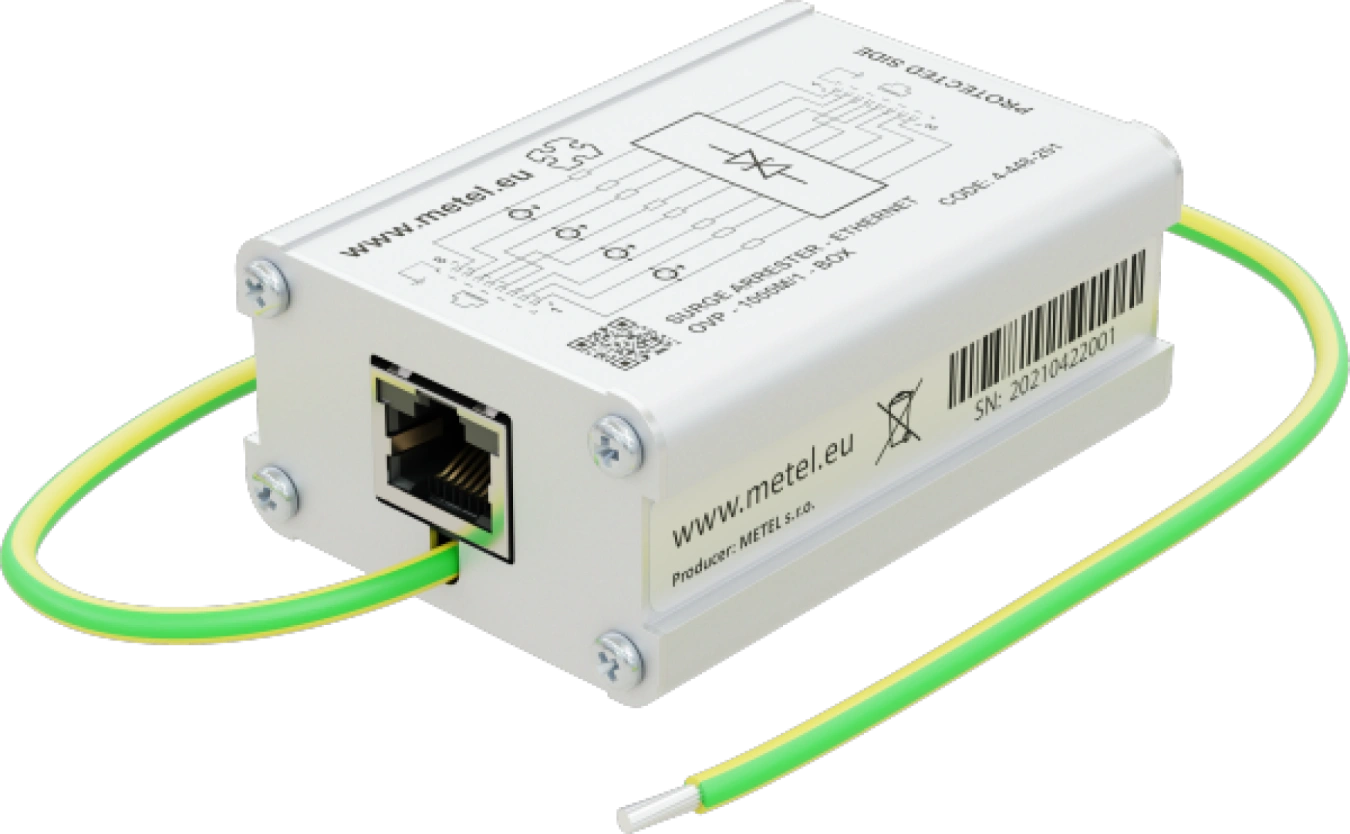

OVP-1000M/1-BOX

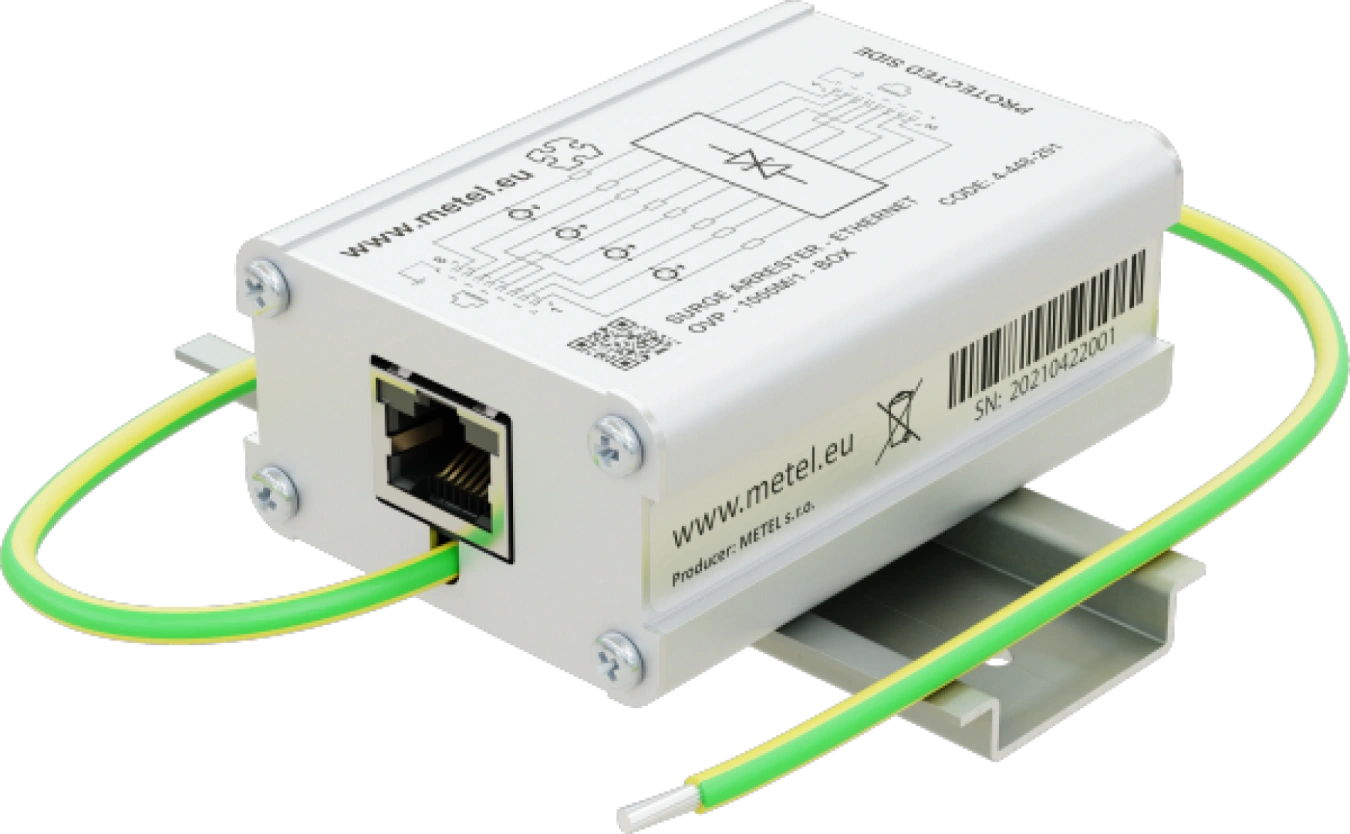

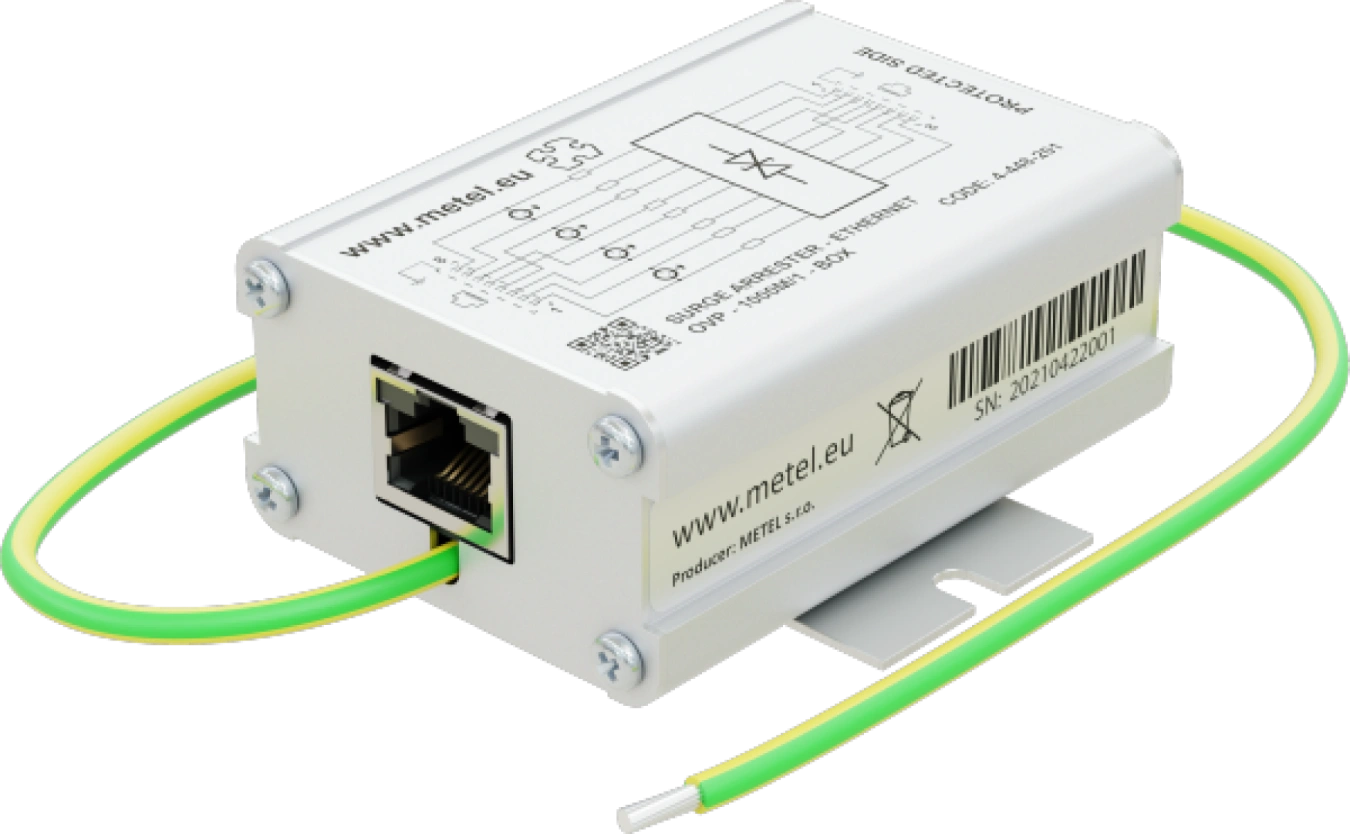

OVP-1000M/1-BOX, 1000BASE-T interface surge protector, two-stage design, galvanically isolated PE terminal, installation on flat surface or DIN35
Order code: 4-448-201
Availability: Full-scale production
Specifications
Technical parameters
| PROTECTED PORTS | |
|---|---|
| Ethernet standard | 1000 BASE-T |
| Number of protected ports | 1 |
| Number of protected pairs | 4 |
| Max. Operating voltage (data) | 6 V |
| Max. Operating voltage (PoE) | 60 V |
| Max. Operating current | 0,5 A |
| TRANSMISSION PROPERTIES | |
|---|---|
| Transmitted power | max. 30 W PoE+ (IEEE 802.3at) |
| SURGE PROTECTION - TESTS | |
|---|---|
| C1 nominal discharge current | 250 A waveform 8/20 µs (in protected pairs) |
| C1 protective voltage level | 31 V (in protected pairs) |
| C2 nominal discharge current | 1000 A waveform 8/20 µs (in protected pairs) |
| C2 protective voltage level | 87 | 647 V (in protected pairs | protected pair/PE) |
| ENVIRONMENT | |
|---|---|
| Operating temperature | –40…+80 °C |
| Storage temperature | –40…+80 °C |
| Degree of coverage | IP20 |
| MECHANICAL | |
|---|---|
| Dimensions - h / w / d | 31,5 x 51,5 x 76,1 mm |
| Connections | RJ45 / RJ45 |
| PE connection | 2.5 mm² |
| Service life | 100 000 h |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN 61643-21 | Surge protectors in telecommunication and signalling networks | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| Standards and protocols | |
|---|---|
| LAN | 10BASE-T / 100BASE-TX / 1000BASE-T |
| Power over Ethernet up to 15.4 / 30W | IEEE 802.3af/at |
Downloads
OVP-1000M-BOX
Other
Maintenance plan
.pdf
Installation manual
OVP Installation Manual
.pdf
Package contents
- Surge protection
- DIN rail mounting kit
- Mounting kit for fixing to a flat surface
Accessories
Patch panels for OVP protection
Patch panels designed for quick and professional installation of up to 8 surge protectors.
