OVP-1(2)
- Industrial design
- Two-stage protection
- Galvanically isolated PE clamp
- Operating temperature – 40°C to +70°C
OVP two-stage surge protectors are the optimal solution for protecting the power supply of sensitive 12, 24 and 48 V electronic equipment.
The devices are developed and manufactured in the EU and comply with NDAA requirements.
Models
OVP-1/12/1-BOX
surge protector for power supply 1x 12VDC/1A or 6VAC/1A, two-stage design, galvanically isolated PE terminal, quick mounting
Order code: 4-401-119
Availability: Full-scale production
OVP-2/24/1-BOX
two-channel surge protector, power supply 2x 24VDC/1A or 24VAC/1A, two-stage design, galvanically isolated PE terminal, quick installation
Order code: 4-401-123
Availability: Full-scale production

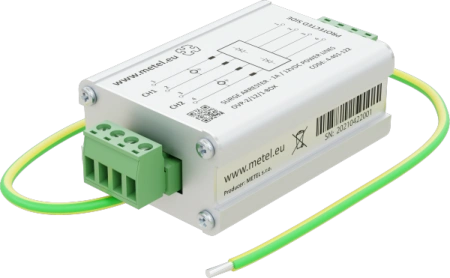

OVP-2/12/1-BOX
two-channel surge protector power supply 2x 12VDC/1A or 6VAC/1A, two-stage design, galvanically isolated PE terminal, quick installation
Order code: 4-401-122
Availability: Full-scale production
OVP-1/24/1-BOX
surge protector for power supply 1x 24VDC/1A or 24VAC/1A, two-stage design, galvanically isolated PE terminal, quick mounting
Order code: 4-401-120
Availability: Full-scale production
OVP-1/48/1-BOX
Surge protector 1x 48VDC/1A or 24VAC/1A, two-stage design, galvanically isolated PE terminal, quick mounting.
Order code: 4-401-121
Availability: Unavailable

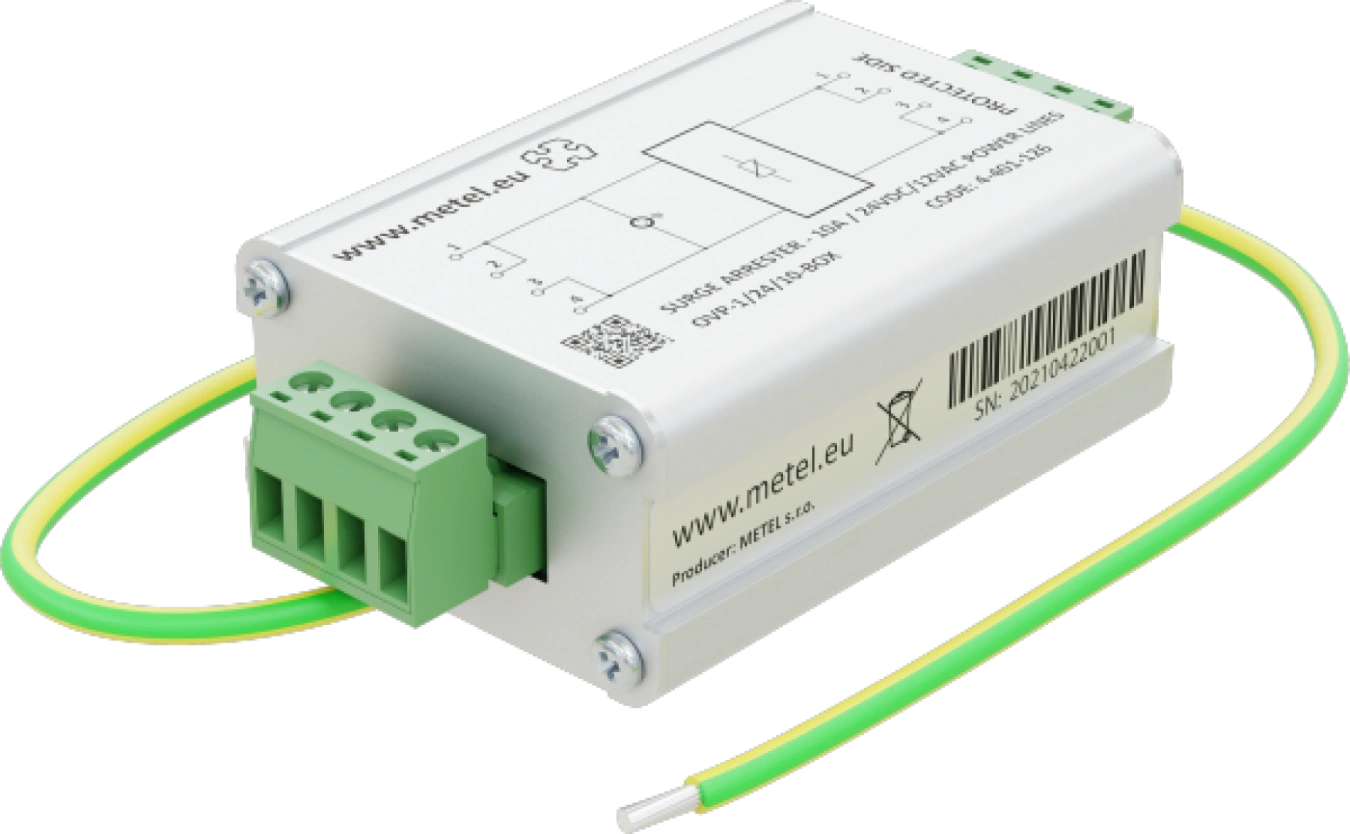

OVP-1/24/10-BOX
surge protector for power supply 1x 24VDC or 24VAC/10A, two-stage design, galvanically isolated PE terminal, quick mounting
Order code: 4-401-126
Availability: Full-scale production

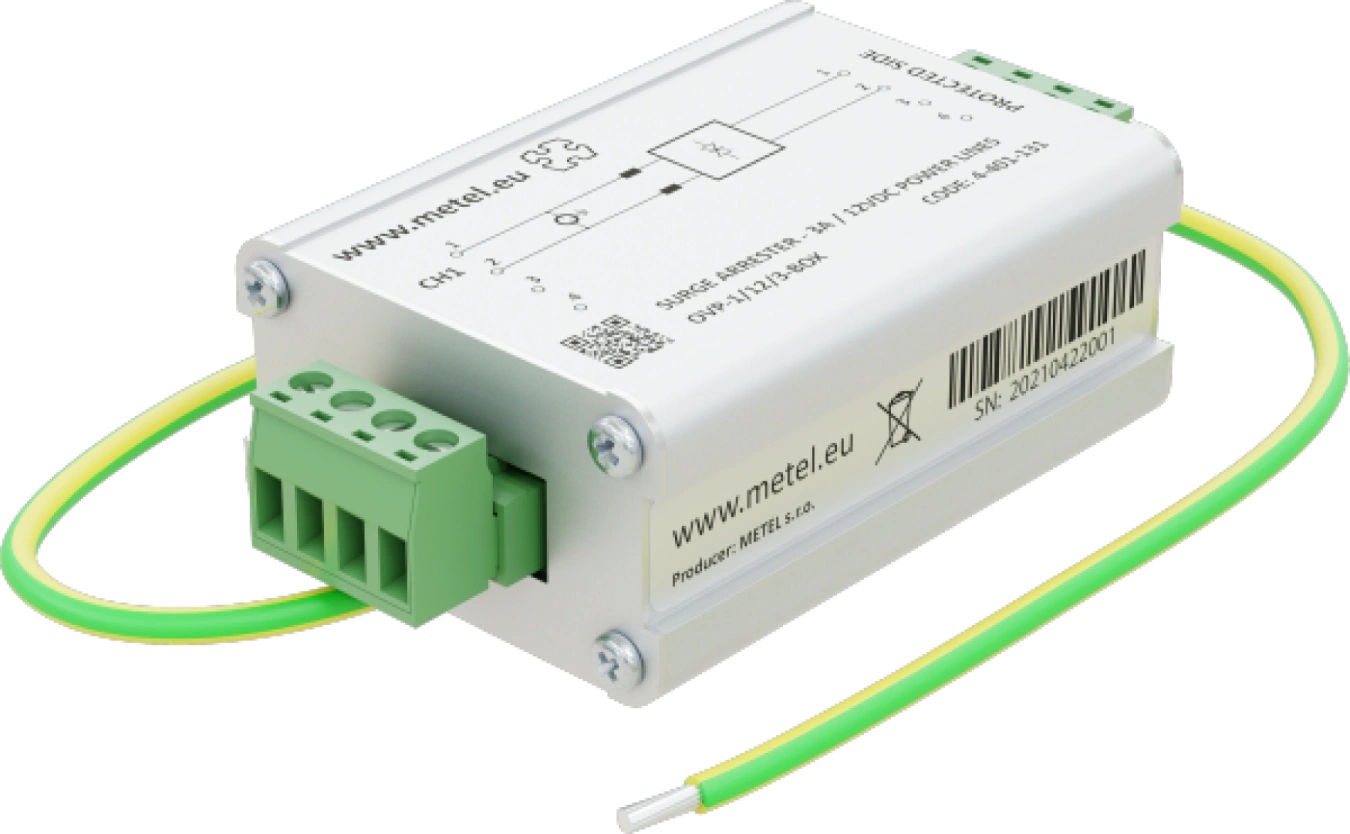

OVP-1/12/3-BOX
surge protector for power supply 1x 12VDC/3A or 6VAC/3A, two-stage design, galvanically isolated PE terminal, quick mounting
Order code: 4-401-131
Availability: Full-scale production
OVP-1/48/10-BOX
surge protector for power supply 1x 48VDC/10A, two-stage design, galvanically isolated PE terminal, quick mounting
Order code: 4-401-127
Availability: Full-scale production
OVP-1/24/3-BOX
surge protector for power supply 1x 24VDC/3A or 12VAC/3A, two-stage design, galvanically isolated PE terminal, quick mounting
Order code: 4-401-132
Availability: Full-scale production
Specifications
Technical parameters
| NUMBER AND TYPES OF PROTECTED LINES | |
|---|---|
| Number of protected pairs | 1 (OVP-1/x/x), 2 (OVP-2/x/x) |
| Protected lines 12VDC/1A or 6VAC/1A | OVP-x/12/1-BOX |
| Protected lines 24VDC/1A or 24VAC/1A | OVP-x/24/1-BOX |
| Protected lines 1x 12VDC/3A or 6VAC/3A | OVP-1/12/3-BOX |
| Protected lines 1x 24VDC/3A or 12VAC/3A | OVP-1/24/3-BOX |
| Protected lines 1x 24VDC/10A or 24VAC/10A | OVP-1/24/10-BOX |
| Protected lines 1x 48VDC/10A | OVP-1/48/10-BOX |
| PARAMETERS OF POWER LINES | |
|---|---|
| Nominal operating voltage (x/12/x) | 12 VDC |
| Nominal operating voltage (x/24/x) | 24 VDC |
| Nominal operating voltage (x/48/x) | 48 VDC |
| Max operating voltage DC (x/12/1 a 1/12/3) | 15 V |
| Max operating voltage DC (x/24/1 a 1/24/3) | 42 V |
| Max operating voltage DC (x/48/1) | 59 V |
| Max operating voltage DC (x/24/10) | 45 V |
| Max operating voltage DC (x/48/10) | 65 V |
| Max operating voltage AC (x/12/1 a 1/12/3) | 10 V |
| Max operating voltage AC (x/24/1 a 1/24/3) | 29 V |
| Max operating voltage AC (x/48/1) | 41 V |
| Max operating voltage AC (x/24/10) | 31 V |
| Max operating voltage AC (x/48/10) | 45 V |
| Nominal operating current (x/x/1) | 1 A |
| Nominal operating current (x/x/3) | 3 A |
| Nominal operating current (x/x/10) | 10 A |
| SURGE PROTECTION LINE - LINE | |
|---|---|
| C2 nominal discharge current In (8/20) | 1 kA |
| C2 max discharge current (8/20) | 2 kA |
| Protection level Up at In (x/12/1) | 22 V |
| Protection level Up at In (x/24/1) | 58 V |
| Protection level Up at In (x/48/1) | 78 V |
| Protection level Up at In (1/12/3) | 30 V |
| Protection level Up at In (1/48/10) | 48 V |
| Protection level Up at In (x/24/10) | 155 V |
| Protection level Up at In (x/48/10) | 151 V |
| SURGE PROTECTION LINE - PE | |
|---|---|
| C2 nominal discharge current In (8/20) | 1 kA |
| C2 max discharge current (8/20) | 2 kA |
| Protection level Up at In (x/x/1 a x/x/3) | 560 V |
| Protection level Up at In (x/24/10) | 462 V |
| Protection level Up at In (x/48/10) | 443 V |
| ENVIRONMENT | |
|---|---|
| Operating temperature | –40...+70 °C |
| Storage temperature | –40...+70 °C |
| MECHANICAL | |
|---|---|
| Dimensions - h / w / d | 30 x 51,5 x 70 mm |
| Weight | 0,14 kg |
| Connection | two-piece terminal blocks |
| PE lead | 2,5 mm2 |
| Service life | 100 000 hours |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN 61643-21 | Surge protectors in telecommunication and signalling networks | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
Downloads
Other
Maintenance plan
.pdf
Installation manual
OVP Installation Manual
.pdf
Package contents
- Surge protection

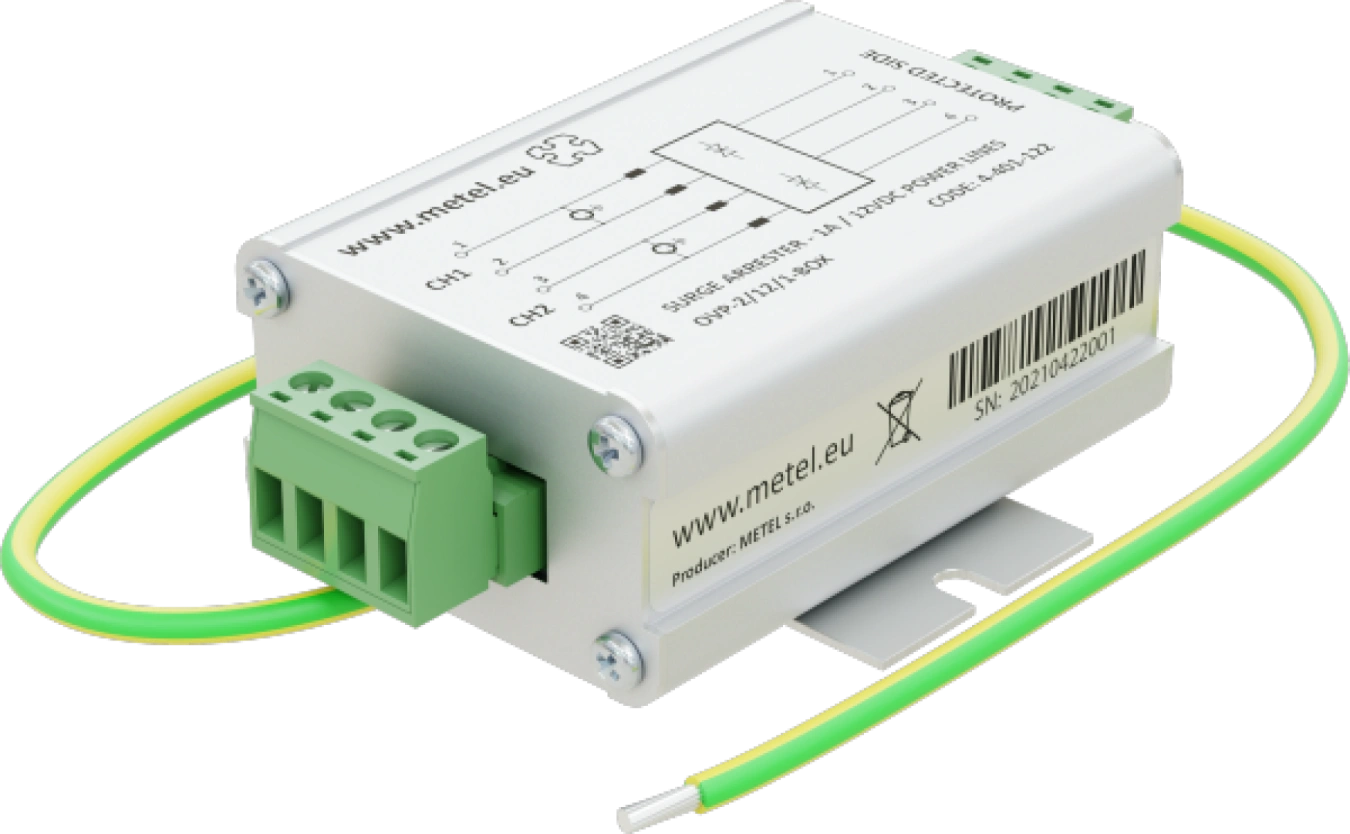

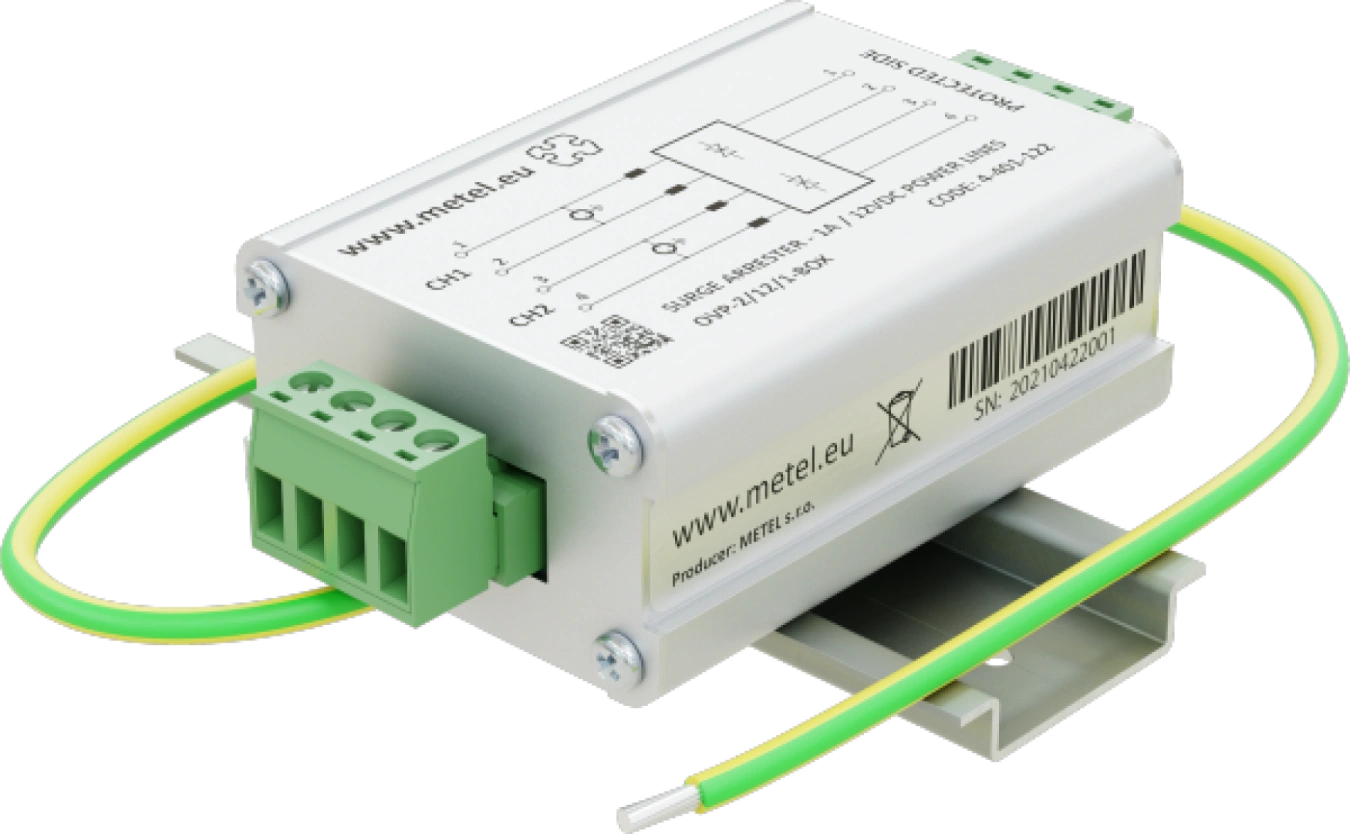

- DIN rail mounting kit
- Mounting kit for mounting on a flat substrate
