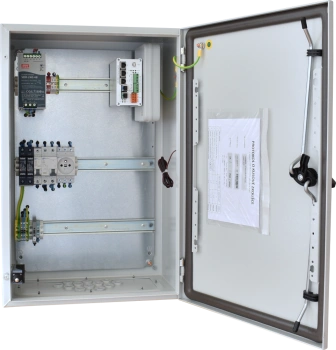

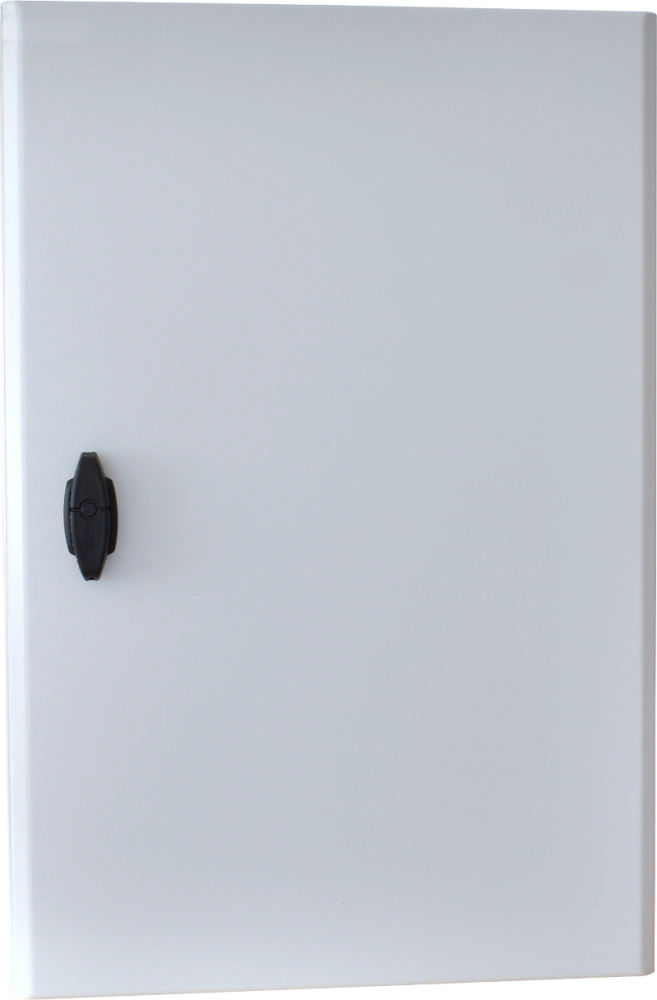

OH6425
- Steel switchboards with IP66 protection
- Suitable for outdoor switch installation
- Tested according to EN 61439-1
- Dimensions: 600x400x250 mm
- Basic equipment: 230 VAC socket, circuit breaker, overvoltage protection, tamper
- Optional equipment: - power supplies 12 / 24 / 48 VDC
- Optional accessory: installation brackets, ventilation, shock detector, optical cartridges, locks
The OH6425 series outdoor steel switchboards are designed for outdoor installation of 2G and 20G series industrial switches. Models are available with a 12, 24 or 48VDC power supply. A Wiring Diagram and Unit Test Report are included.
Models
OH6425-C4.A12.R.P481.SE
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: 230VAC socket type E (CZ), power supply 48VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-410
Availability: Full-scale production
OH6425-C4.A12.R.P482.SF
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: socket 230VAC type F (DE), power supply 48VDC/240W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-320
Availability: Full-scale production
OH6425-C4.A12.R.P482.SE
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: 230VAC socket type E (CZ), power supply 48VDC/240W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-310
Availability: Full-scale production
OH6425-C4.A12.R.P481.SF
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: socket 230VAC type F (DE), power supply 48VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-420
Availability: Full-scale production
OH6425-C4.A12.R.P241.SE
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: 230VAC socket type E (CZ), power supply 24VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-510
Availability: Full-scale production
OH6425-C4.A12.R.P241.SF
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: 230VAC socket type F (DE), power supply 24VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-520
Availability: Full-scale production
OH6425-C4.A12.R.P121.SE
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: 230VAC socket type E (CZ), power supply 12VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-610
Availability: Full-scale production
OH6425-C4.A12.R.P121.SF
Compliant with the requirements of EN 61439-1 (certified by TUV SUD), the switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: socket 230VAC type F (DE), power supply 12VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 600x400x250 mm
Order code: 4-411-620
Availability: Full-scale production
Specifications
Technical parameters
| MECHANICS | |
|---|---|
| Dimensions - h / w / d | 600 x 400 x 250 mm |
| Pins | 12 (PG11) |
| Material and finish | Galvanised steel with epoxy polyester (grey RAL 7035) |
| Weight | Max. 20 kg (without batteries) |
| Tamper | Contact NC |
| Mechanical protection | IK10 |
| Degree of coverage | IP66 |
| JISTIČ | |
|---|---|
| Rated working voltage | 230 VAC |
| Rated current | 4 A |
| Tripping characteristic | C |
| Rated short-circuit capability | 6 kA |
| SURGE PROTECTION | |
|---|---|
| Type | T1, T2, T3 |
| Rated AC operating voltage | 230 VAC |
| Voltage protection level at the In input | 1,25 kV |
| Pulse discharge current for Class I test (10/350) | 12.5 kA |
| CURRENT PROTECTOR | |
|---|---|
| Rated working voltage | 230 VAC |
| Type | A |
| Rated residual current | 30 mA |
| Rated short-circuit capability | 6 kA |
| POWER SUPPLIES | |
|---|---|
| Input voltage (50 Hz) | 88 to 264 VAC |
| Rated power | 120 W | 240 W |
| Output voltage (P121) | 12 - 14 VDC |
| Output voltage (P241) | 24 - 28 VDC |
| Output voltage (P481 and P482) | 48 - 55 VDC |
| 230 VAC SOCKET | |
|---|---|
| Rated working voltage | 230 VAC |
| Type E | With protective pin |
| Type F | Schuko design |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| EN 55022 | EMC - Emissions requirements | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 61439-1 | Low voltage switchboards | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
