OH4320
- Steel switchboards with IP66 protection
- Suitable for outdoor switch installation
- Tested according to EN 61439-1
- Dimensions: 400x300x200 mm
- Switchboard equipment
- - 230VAC socket
- - 12, 24 or 48V source
- - circuit breaker 4A
- - overvoltage protection
- - residual current device
- Optional accessories
- - brackets for wall mounting
- - brackets for installation on a pole
- - optical cassette or box
- - lock with key

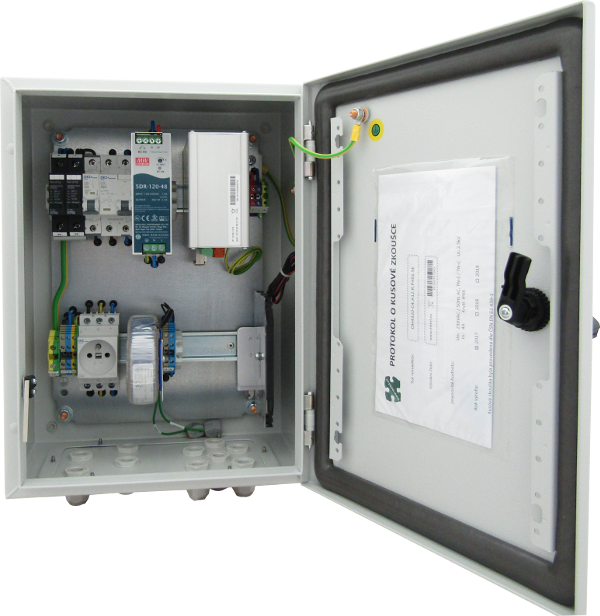

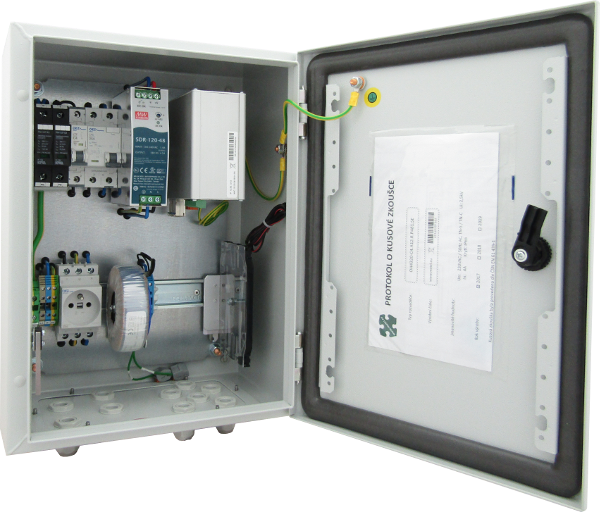

The OH4320 series outdoor steel switchgear is designed for outdoor installation of 2G and 20G series industrial switches up to a maximum of 7 ports. A wiring diagram and a unit test report are included in the delivery.
Models
OH4320-C4.A12.R.P121.SE
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. Devices from other manufacturers can also be installed in the switchboard. The switchboard is equipped with the following components: socket 230VAC type E (CZ), power supply 12VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-610
Availability: Full-scale production
OH4320-C4.A12.R.P481.SE
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. Devices from other manufacturers can also be installed in the switchboard. The switchboard is equipped with the following components: socket 230VAC type E (CZ), power supply 48VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-410
Availability: Full-scale production
OH4320-C4.A12.R.P481.SF
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. Devices from other manufacturers can also be installed in the switchboard. The switchboard is equipped with the following components: socket 230VAC type F (DE), power supply 48VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-420
Availability: Full-scale production
OH4320-C4.A12.R.SE
Outdoor steel switchboard complying with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices of other manufacturers. The switchboard is equipped with the following components: socket 230VAC type E (CZ), surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-010
Availability: Full-scale production
OH4320-C4.A12.R.SF
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: 230VAC socket type F (DE), surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-020
Availability: Full-scale production
OH4320-C4.A12.P241
Outdoor steel switchboard complying with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: power supply 24VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, dimensions: 400 x 300 x 200 mm
Order code: 5-410-500
Availability: Full-scale production
OH4320-C4.A12.P121
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices of other manufacturers. The switchboard is equipped with the following components: power supply 12VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, dimensions: 400 x 300 x 200 mm
Order code: 5-410-600
Availability: Full-scale production
OH4320-C4.A12.P481
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: power supply 48VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, dimensions: 400 x 300 x 200 mm
Order code: 5-410-400
Availability: Full-scale production
OH4320-C4.R.SE
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices of other manufacturers. The switchboard is equipped with the following components: circuit breaker 4A, current protector, socket 230VAC type E (CZ), dimensions: 400 x 300 x 200 mm
Order code: 5-401-010
Availability: Full-scale production
OH4320-C4.A12.R.P121.SF
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. Devices from other manufacturers can also be installed in the switchboard. The switchboard is equipped with the following components: socket 230VAC type F (DE), power supply 12VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-620
Availability: Full-scale production
OH4320-C4.A12.R.P241.SE
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. Devices from other manufacturers can also be installed in the switchboard. The switchboard is equipped with the following components: socket 230VAC type E (CZ), power supply 24VDC/120W, surge protection 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-510
Availability: Full-scale production
OH4320-C4.A12.R.P241.SF
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. Devices from other manufacturers can also be installed in the switchboard. The switchboard is equipped with the following components: socket 230VAC type F (DE), power supply 24VDC/120W, surge protector 1st + 2nd stage, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 5-411-520
Availability: Full-scale production
OH4320-C4.P121
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: circuit breaker 4A, power supply 12VDC/120W, dimensions: 400 x 300 x 200 mm
Order code: 5-400-600
Availability: Full-scale production
OH4320-C4.P241
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: circuit breaker 4A, power supply 24VDC/120W, dimensions: 400 x 300 x 200 mm
Order code: 5-400-500
Availability: Full-scale production
OH4320-C4.P481
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: circuit breaker 4A, power supply 48VDC/120W, dimensions: 400 x 300 x 200 mm
Order code: 5-400-400
Availability: Full-scale production
OH4320-C4.R.SF
Outdoor steel switchboard compliant with EN 61439-1 (certified by TUV SUD). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be equipped with devices from other manufacturers. The switchboard is equipped with the following components: circuit breaker 4A, current protector, socket 230VAC type F (DE), dimensions: 400 x 300 x 200 mm
Order code: 5-401-020
Availability: Full-scale production
OH4320-C4.R.P482.SE
Outdoor steel switchboard compliant with EN 61439-1 (TUV SUD certified). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard can also be used to install other manufacturers' equipment. The switchboard is equipped with the following components: 230VAC socket type E (CZ), power supply 48VDC/240W, circuit breaker 4A, current protector, dimensions: 400 x 300 x 200 mm
Order code: 0-000-053
Availability: Production to order
OH4320-C4.A3.P482
Outdoor steel switchboard compliant with EN 61439-1 (TUV SUD certified). The switchboard is optimized especially for outdoor installations of industrial switches, PLCs and METEL IO modules. The switchboard is equipped with the following components: power supply 48VDC/240W, surge protection 1st + 2nd stage, circuit breaker 4A, dimensions: 400 x 300 x 200 mm
Order code: 0-000-052
Availability: Production to order
Specifications
Technical parameters
| MECHANICS | |
|---|---|
| Dimensions - h / w / d | 400 x 300 x 200 mm |
| Pins | 10 (PG11) |
| Material | Galvanized steel |
| Surface treatment | Epoxy-polyester (grey RAL 7035) |
| Weight | Max. 7 kg (without accessories) |
| Tamper | NC, max. 24 V / 100 mA |
| Mechanical protection | IK10 |
| Degree of coverage | IP66 |
| ENVIRONMENT | |
|---|---|
| Operating temperature | –40…+70 °C |
| Storage temperature | –40…+70 °C |
| Humidity | Max. 95 % |
| JISTIČ | |
|---|---|
| Rated working voltage | 230 VAC |
| Rated current | 4 A |
| Tripping characteristic | C |
| Rated short-circuit capability | 6 kA |
| SURGE PROTECTION | |
|---|---|
| Type | T1, T2, T3 |
| Rated operating voltage | 230 VAC |
| Voltage protection level at the In input | 1,25 kV |
| Pulse discharge current for Class I test (10/350) | 12.5 kA |
| CURRENT PROTECTOR | |
|---|---|
| Rated working voltage | 230 VAC |
| Type | A |
| Rated residual current | 30 mA |
| Rated short-circuit capability | 6 kA |
| POWER SUPPLIES | |
|---|---|
| Input voltage (50 Hz) | 88 to 264 VAC |
| Rated power | 120 W | 240 W |
| Output voltage 12 VDC | 12 - 14 VDC |
| Output voltage 24 VDC | 24 - 28 VDC |
| Output voltage 48 VDC | 48 - 55 VDC |
| 230 VAC SOCKET | |
|---|---|
| Rated working voltage | 230 VAC |
| Type E | With protective pin |
| Type F | Schuko design |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| EN 55022 | EMC - Emissions requirements | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 61439-1 | Low voltage switchboards | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
