LAN-EXT
- 100 BASE-TX ethernet extension
- PoE/PoE+ power extension
- Overvoltage protection of LAN ports 30A 8/20µs
- Protection against ESD according to IEC 61000-4-2 ±15kV
- Compatible with PoE according to IEEE 802.3af and at
- Operating temperature from −40°C to +70°C
Extenders are a simple solution if you need to extend your LAN or LAN with PoE by another 100m. Their big advantage is that they do not require additional power supply and can be powered from PoE directly via UTP/FTP cable.
The devices are developed and manufactured in the EU and are NDAA compliant.
Models

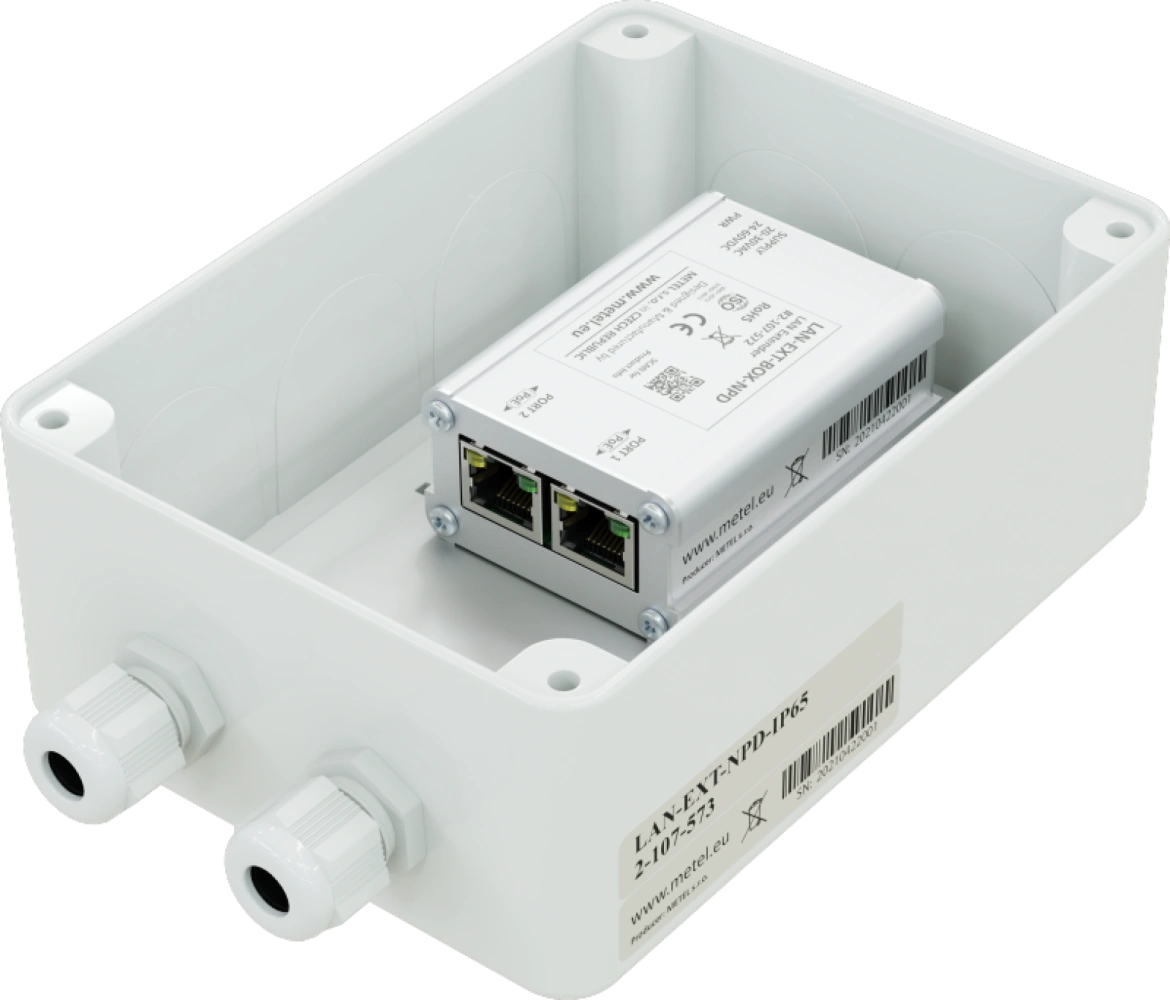

LAN-EXT-NPD-IP65
LAN and PoE extender, suitable for extending LAN and PoE by 100m. In case of using 2 pieces, it extends LAN and PoE up to 300m. In the entire length of transmission guarantees a throughput of 100Mbps in full duplex mode. After connecting a switch / injector with PoE support according to IEEE 802.3af or IEEE 802.3at standards, the extender waits for the moment when the end PoE PD device (camera, sensor) is detected and classified. After that, it turns on and begins to leak data. Power supply via PoE only, 2x PG9 grommet
Order code: 2-107-573
Availability: Full-scale production

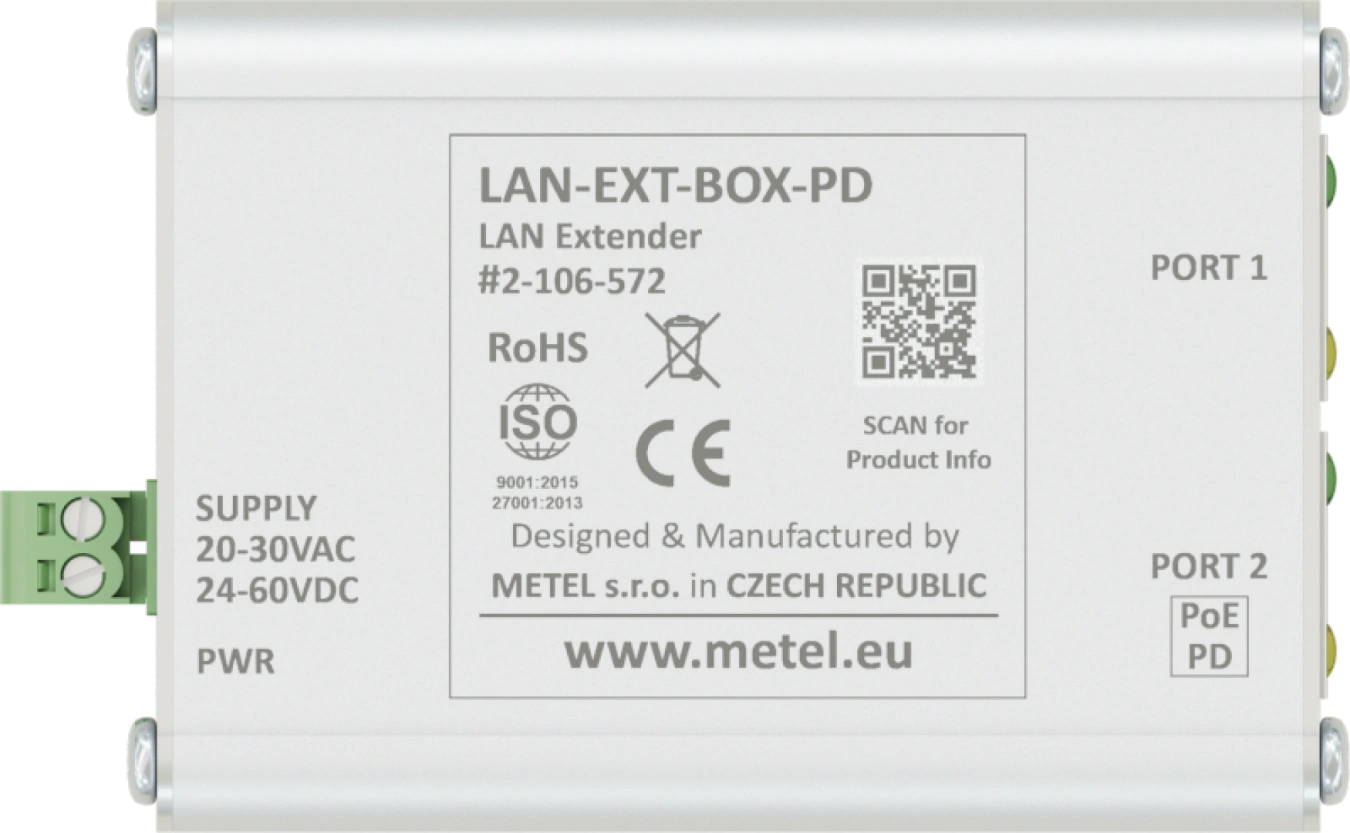

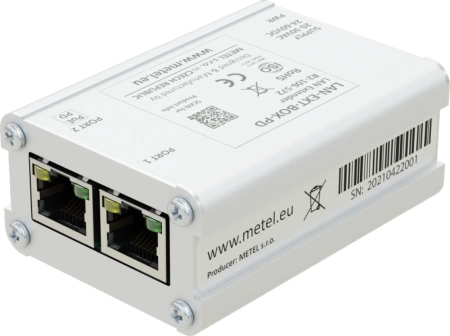

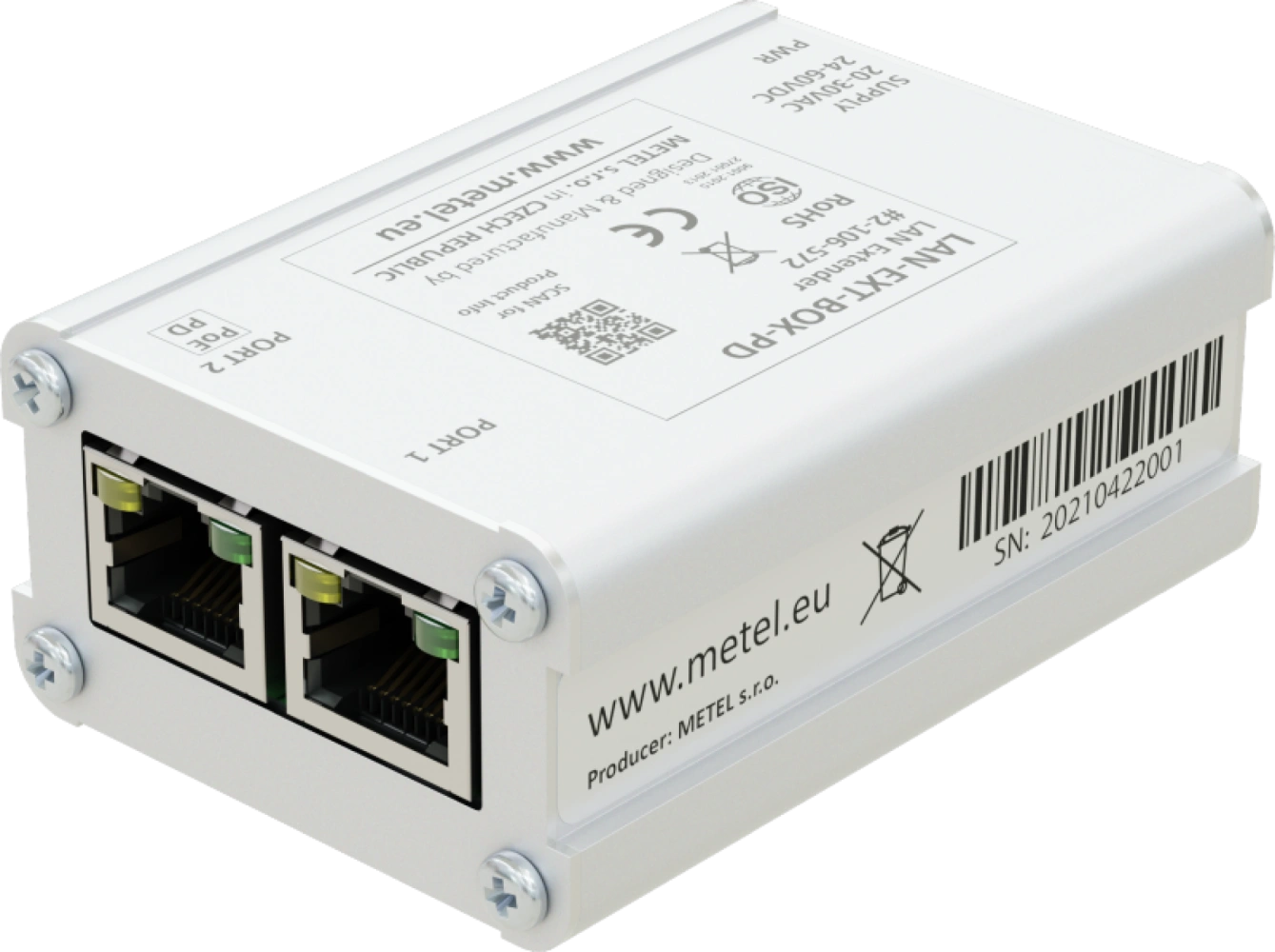

LAN-EXT-BOX-PD
LAN extender suitable for LAN extension by 100m. It guarantees 100Mbps throughput in full duplex mode over the entire length of the transmission. The extender includes PoE-PD (power device), a circuit supporting standard detection and classification mechanisms according to IEEE 802.3af and IEEE 802.3at standards.
Order code: 2-106-572
Availability: Full-scale production

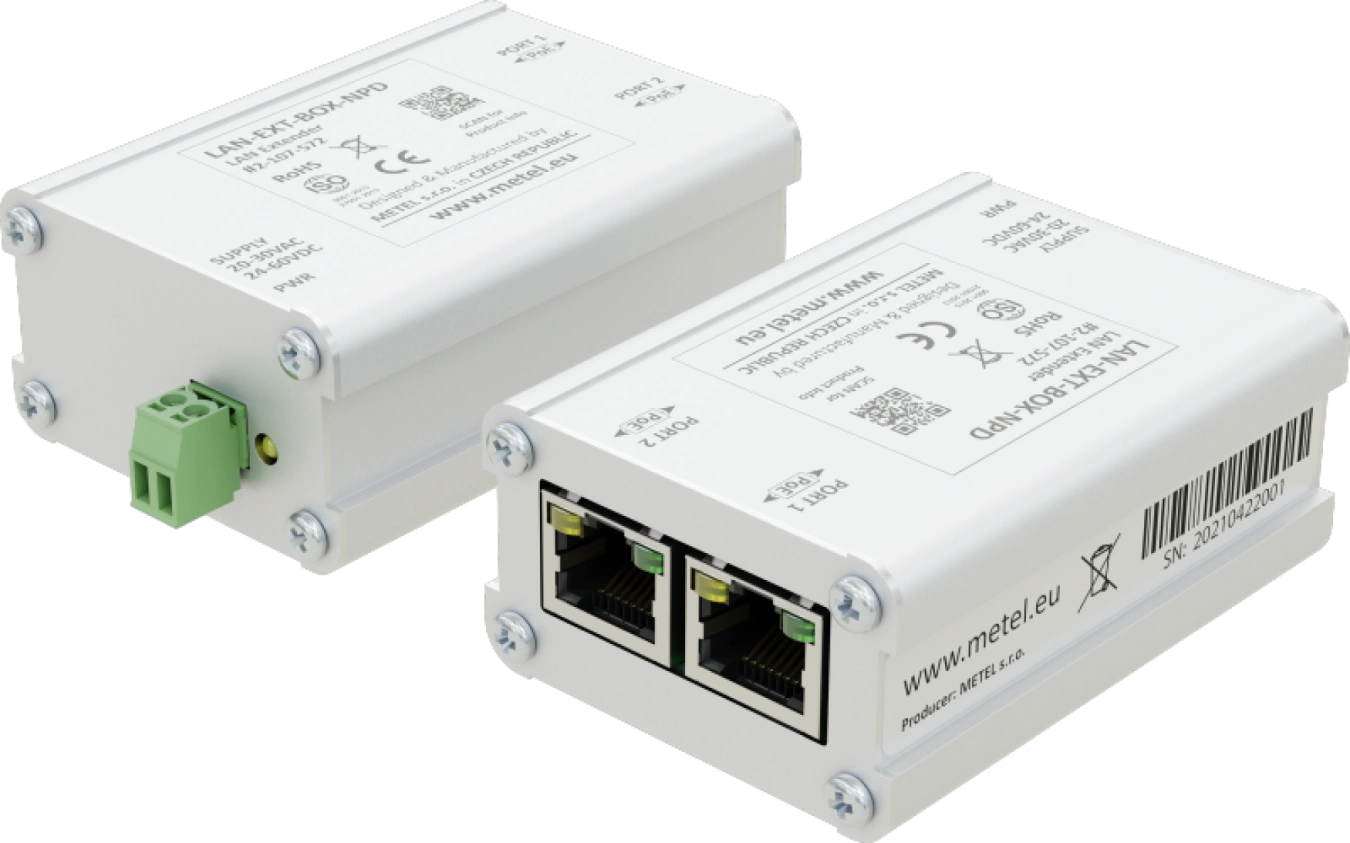

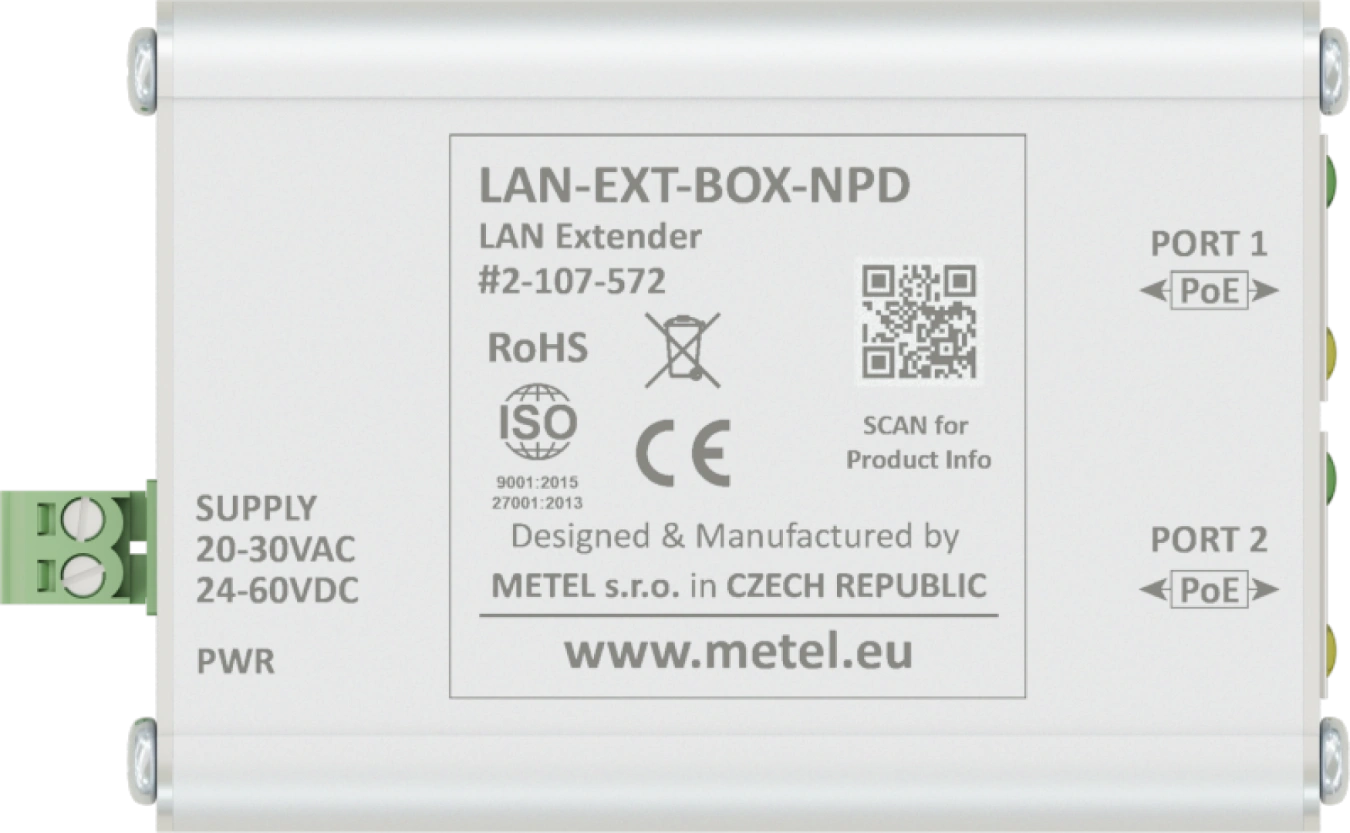

LAN-EXT-BOX-NPD
LAN and PoE extender, suitable for extending LAN and PoE by 100m. In case of using 2 pieces, it extends lan and PoE up to 300m. In the entire length of transmission guarantees a throughput of 100Mbps in full duplex mode. After connecting a switch / injector with PoE support according to IEEE 802.3af or IEEE 802.3at standards, the extender waits for the moment when the end PoE PD device (camera, sensor) is detected and classified. After that, it turns on and begins to leak data.
Order code: 2-107-572
Availability: Full-scale production
Specifications
Technical parameters
| FAST ETHERNET | |
|---|---|
| Count | 2 |
| Supported formats | 100 BASE-Tx |
| Surge protection | 30 A waveform 8/20 μs |
| POWER | |
|---|---|
| PoE | IEEE 802.3af, at |
| Input voltage range | 20 - 30 VAC / 24 - 60 VDC |
| Power consumption | Max. 1.5 W |
| Surge protection | 600 W waveform 10/1000 μs |
| ENVIRONMENT | |
|---|---|
| Operating temperature | –40…+70 °C |
| Storage temperature | –40…+70 °C |
| Humidity | Max. 95 % |
| MECHANICAL | |
|---|---|
| Weight | 0.16 kg / 0.36 kg (BOX / IP65) |
| Dimensions BOX - h / w / d | 32 x 52 x 82 mm |
| Dimensions IP65- h / w / d | 73 x 114 x 184 mm |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| Standards and protocols | |
|---|---|
| LAN | 10/100BASE-T |
Downloads
AutoCad
LAN-EXT-NPD
.dwg
LAN-EXT-NPD
.pdf
LAN-EXT-NPD-IP65
.dwg
LAN-EXT-NPD-IP65
.pdf
LAN-EXT-PD
.dwg
LAN-EXT-PD
.pdf
Catalogue sheet
LAN-EXT
.pdf
Other
Maintenance plan
.pdf
Package contents
- LAN Extender

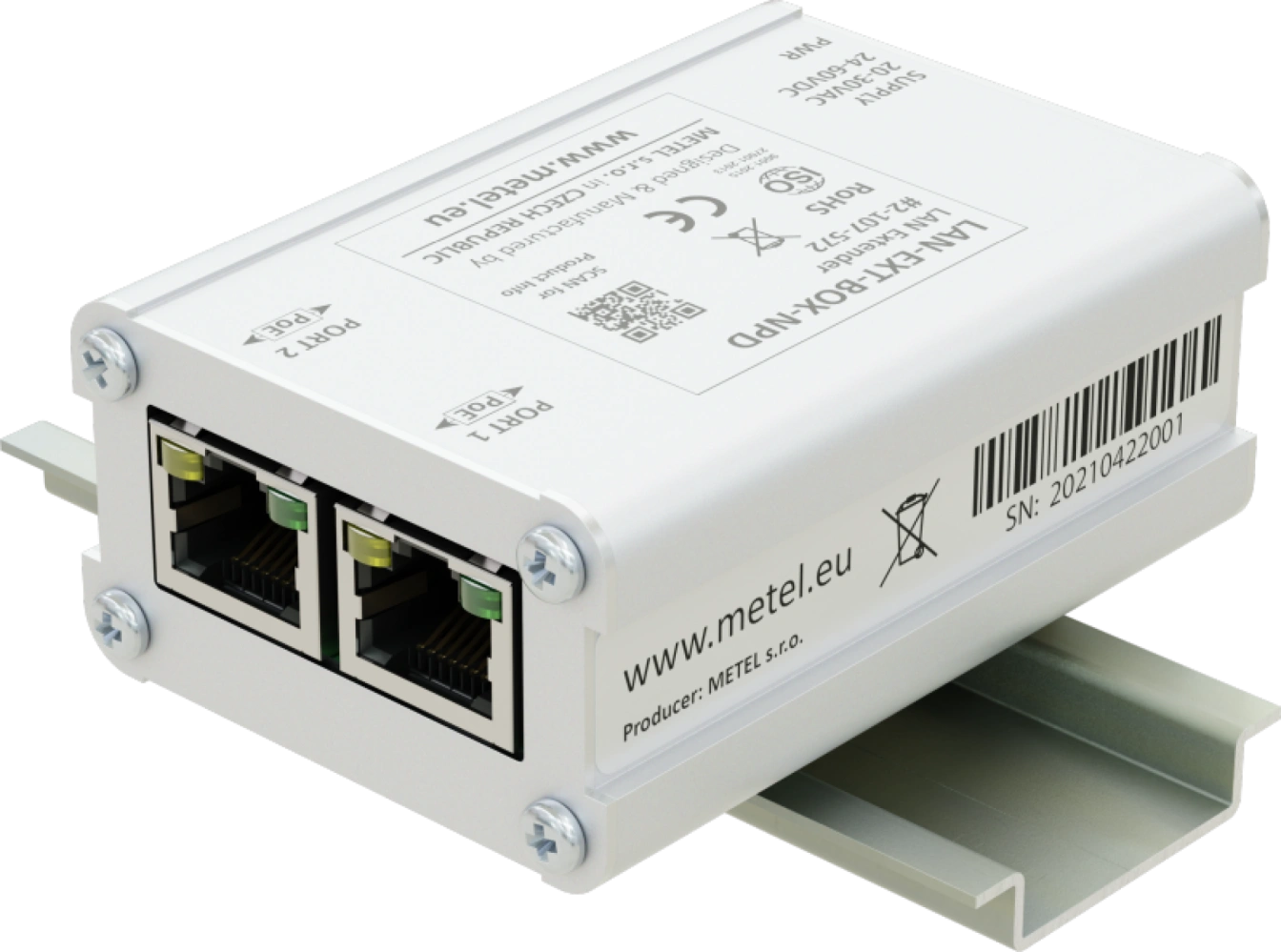

- DIN rail mounting kit

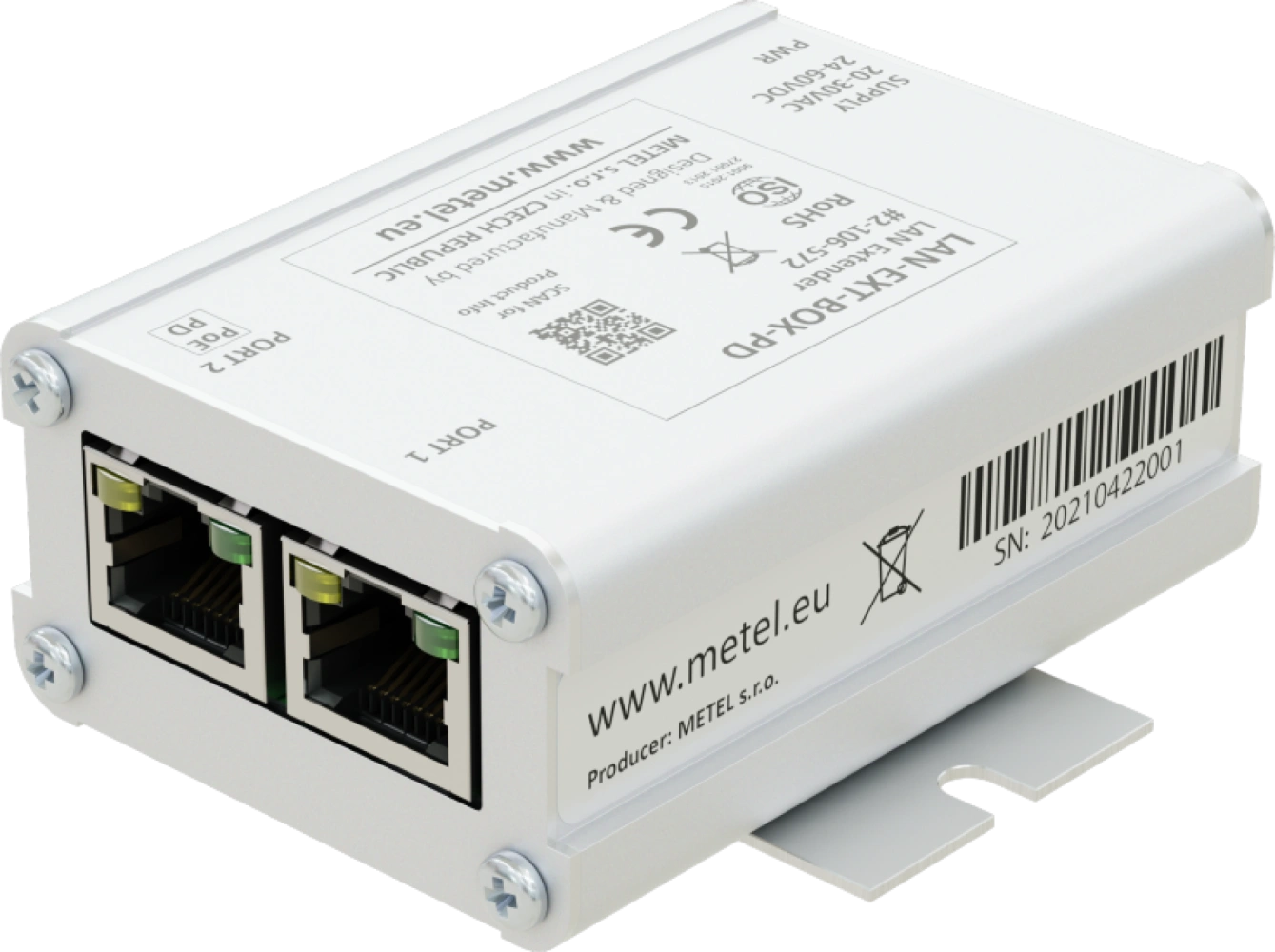

- Mounting kit for mounting on a flat surface
