PLC DIN series
- PLCs with IEC 61131-3 IDE, GUI, SSH, and Web configuration tools
- A wide range of digital and analog inputs and outputs
- Modbus, Wiegand, 1-Wire, Dali, RS485, and more interfaces
- Secure solution with SSH, openVPN, SNMPv3, 802.1X, Secureboot
- Integration for Sicurit, Bosch, Mobotix, Pelco, V-Alert, Avigilon...
- Support of FVE systems including cloud for management and AI
- Integration of PIDS systems with IP cameras
- Reading and processing of Onvif events
- OFF-GRID measuring stations with LTE connectivity

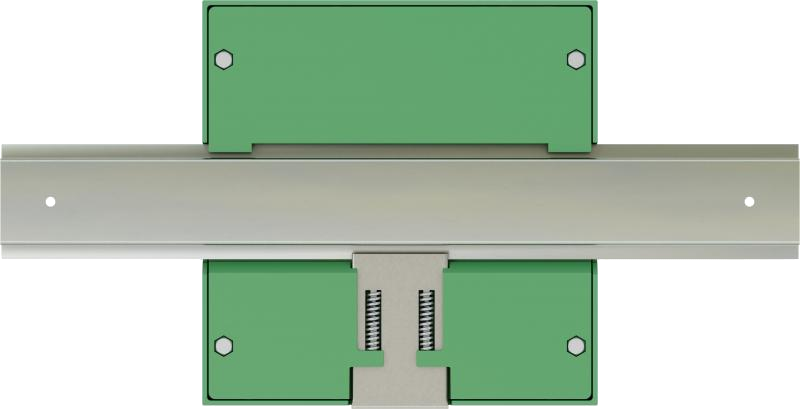

The IPLOG-Gx DIN series of PLCs is easily adaptable to various applications and suitable for installation in domestic distribution boards. A wide range of compatible I/O modules allows you to configure numerous combinations of PLCs and I/O modules to meet your requirements. We recommend using the online configurator to quickly select a suitable variant. For quick and easy setup and programming, IDE software supporting the ST, LD, IL and FBD IEC 61131-3 programming languages, a web interface and an SSH console are available.
Custom manufacturing is only possible when ordering larger quantities.
The devices are developed and manufactured in the EU and comply with NDAA requirements.
Models

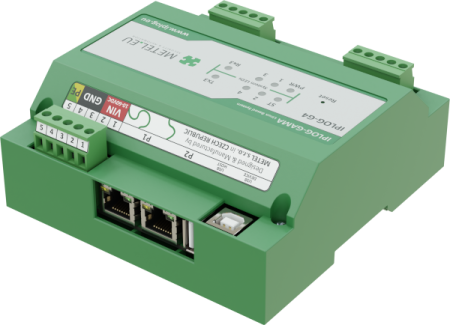

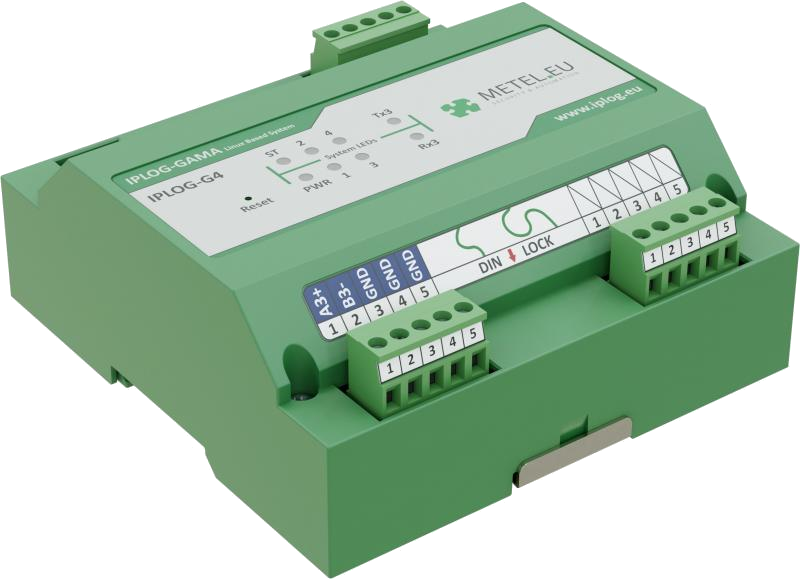

IPLOG-G4-DIN
Motherboard including CPU module version G with CORTEX A5 ARM processor, Linux operating system, 2x LAN 10/100 Base-Tx, 1x USB-A and USB-B, 1x RS485 with Modbus RTU / Bacnet support, 1x IF slot for IF module connection.
Order code: 6800-0000
Availability: Production to order
IPLOG-G5-DIN
Motherboard including CPU module version G with CORTEX A5 ARM processor, Linux operating system, 1x LAN 10/100 Base-Tx, 1x USB-A and USB-B, 2x RS485 with Modbus RTU / Bacnet support, 1x Digital input 230VAC, 1x Analog input 0 to 60VDC, 3x 10-bit alarm / digital 5V inputs, 1x NOC 24V relay output.
Order code: 6900-0000
Availability: Production to order
IPLOG-G6-DIN
Motherboard including CPU module version G with CORTEX A5 ARM processor, Linux operating system, 1x LAN 10/100 Base-Tx, 1x USB-A and USB-B, 2x RS485 with Modbus RTU support, 1x Digital input 230 VAC, 3x 10-bit alarm / digital 5V inputs, 2x NOC 24 V relay output.
Order code: 6300-0000
Availability: Production to order
IPLOG-G7-DIN
Motherboard including CPU module version G with CORTEX A5 ARM processor, Linux operating system, 1x LAN 10/100 Base-Tx, 1x USB-A and USB-B, 2x RS485 with Modbus RTU support, 8x 10-bit alarm / digital 5V inputs, 1x NOC 24 V relay output.
Order code: 6200-0000
Availability: Production to order
IPLOG-G4-01G-DIN
Motherboard including CPU module version G with CORTEX A5 ARM processor, Linux operating system, 2x LAN 10/100 Base-Tx, 1x USB-A and USB-B, 1x RS485 with Modbus RTU / Bacnet support, 2x RS485 with galvanic isolation.
Order code: 6802-0000
Availability: Production to order
Specifications
Technical parameters
| CPU MODULE | |
|---|---|
| Processor | ARM Cortex-A5 Processor with ARMv7-A Thumb-2 Instruction Set |
| Frequency | 536 MHz |
| OS | Linux |
| RAM | 512 MiB |
| NAND | 256 MiB (SLC, Micron) |
| FAST ETHERNET | |
|---|---|
| Count | 2 / 1 (G4 / G5) |
| Supported formats | 10BaseT, 100BaseTx |
| Connector | RJ45 |
| USB-A | |
|---|---|
| Count | 1 |
| Standard | USB 2.0 |
| IPLOG Mode | USB host |
| Function | External storage |
| Surge protector | Transil |
| Output current | Max. 500 mA |
| USB-B | |
|---|---|
| Count | 1 |
| Standard | USB 2.0 |
| IPLOG Mode | USB device |
| Function | Local management |
| Surge protector | Transil |
| POWER | |
|---|---|
| Input voltage range | 10 - 60 VDC |
| Power consumption | 3 W |
| ENVIRONMENT | |
|---|---|
| Operating temperature | –40…+70 °C |
| Storage temperature | –40…+70 °C |
| Humidity | Max. 95 % |
| MECHANICAL | |
|---|---|
| Weight | |
| Dimensions - h / w / d | 123 x 120 x 49,5 mm |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 61131-2 | Programmable control units | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| Standards and protocols | |
|---|---|
| EN 61131-3 | FBD, IL, ST, LD |
