SIMULand.v4
- SIMULand.v4 is the configuration software for all METEL IP devices

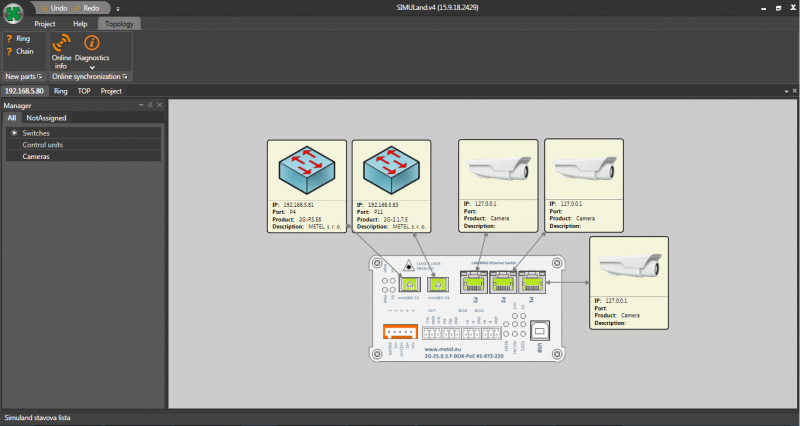

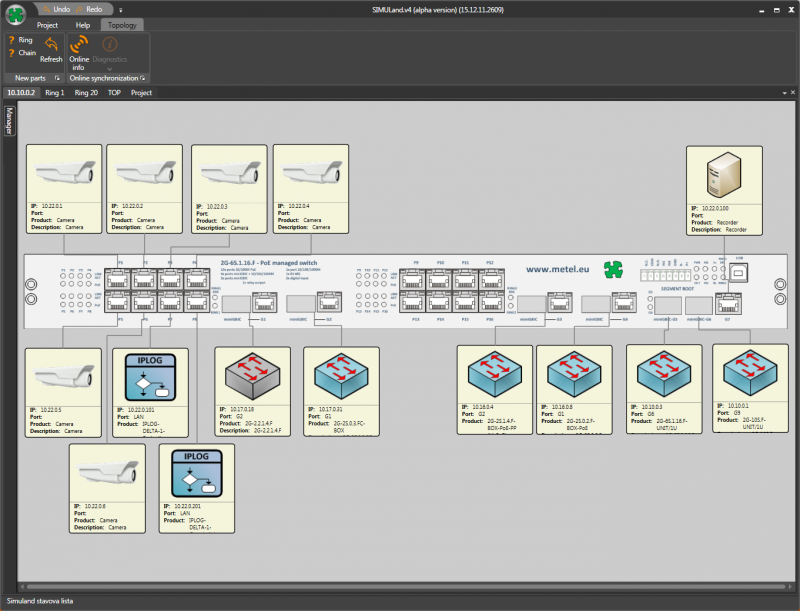

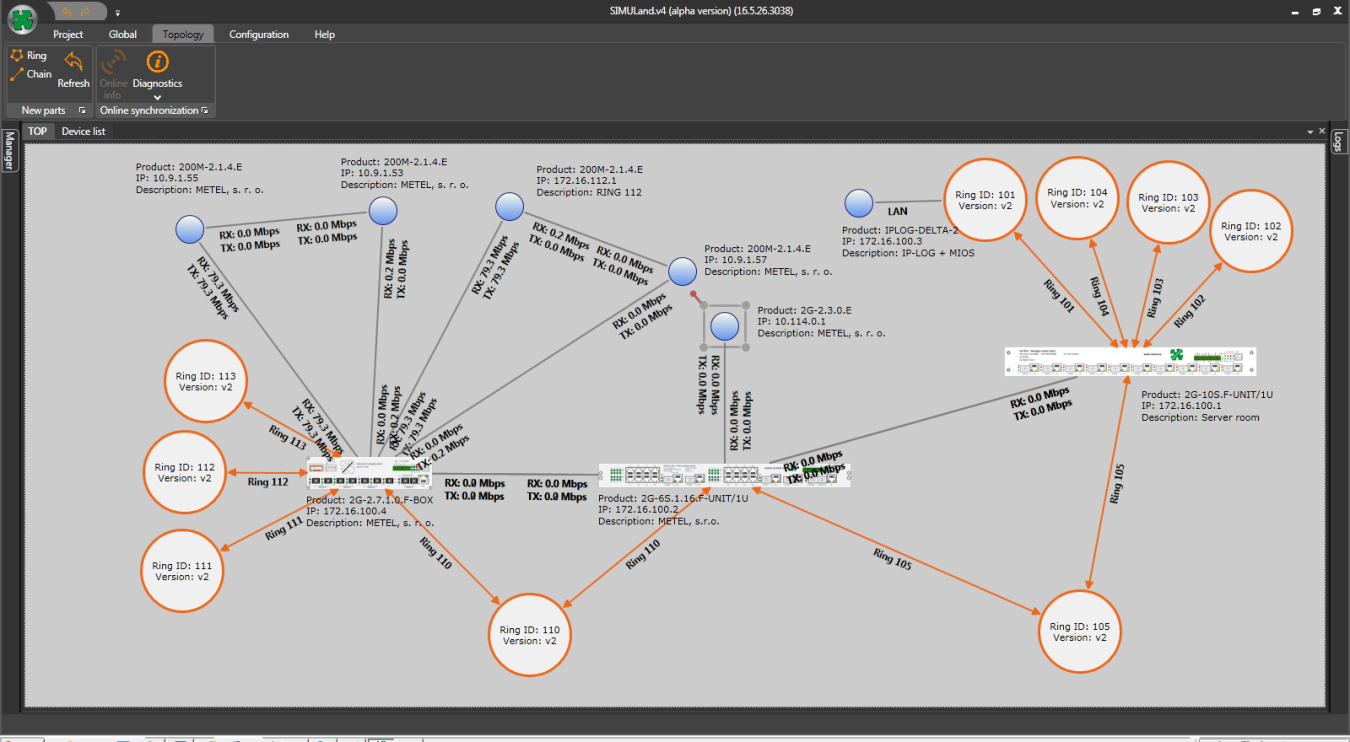

- Automatic topology detection and rendering (FW 56 and higher)
- Support for manual placement in the topology of all older METEL devices
- Display of the state of optical and metallic connections
- Display the amount of data transferred in Mbps on root ports
- Displaying the amount of dropped packets on ports
- View PoE status
- Power status display
- Displaying the status of inputs / outputs / ports

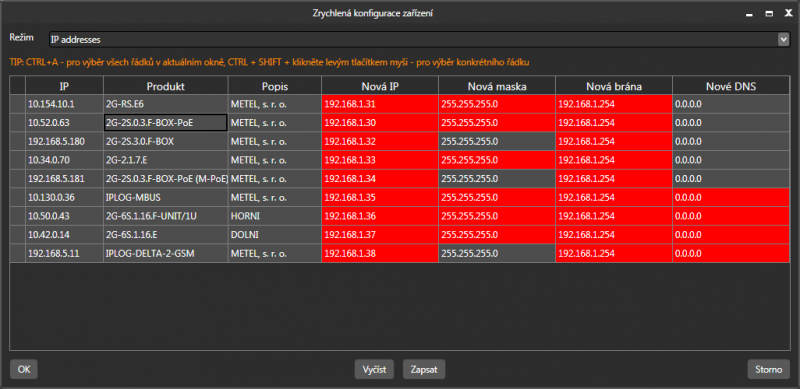

- Menu for quick configuration
- Compatible with Windows 7, 8, 8.1, 10 and 11
- Support USB / LAN configuration
- Encrypted communication with devices
- Freeware
SIMULand.v4 is configuration software for all METEL IP devices. In an intuitive graphical interface, you can quickly and easily locate devices available on the LAN, change their configuration or firmware in bulk, scan and display the system topology.....
Models
SIMUland.v4
SIMULand.v4 is configuration software for all METEL IP devices with automatic topology detection and rendering (FW 56 and higher), support for manual topology placement of all older METEL devices and cameras, servers, clients. Other diagnostic tools: display of optical and metallic links status, display of data transferred in Mb/s on links, display of dropped packets on ports, display of PoE status, display of power status, display of I/O/port status. Other important features: quick menu, USB/LAN configuration support, encrypted communication with devices. SIMULand.v4 is a freeware application compatible with Windows 7, 8, 8.1, 10 and 11.
Order code: 8-000-009
Availability: Full-scale production
Downloads
Application notes
SIM4 without internet
.pdf
Drivers and software
SIMULand.v4
.msi
