SHELF-IPLOG
- Retractable version 19
- 2 horizontal positions for IPLOG and IO modules
- Including 25W power source 230VAC/48VDC
- SHELF-IPLOG-1U/SU
- - size 19"/1U
- - suitable for IPLOG without an IO module on the MOTHERBOARD or a separate IO module
- SHELF-IPLOG-2U/SU
- - size 19"/2U
- - suitable for IPLOG with IO module on MOTHERBOARD

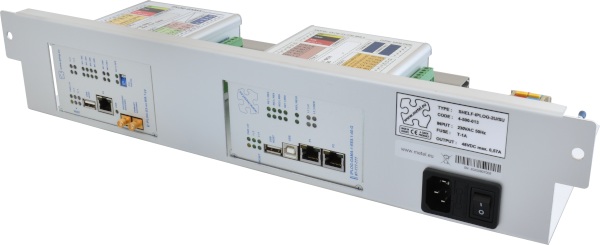

Pull-out design 19", easy installation, 2 horizontal positions for IPLOG and IO modules, including 25W power supply 230 VAC/48 VDC.
Models
SHELF-IPLOG-1U/SU
Pull-out design 19"/1U, easy installation, 2 horizontal positions for IPLOG without IO module on base board and IO modules, including 25W power supply 230VAC/48VDC
Order code: 4-500-012
Availability: Full-scale production
SHELF-IPLOG-2U/SU
Pull-out design 19"/2U, easy installation, 2 horizontal positions for IPLOG with IO module, including 25W 230VAC/48VDC power supply
Order code: 4-500-013
Availability: Full-scale production
Specifications
Technical parameters
| COMPATIBLE DEVICES | |
|---|---|
| Device | IPLOG-G1 - G3 without IO module |
| Power supply | 230VAC/48VDC-25W |
| Device | IPLOG-G1 - G3 |
| IO module | Any IO module |
| Power supply | 230VAC/48VDC-25W |
| MECHANICAL | |
|---|---|
| Dimensions - h / w / d | 19˝ x 2U(1U) x 152 mm |
| Device count | 2 |
| Material | Al sheet |
| Degree of coverage | IP20 |
| Weight | 1 kg (without devices mounted) |
| POWER SUPPLY | |
|---|---|
| Output voltage | 48 VDC |
| Power | 25 W |
| Efficiency | 85 % |
| Operating temperature | -20….+70 °C (100% power at max. +50°C) |
| +70°C - max. 60% power | |
| Input voltage | 88 - 264 VAC |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 50130-4 ed. 2 | Alarm systems - Part 4: Electromagnetic compatibility | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
