Pull-out shelves 19"/4U

‌Pull-out shelves 19"/4U‌
  • Pull-out version 19"/4U
  • Compatible with PoE, PoE+, PoE++
  • Adjustable output voltage 48-56VDC
  • SHELF-4U/IP-SU120
  • Maximum power: 120W
  • SHELF-4U/IP-SU240
  • Maximum power: 240W

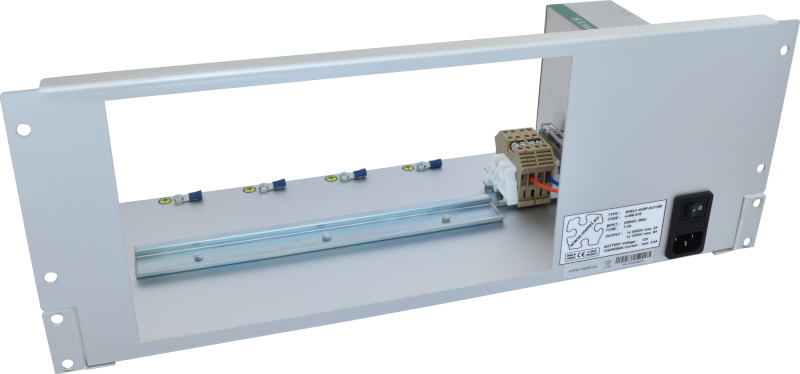

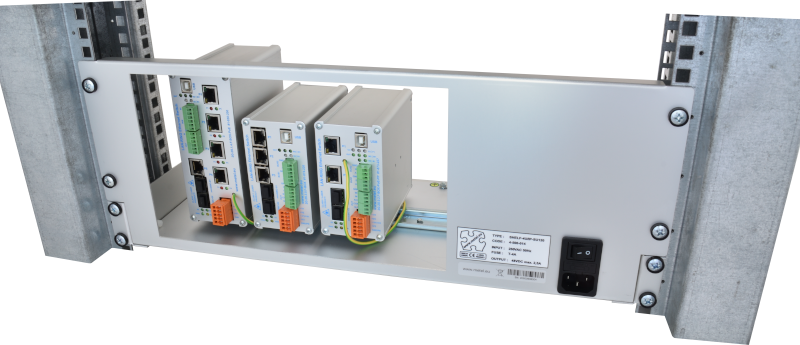

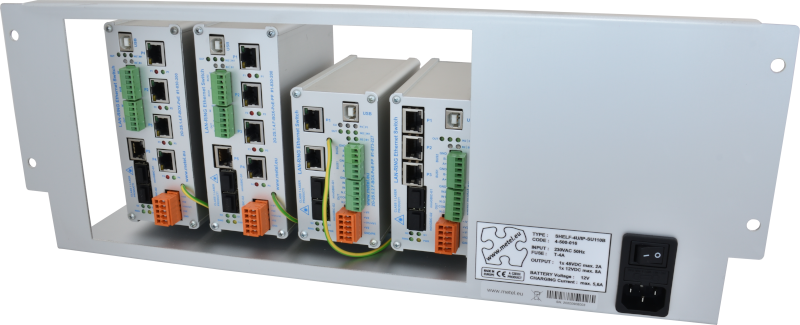

The 19" SHELF-4U/IP-SU racks are designed for fast and professional mounting of industrial LAN-RING switches and media converters in 19" racks. Included are guides to allow partial or complete removal of the shelf from the 19" rack.

Models

SHELF-4U/IP-SU120

Pull-out design 19"/4U, easy installation, compatible with PoE, PoE+, PoE++, power supply with adjustable output voltage 48-56VDC, maximum power 120W

Order code: 4-500-014

Availability: Full-scale production

SHELF-4U/IP-SU240

Pull-out design 19"/4U, easy installation, compatible with PoE, PoE+, PoE++, power supply with adjustable output voltage 48-56VDC, maximum power 240W

Order code: 4-500-015

Availability: Full-scale production

SHELF-4U/IP-SUP-PB7

Pull-out design 19"/4U, easy installation, compatible with PoE, PoE+, PoE++, backup power supply with 48VDC/240W output, space for 4x7Ah.

Order code: 4-500-017

Availability: In development

Specifications

Pull-out shelves 19"/4U

Short catalog Sheet (PDF) EU declaration of conformity (PDF)
Technical parameters
MECHANICAL
Number of slots for switches4
MaterialAL sheet
Weight1.5 kg without switches
Dimensions - h / w / d4U x 483 x 190 mm
Operating temperature–25…+60 °C
SHELF-4U/IP-SU120
Input voltage range207 - 253 VAC
Output voltage range48 - 57 VDC
Power120 W
SHELF-4U/IP-SU240
Input voltage range207 - 253 VAC
Output voltage range48 - 57 VDC
Power240 W
Standards and protocols, EMC and safety
EMC and safety
EN 61000-6-2Immunity - industrial environment
IEEE 1613Environmental and Testing Requirements | Electric Power Substations
EN 50130-4 ed. 2Alarm systems - Part 4: Electromagnetic compatibility
Standards and protocols
EN 55035Immunity requirements
EN 55032Emission requirements
EN 62368-1Safety requirements
EN IEC 63000ROHS

Pull-out shelves 19"/4U PB7

Short catalog Sheet (PDF) EU declaration of conformity (PDF)
Technical parameters
MECHANICS
Number of positions for switch1
MaterialAL sheet metal
Weight
Dimensions - h / w / d
Operating temperature-25...+70 °C
Standards and protocols, EMC and safety
EMC and safety
EN 61000-6-2Immunity - industrial environment
IEEE 1613Environmental and Testing Requirements | Electric Power Substations
EN 50130-4 ed. 2Alarm systems - Part 4: Electromagnetic compatibility
Standards and protocols
EN 55035Immunity requirements
EN 55032Emission requirements
EN 62368-1Safety requirements
EN IEC 63000ROHS
