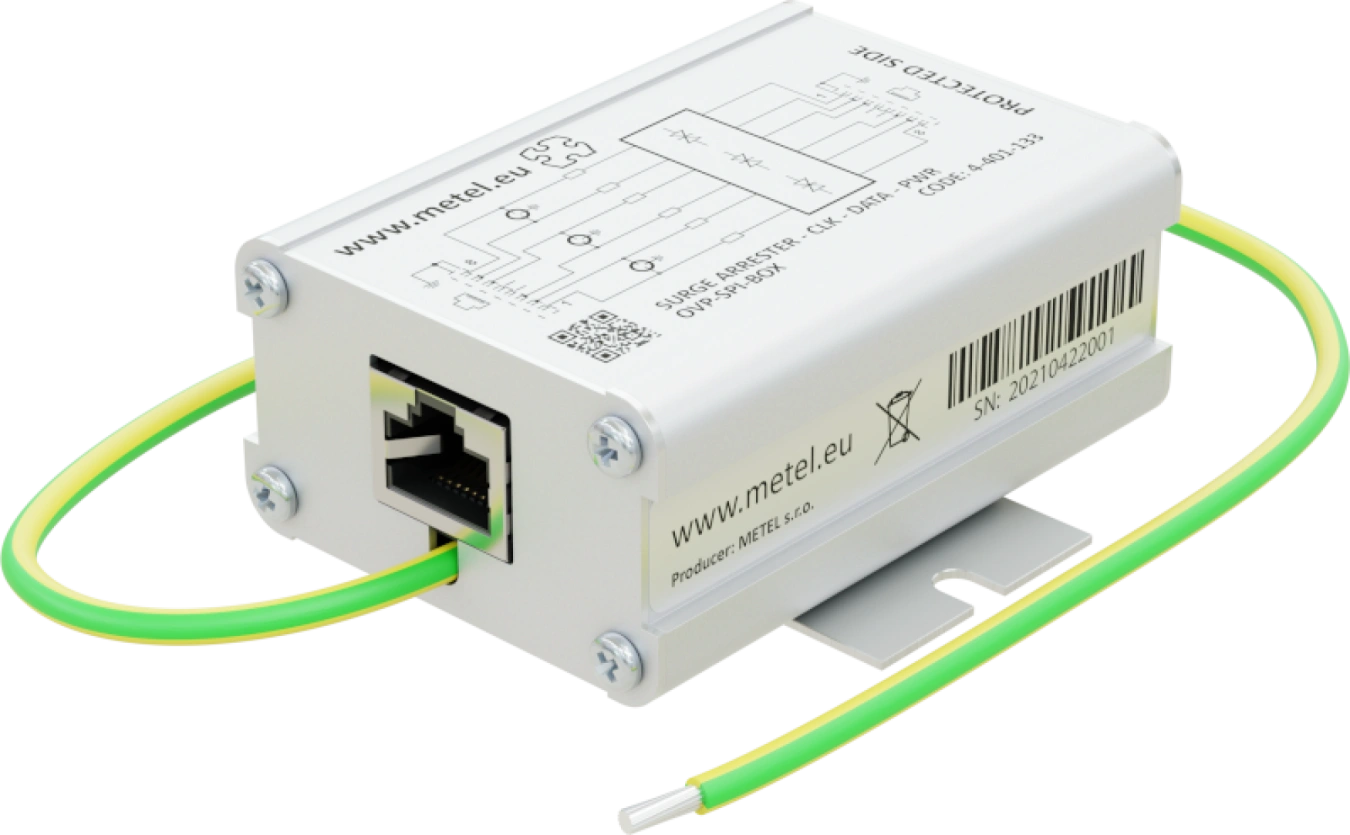

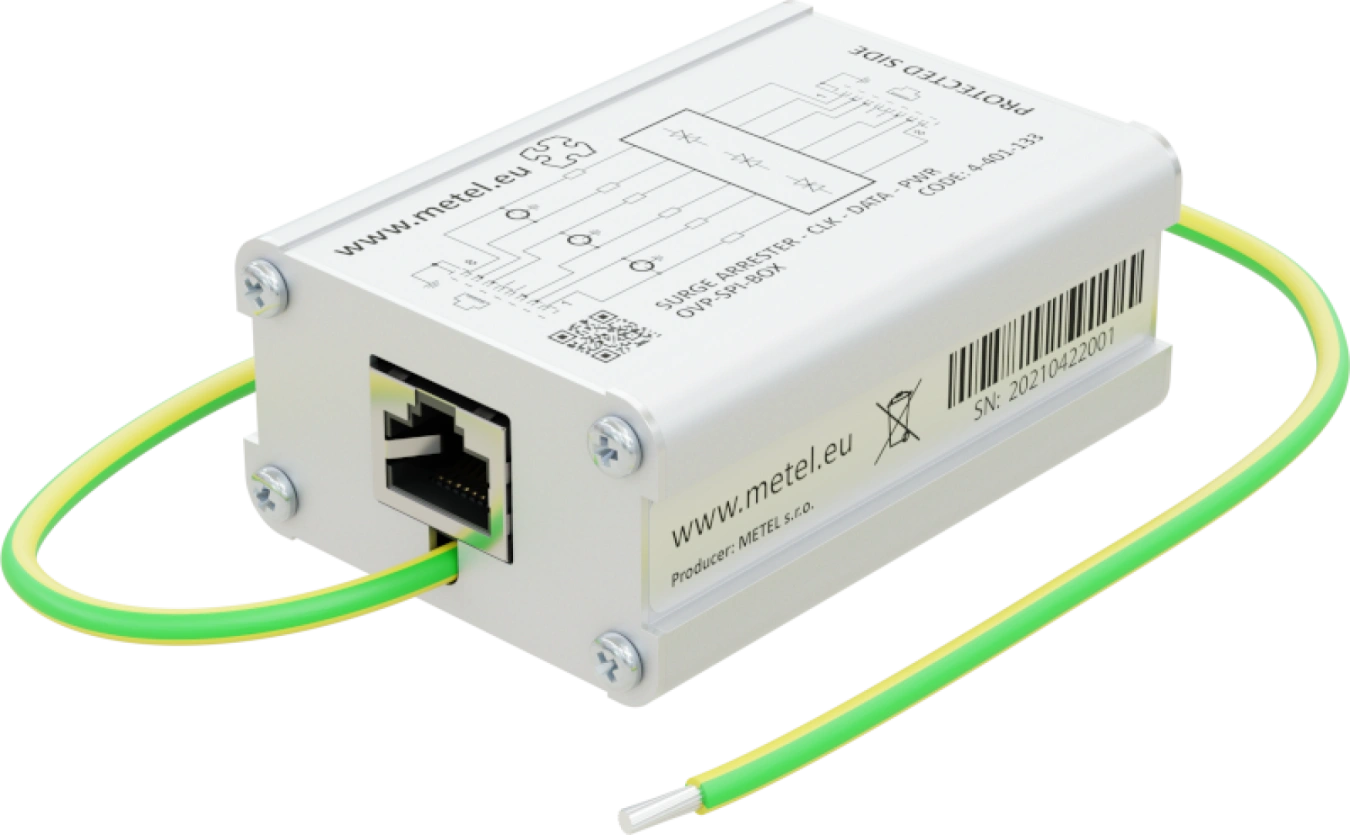

OVP-SPI-BOX
- Surge protector for LED lighting T-REX QUADRIS
- Industrial design

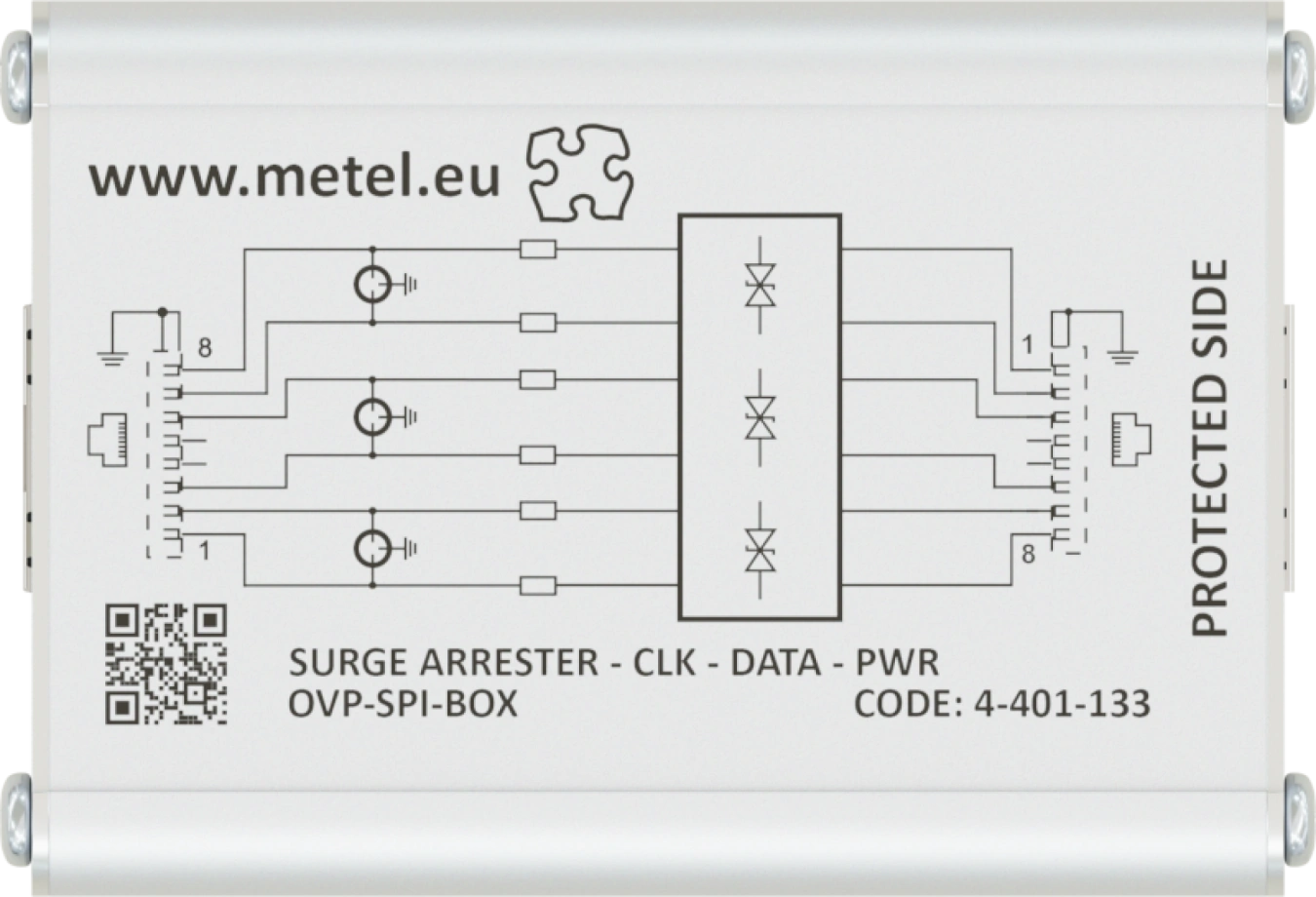

- Two-stage protection
- Galvanically isolated PE clamp
- Operating temperature from -40 °C to +75 °C
The surge protector is designed to protect the differential SPI control of LED lights of the T-REX QUADRIS system. It is connected to the UTP Cat.5 cable between the control unit (T-REX QUADRIS) and the SPI converter DDS1200.
The devices are developed and manufactured in the EU and comply with NDAA requirements.
Models

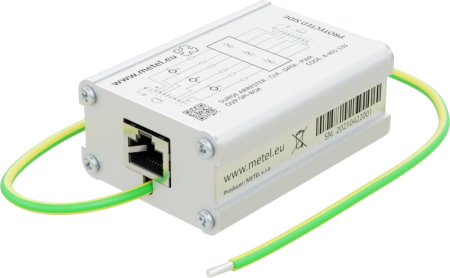

OVP-SPI-BOX
Surge protector SPI for LED lighting T-REX QUADRIS. Galvanically isolated PE terminal, quick installation.
Order code: 4-401-133
Availability: Full-scale production
Specifications
Technical parameters
| RJ45 CONNECTIONS | |
|---|---|
| Pins 1, 2 | CLK+, CLK- |
| Pins 3, 6 | DATA+, DATA- |
| Pins 4, 5 | Unplugged |
| Pins 7, 8 | GND, VAUX+ |
| CLK and DATA PROTECTION | |
|---|---|
| Rated operating voltage | 3.3 VDC |
| Maximum operating voltage | 8.4 VDC |
| C2 rated discharge current | 1000 A waveform 8/20 μs |
| C2 maximum discharge current | 2000 A waveform 8/20 μs |
| PWR PROTECTION | |
|---|---|
| Maximum operating voltage | 10 VDC |
| C2 rated discharge current | 1000 A waveform 8/20 μs |
| C2 maximum discharge current | 2000 A waveform 8/20 μs |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -40...+75 °C |
| Range of storage | -40...+75 °C |
| Humidity | Max. 100% (non-condensing) |
| MECHANICS | |
|---|---|
| Weight | 0,3 kg |
| Dimensions - h / w / d | 31.5 x 51.5 x 76.1 mm |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61643-21 | Surge protectors in telecommunication and signalling networks | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| Standards and protocols | |
|---|---|
| DSPI | Differential Mode SPI transmission |
Downloads
Other
Maintenance plan
.pdf
Package contents
- Surge protection

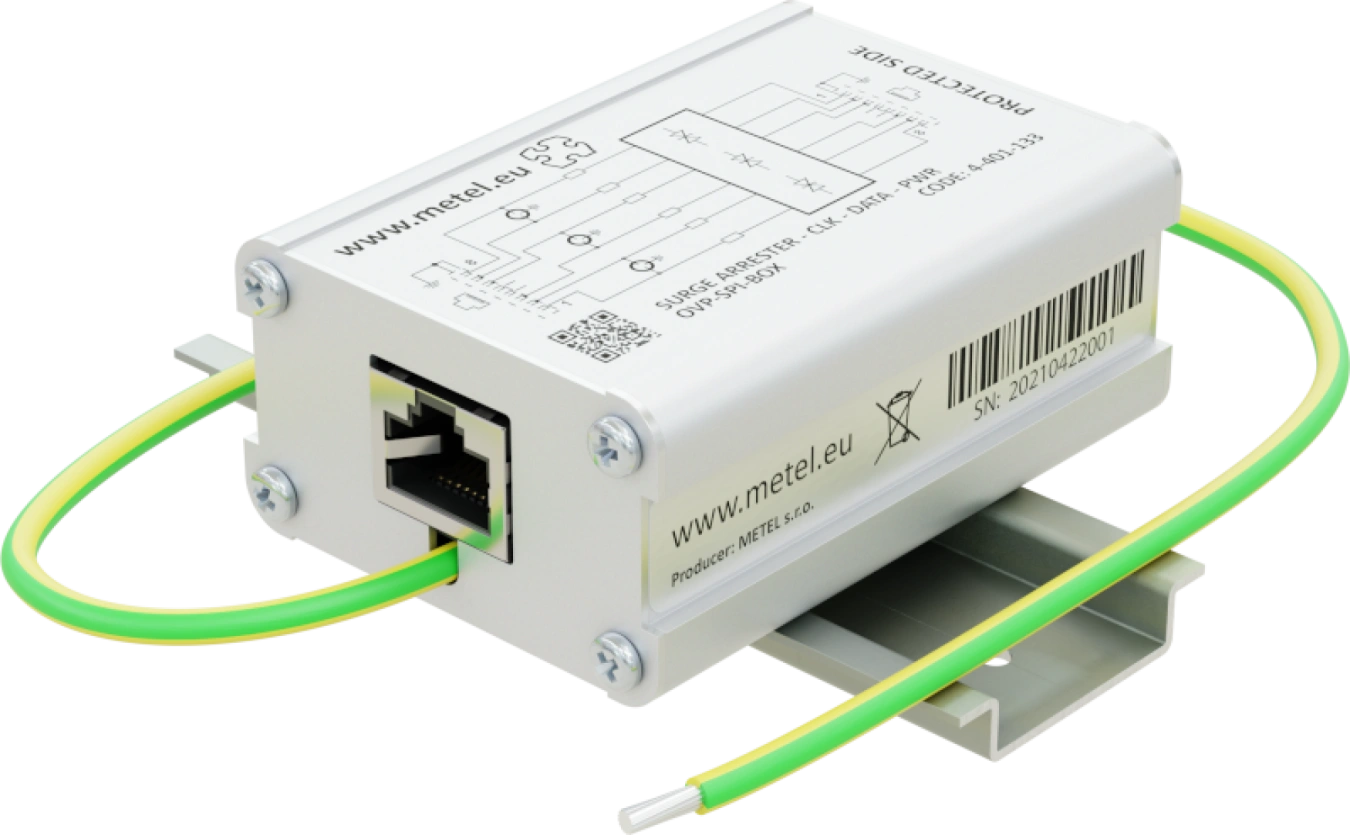

- DIN rail mounting kit
- Mounting kit for mounting on a flat substrate
