OH6425 - according to EN 50131-6

‌‌

Certification according to EN 50131-6
Steel switchboards with IP66 protection
Suitable for outdoor switch installation
Tested according to EN 61439-1
Dimensions: 600x400x250 mm
Free space for backup battery
Optional accessories
- brackets for wall mounting
- brackets for installation on a pole

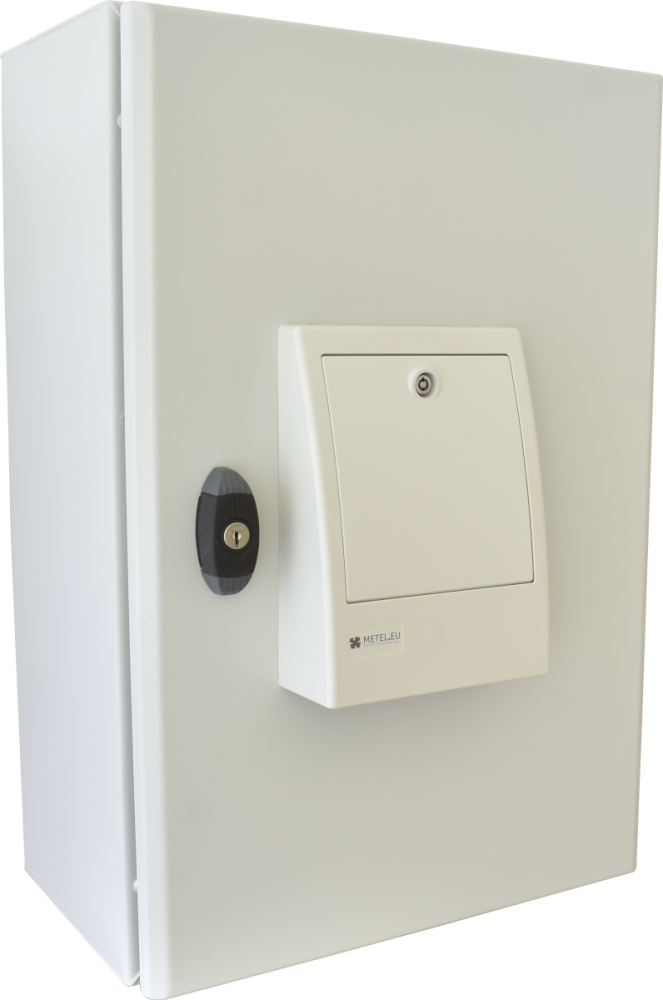

- optical cassette or box

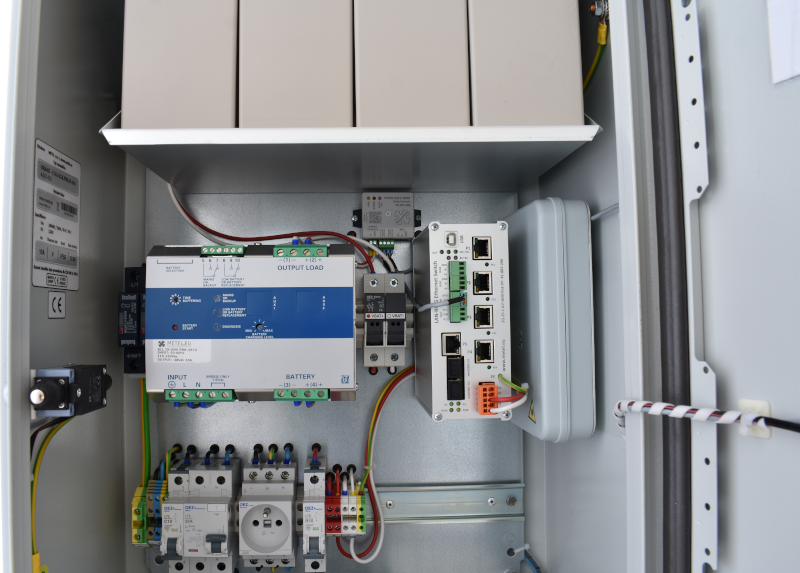

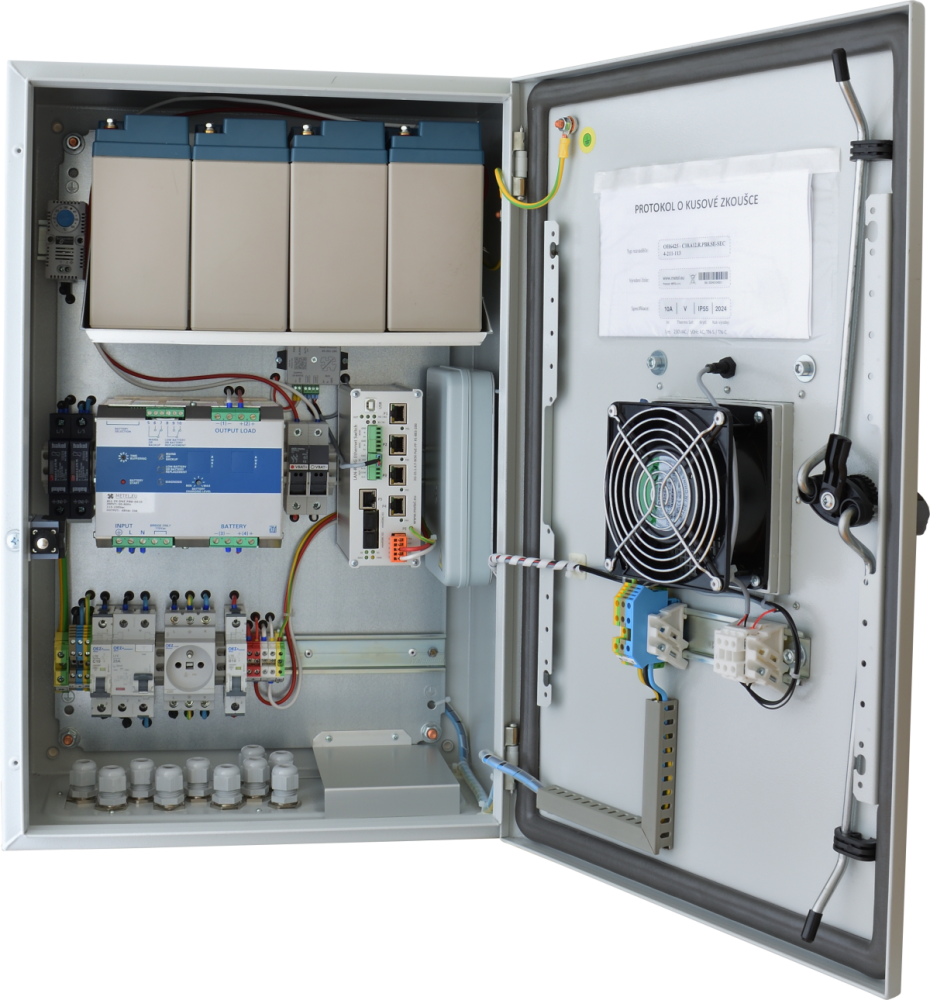

The OH6425 Security series outdoor steel switchboards are designed for outdoor installation of 2G and 20G series industrial switches. Models are available with a backup power supply and a shelf for battery installation. A Wiring Diagram and Unit Test Report are included.

Models

OH6425-C10.A12.R.PB8.SE-SEC

Order code: 4-211-113

Availability: Full-scale production

OH6425-C10.A12.R.PB8.SF-SEC

Order code: 4-211-123

Availability: Full-scale production

Specifications

OH6425 - Security

Short catalog Sheet (PDF) EU declaration of conformity (PDF)

Technical parameters

MECHANICS
Dimensions - h / w / d	600 x 400 x 250 mm

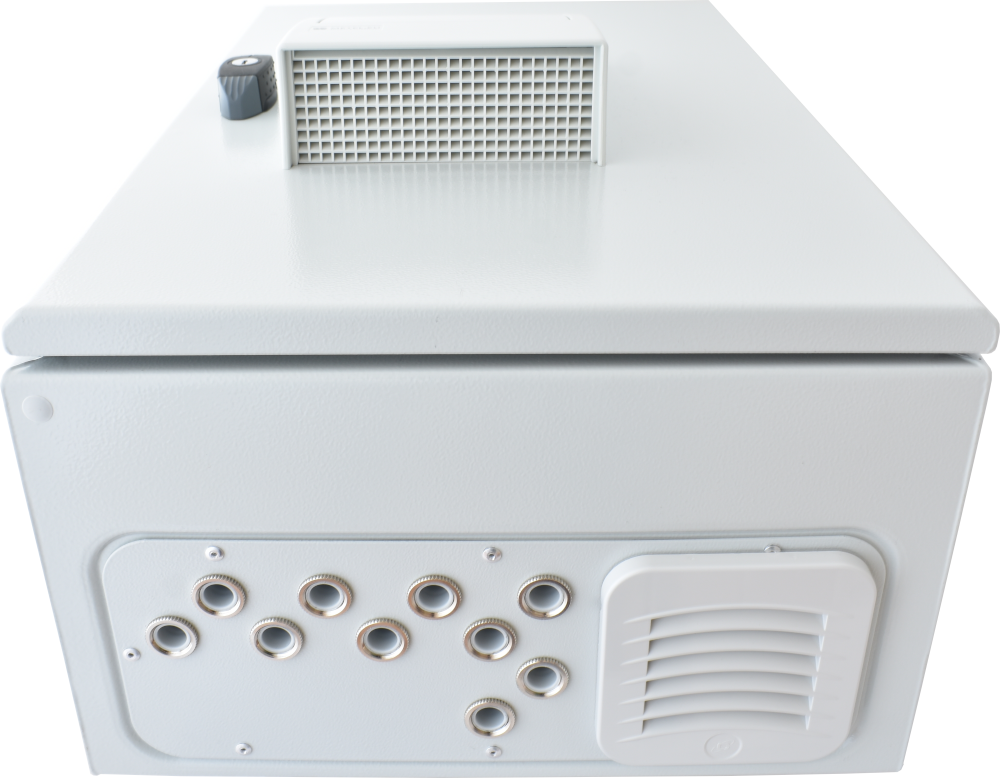

Pins	10 (PG11)
Material and finish	Galvanised steel with epoxy polyester (grey RAL 7035)
Weight	Max. 20 kg (without batteries)
Tamper	Contact NC
Mechanical protection	IK10

JISTIČ
Rated working voltage	230 VAC
Rated current	10 A
Tripping characteristic	C
Rated short-circuit capability	6 kA

SURGE PROTECTION
Type	T1, T2, T3
Rated AC operating voltage	230 VAC
Voltage protection level at the In input	1,25 kV
Pulse discharge current for Class I test (10/350)	12.5 kA
