LFP-MON
- Modbus RTU interface
- 1x programmable relay output
- Power input 10-60 VDC
- Measuring current, voltage, temperature
Temperature, voltage and current measurement system. Compatible with RS485 MODBUS-RTU.
Devices are developed and manufactured in the EU and meet NDAA requirements.
Models

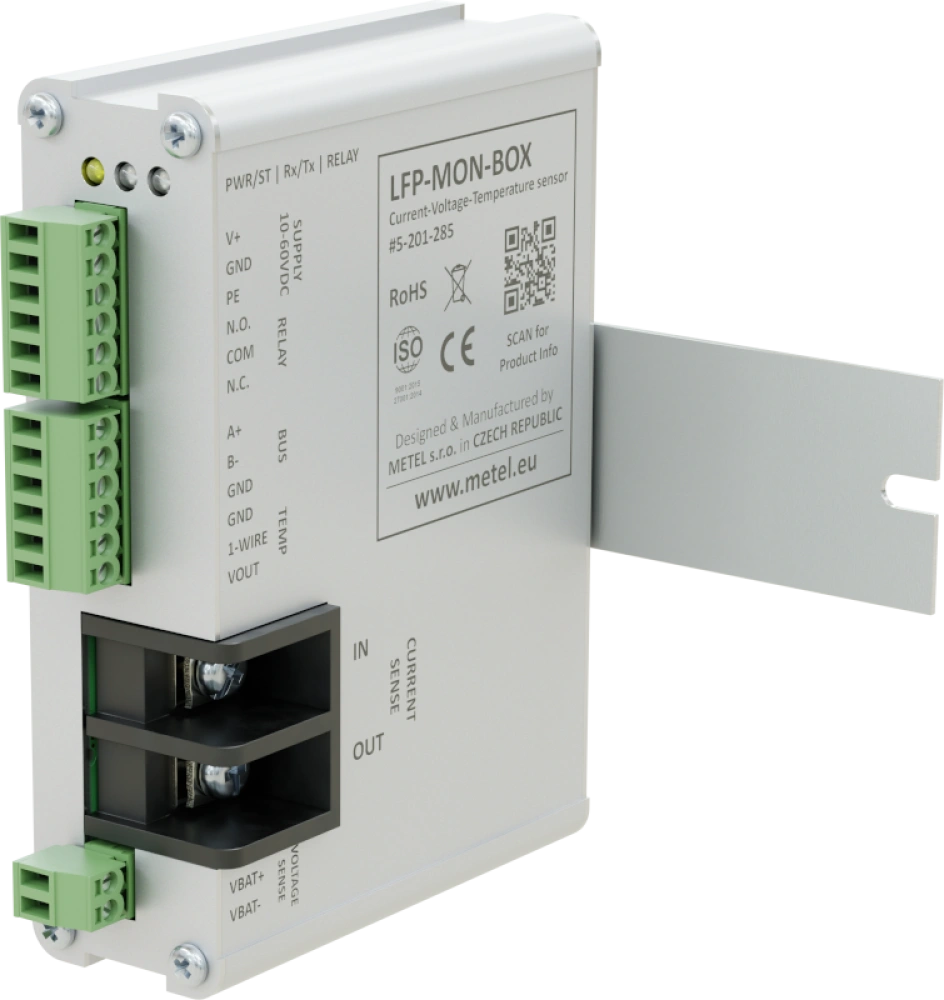

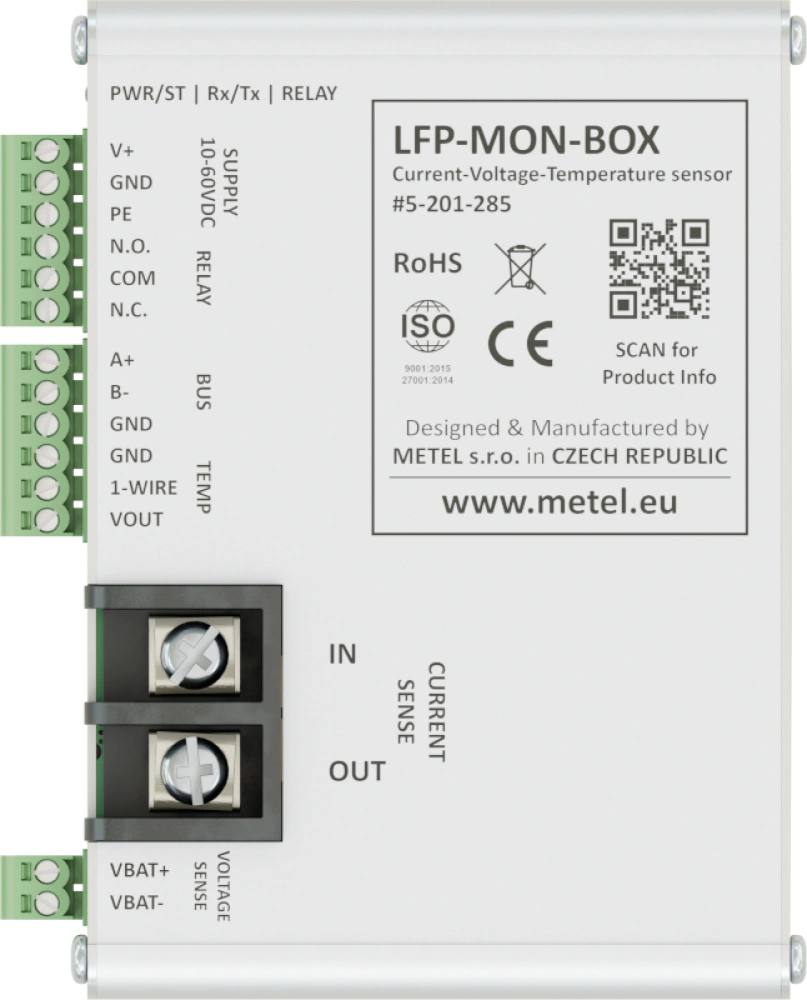

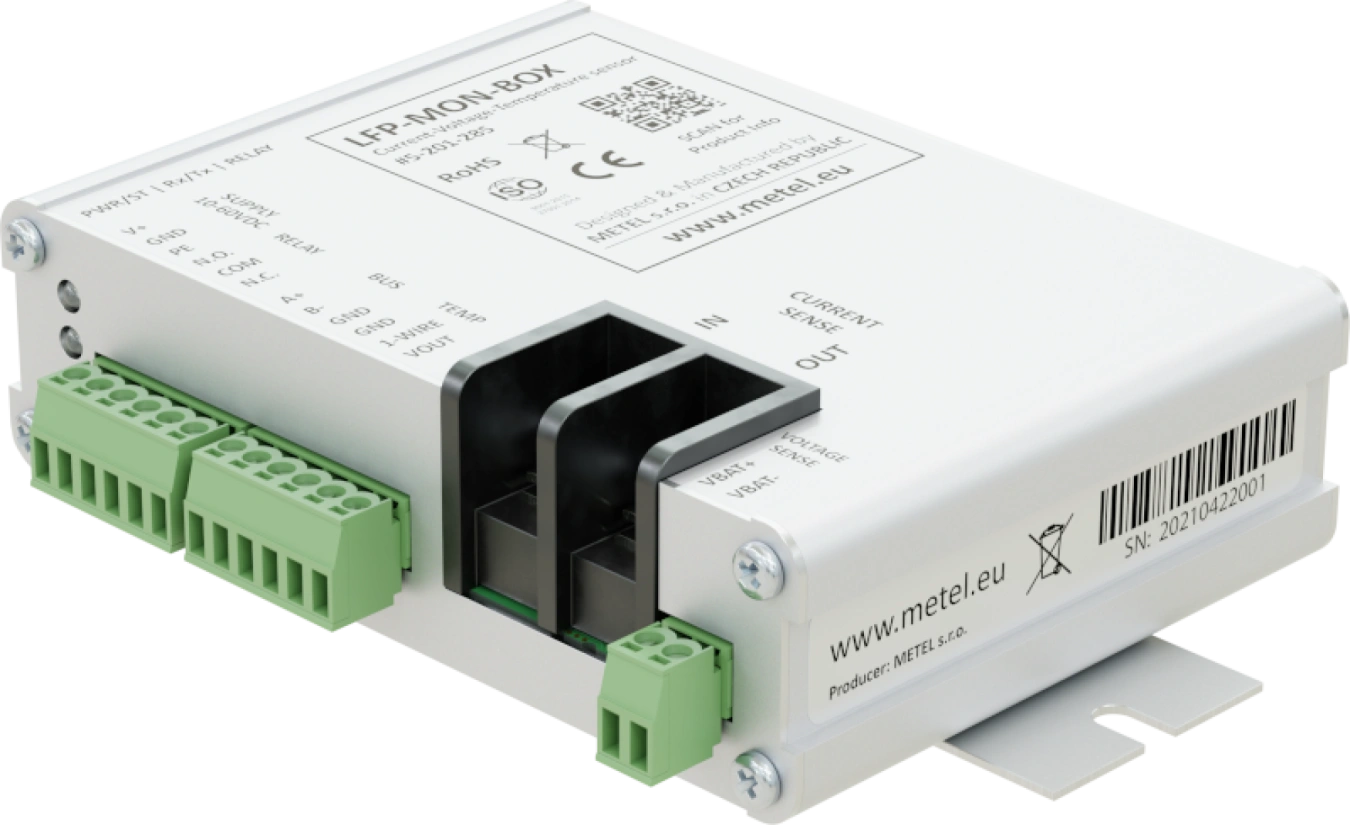

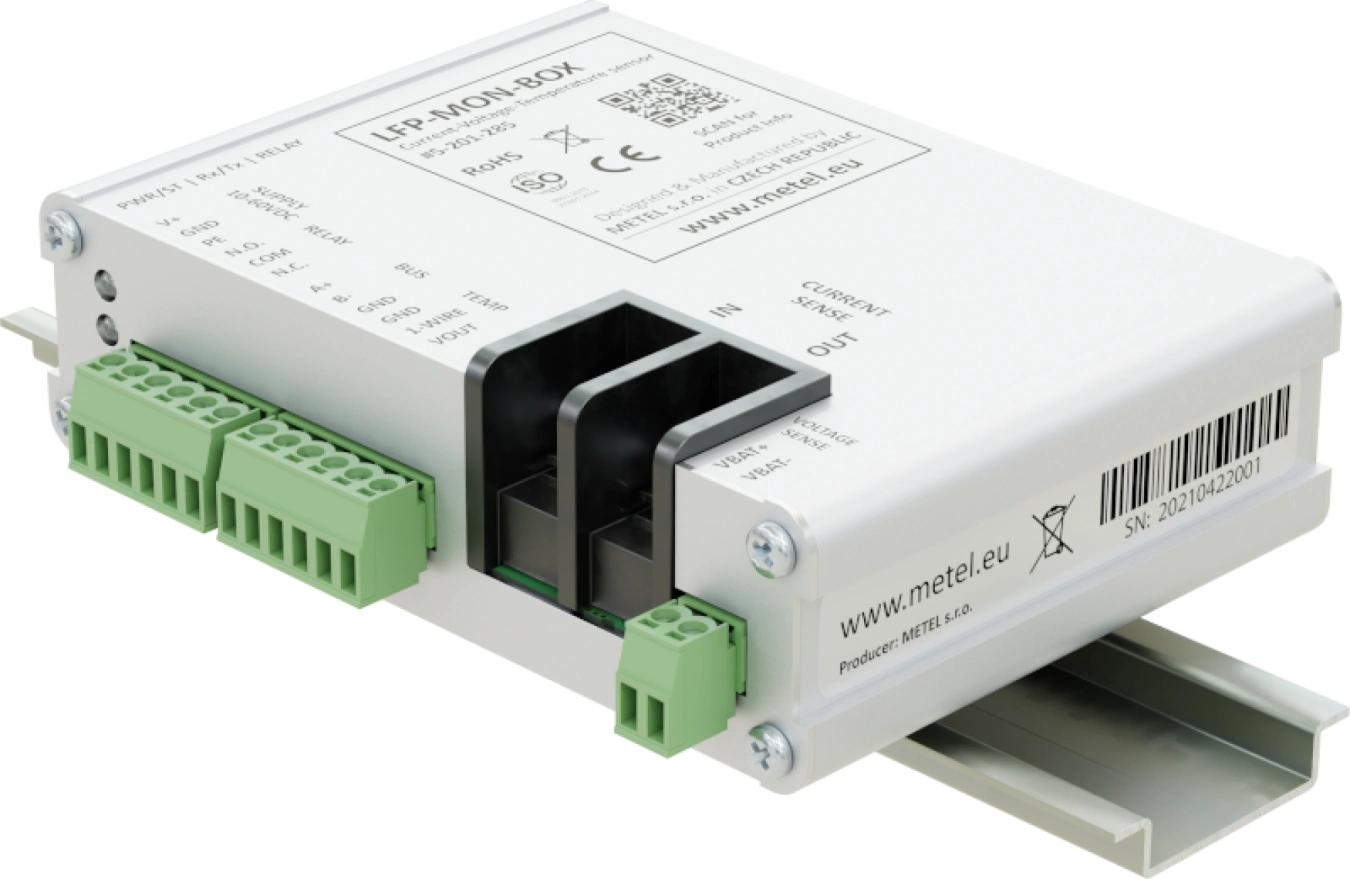

LFP-MON-BOX
Modbus-RTU unit for monitoring temperature, voltage and current of the battery. The 30 A measured current range allows use in a wide range of applications requiring online battery monitoring. An external digital 1-Wire temperature sensor is included for accurate current temperature information.
Order code: 5-201-285
Availability: Deploying into production
Specifications
LFP-MON
Short catalog Sheet (PDF)Technical parameters
| MEASUREMENT | |
|---|---|
| Current | Max. ± 30 A |
| Voltage | Max. 48 VDC |
| Temperature | -55...+125 °C, accuracy ±0.5 from -10 to +85 °C |
| RS485 (MODBUS-RTU) | |
|---|---|
| Modbus RTU | Compatible |
| Speed | max. 115200 bps |
| Surge protection | 600 W (10/1000 µs) |
| RELÉ OUTPUT | |
|---|---|
| Number of | 1 |
| Contact type | Switching |
| Max. Load | 62.5 VA (30 W) / 1 A / 60 V (resistive load) |
| POWER | |
|---|---|
| Input voltage range | 10 - 60 VDC |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -40...+75 °C |
| Storage temperature | -40...+75 °C |
| Humidity | Max. 100% (non-condensing) |
| MECHANICS | |
|---|---|
| Weight | 0,22 kg |
| IP protection | IP 30 |
