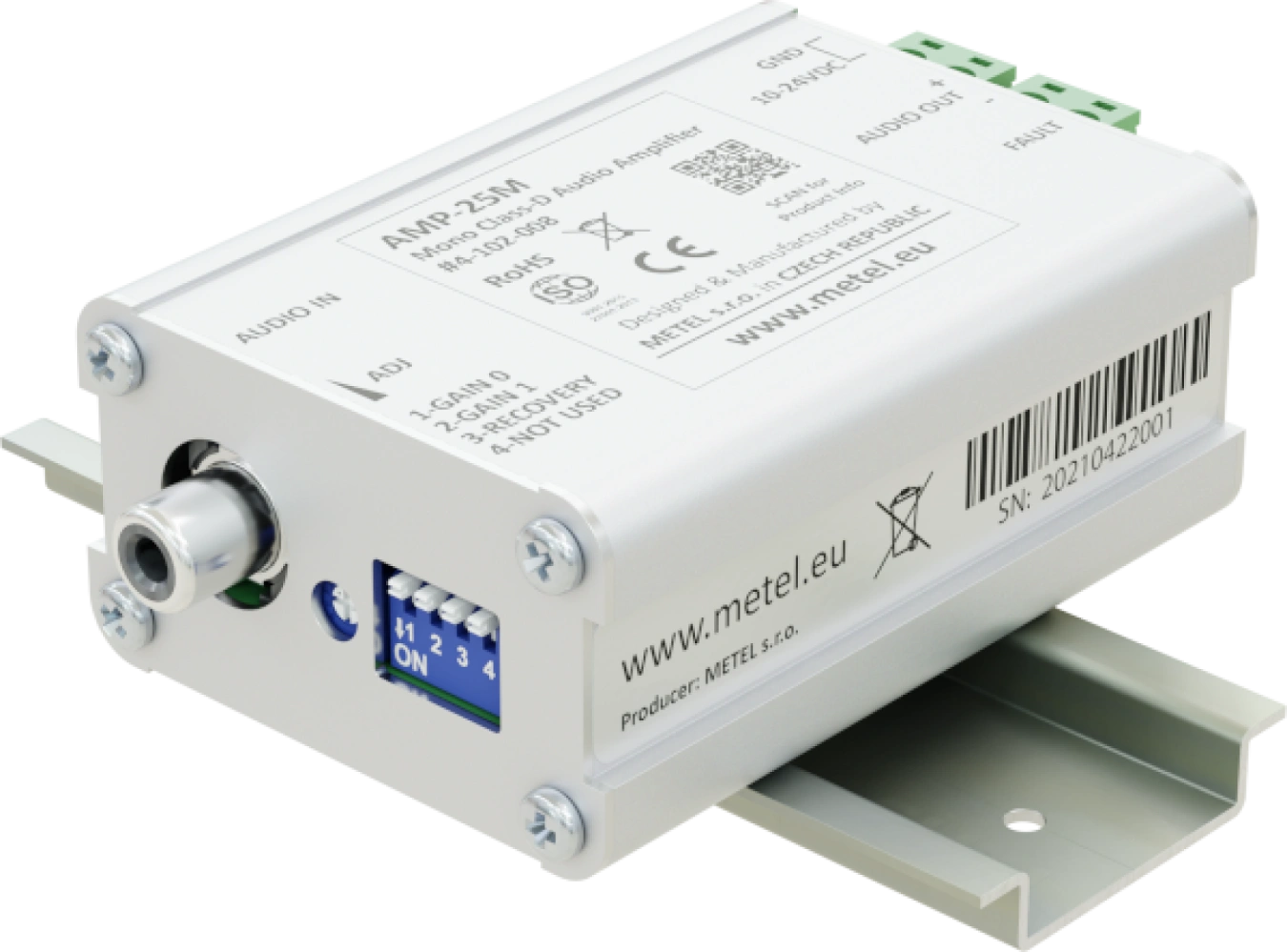

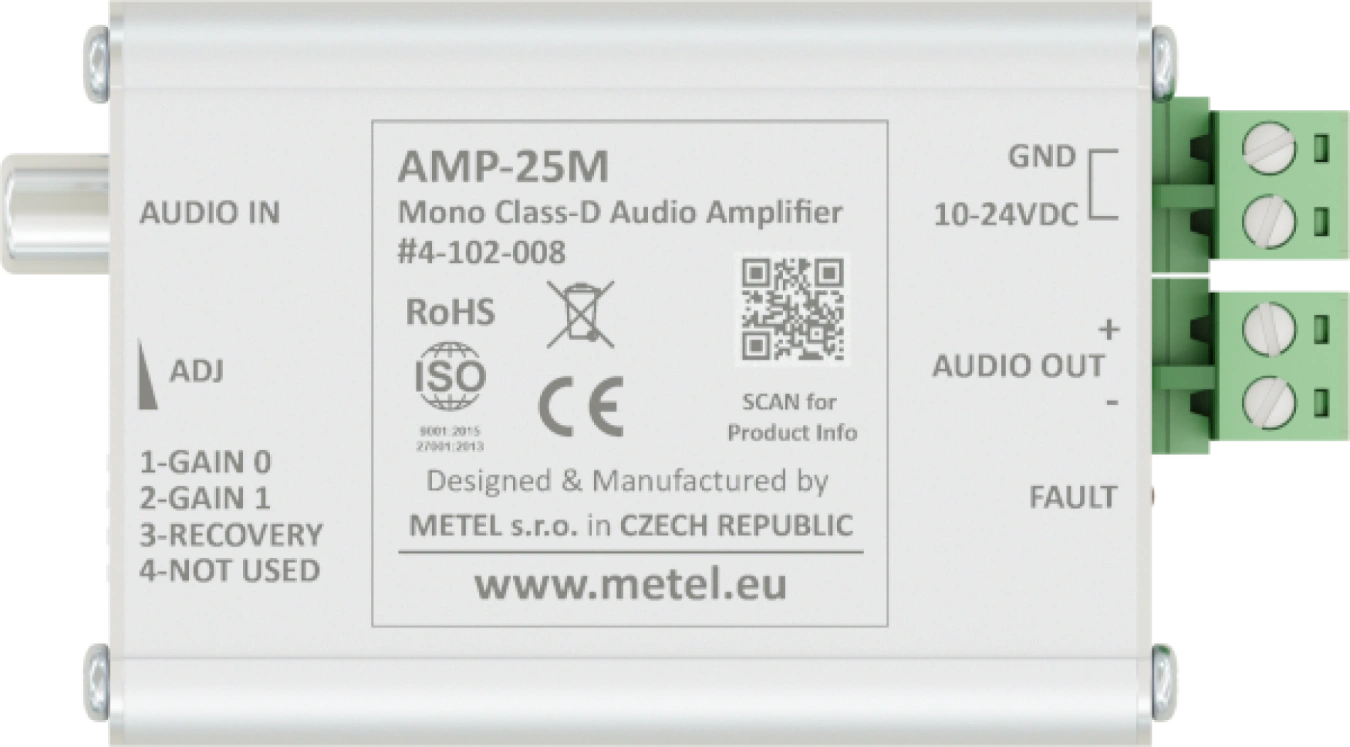

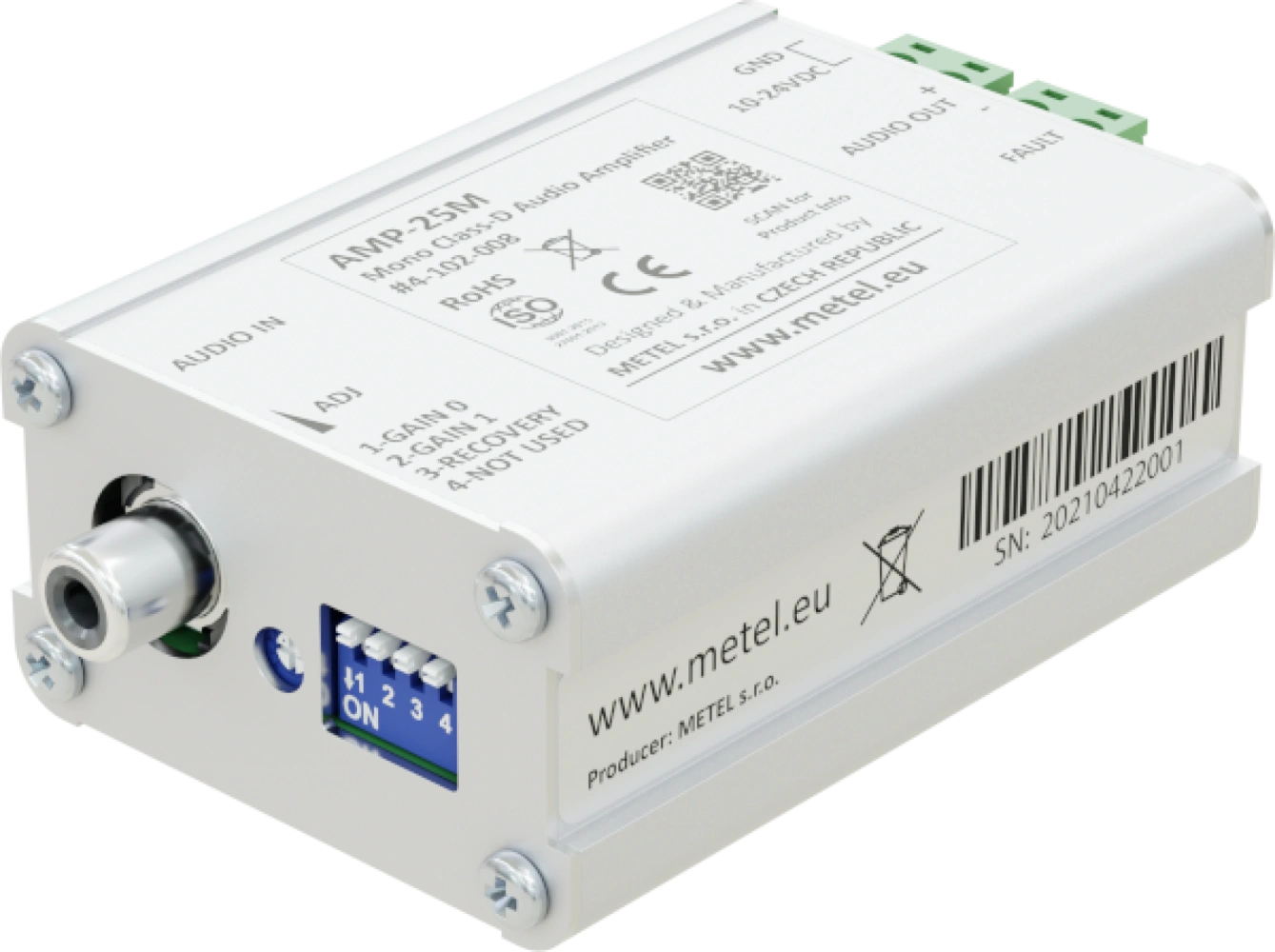

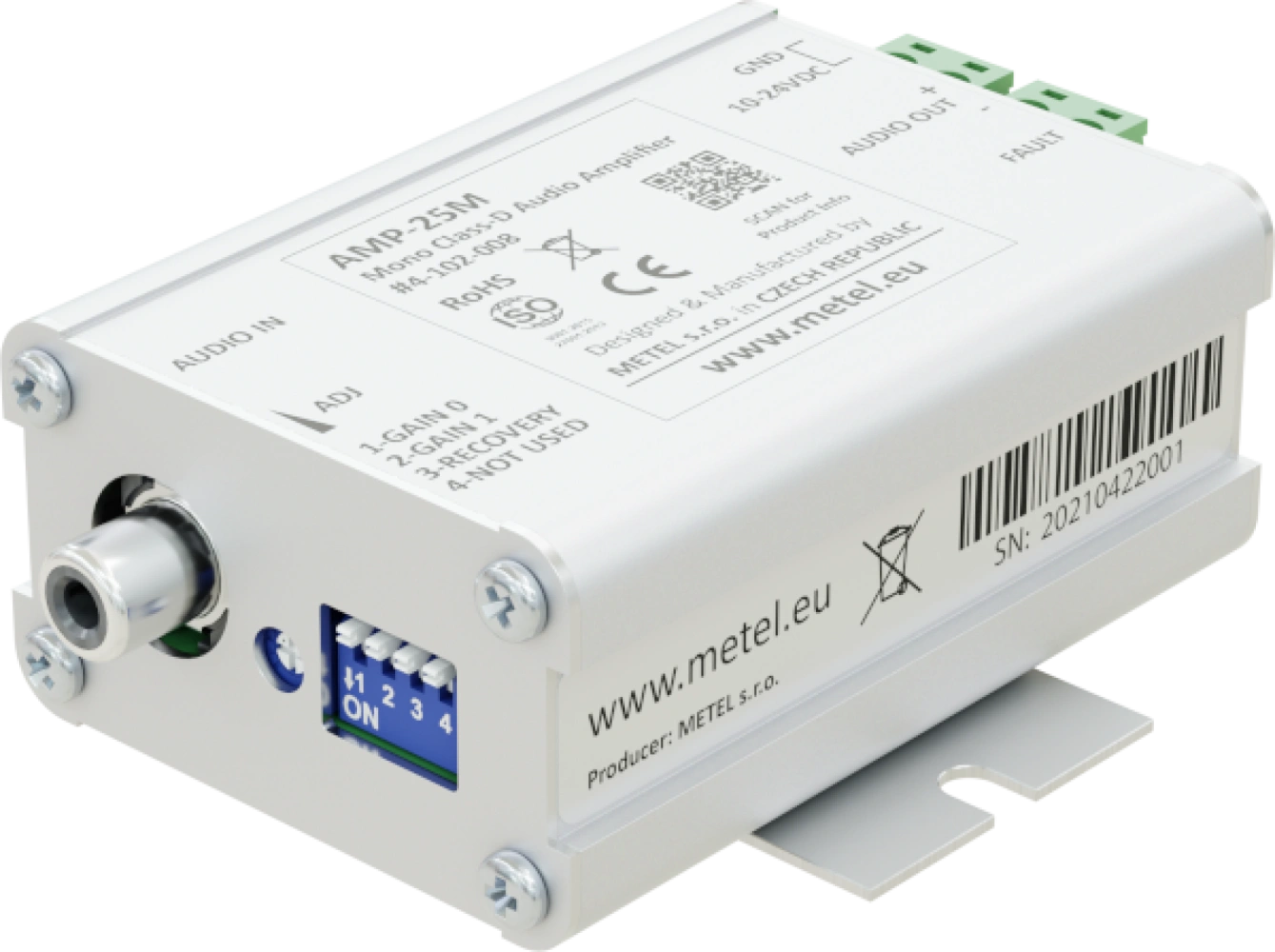

AMP-25-M
- Class-D amplifiers with 94% efficiency
- 25-W for an 8-Ω load at 24-VDC
- 20-W for a 4-Ω load at 12-VDC
- Passive cooling
Class D audio amplifiers are used when connecting IF-06 audio boards directly to loudspeakers. Typical applications are playing automatic reports from PLC memory and reports from remote control rooms.
Models
AMP-25-M
Class-D amplifiers with 94% efficiency, 25-W for 8-Ω load at 24-VDC, 20-W for 4-Ω load at 12-VDC, Passive cooling
Order code: 4-102-008
Availability: After-sales
Specifications
Technical parameters
| AUDIO | |
|---|---|
| Audio-input | Mono (CINCH) |
| Input impedance | 9 kΩ |
| Audio-output | 8Ω/25W (At 24VDC) (terminal block) |
| POWER | |
|---|---|
| Output voltage range | 12 - 24 VDC |
| Output Voltage for 24V | Max. 1.2 A (Output 25W) |
| ENVIRONMENT | |
|---|---|
| Operating temperature | –40...+70 °C (ambient temperature) |
| Storage temperature | –40...+70 °C |
| Humidity | Max. 95 % (non-condensing) |
| MECHANICAL | |
|---|---|
| Dimensions - h / w / d | 30.2 x 56.4 x 89 mm |
| Weight | 0.12 kg |
Standards and protocols, EMC and safety
| EMC and safety | ||
|---|---|---|
| EN 61000-6-2 | Immunity - industrial environment | |
| IEEE 1613 | Environmental and Testing Requirements | Electric Power Substations | |
| EN 55035 | EMC of multimedia devices - immunity requirements | |
| EN 55032 | EMC of multimedia devices - emission requirements | |
| EN 62368-1 | Safety requirements of Information technology equipment | |
| EN IEC 63000 | The Assessment Of Electrical And Electronic Products With Respect To The ROHS | |
| Standards and protocols | |
|---|---|
| Class | D |
